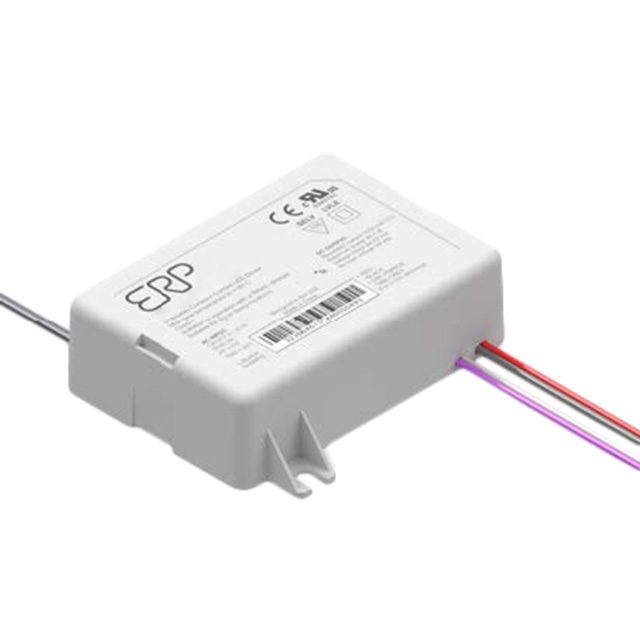

ESP050W-1200-42

ERP Power, LLC

AC/DC LED POWER SUPPLY 50.4W SINGLE 6-PIN

Search across all available documentation for this part.

ERP Power, LLC

AC/DC LED POWER SUPPLY 50.4W SINGLE 6-PIN

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 20.31
Digikey	Box	100	$ 29.08

General part information

1.2A 28 ~ 42V Constant Current LED Driver AC DC Converter Topology 1 Output

Technical documentation and resources

Parameters and characteristics commom to parts in this series

AC/DC LED POWER SUPPLY 44.8W SINGLE 6-PIN

Part	Dimming	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Max) [Max]	Termination Style	Voltage - Input (Min) [Min]	Number of Outputs	Voltage - Output [Min]	Voltage - Output [Max]	Efficiency	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Power (Watts)	Type	Ratings	Current - Output (Max) [Max]	Mounting Type	Approval Agency	Features	Weight	Weight	Topology
ERP Power, LLC ESP050W-1400-32	Analog, ELV, TRIAC	-30 ░C	90 °C	277 VAC	Wire Leads	120 VAC	1	21 V	32 VDC	87 %	1.07 "	27.2 mm	59.9 mm	2.36 "	3.43 in	87 mm	45 W	Constant Current	IP64, NEMA 410	1.4 A	Chassis Mount	CB, CE, cRUcs, cUL, FC, UL	OCP, OTP, SCP	222 g	0.489 lb	AC DC Converter
ERP Power, LLC ESP050W-1200-42	Analog, ELV, TRIAC	-30 ░C	90 °C	277 VAC	Wire Leads	120 VAC	1	28 V	42 V	87 %	1.07 "	27.2 mm	59.9 mm	2.36 "	3.43 in	87 mm	50 W	Constant Current	IP64, NEMA 410	1.2 A	Chassis Mount	CB, CE, cRUcs, cUL, FC, UL	OCP, OTP, SCP	222 g	0.489 lb	AC DC Converter
ERP Power, LLC ESP050W-1400-34	Analog, ELV, TRIAC	-30 ░C	90 °C	277 VAC	Wire Leads	120 VAC	1	23 V	34 V	87 %	1.07 "	27.2 mm	59.9 mm	2.36 "	3.43 in	87 mm	48 W	Constant Current	IP64, NEMA 410	1.4 A	Chassis Mount	CB, CE, cRUcs, cUL, FC, UL	OCP, OTP, SCP	222 g	0.489 lb	AC DC Converter
ERP Power, LLC ESP050W-1050-42	Analog, ELV, TRIAC	-30 ░C	90 °C	277 VAC	Wire Leads	120 VAC	1	28 V	42 V	87 %	1.07 "	27.2 mm	59.9 mm	2.36 "	3.43 in	87 mm	44 W	Constant Current	IP64, NEMA 410	1.05 A	Chassis Mount	CB, CE, cRUcs, cUL, FC, UL	OCP, OTP, SCP	222 g	0.489 lb	AC DC Converter
