LEMO

CONTACT PIN 20-24AWG CRIMP GOLD

Search across all available documentation for this part.

Active

LEMO

CONTACT PIN 20-24AWG CRIMP GOLD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

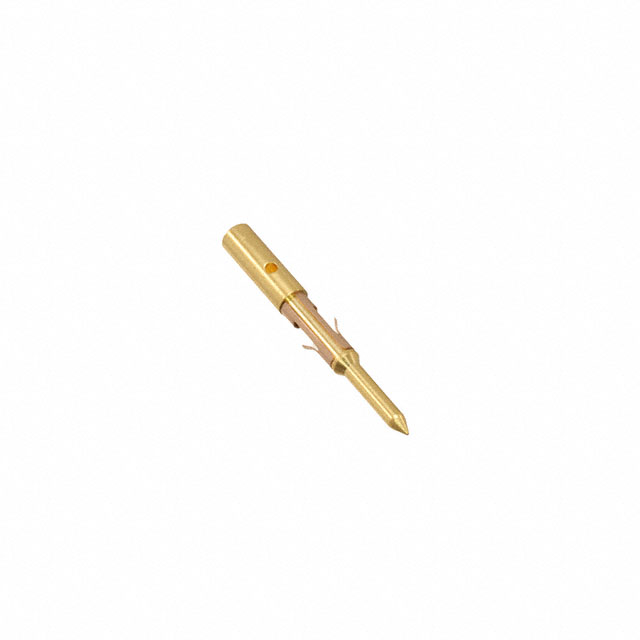

Pin Contact 20-24 AWG Size 0.9mm Crimp Gold

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	FGN.0M.560.ZZC	FGN.0M Series

Applications	-	Military, Aerospace, Automotive, Aviation
Cable Opening	-	8 mm
Cable Opening	-	0.315 in
Color	-	Gray
Connector Type	-	Plug, Male Pins
Contact Finish	Gold	Gold
Contact Finish - Mating	-	Gold
Contact Finish Thickness	39.4 Áin	39.4 Áin
Contact Finish Thickness	1 Ám	1 Ám
Contact Finish Thickness - Mating	-	1 µm
Contact Finish Thickness - Mating	-	39.4 µin
Contact Material	Brass	Brass
Contact Size	0.9 mm	0.9 mm
Contact Termination	Crimp	Crimp
Contact Type	Pin	Pin
Current Rating (Amps)	-	10 A
Features	-	Coupling Nut
Ingress Protection	-	IP68 - Dust Tight, Waterproof
Insert Material	-	Polyetheretherketone (PEEK)
Mounting Type	-	Free Hanging (In-Line)
Number of Positions	-	2
Operating Temperature	-	-55 °C
Operating Temperature	-	200 °C
Orientation	-	N
Primary Material	-	Metal
Shell Finish	-	Nickel
Shell Material	-	Aluminum Alloy
Shell Size - Insert	-	302
Shielding	-	Shielded
Termination	-	Crimp
Type	Signal, Machined	Signal, Machined
Wire Gauge or Range - AWG [Max]	24 AWG	24 AWG
Wire Gauge or Range - AWG [Min]	20 AWG	20 AWG

CONTACT PIN 20-24AWG CRIMP GOLD

Part	Contact Finish	Contact Size	Contact Material	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Contact Finish Thickness	Contact Finish Thickness	Contact Termination	Contact Type	Type	Shell Material	Shell Finish	Insert Material	Number of Positions	Termination	Mounting Type	Connector Type	Features	Current Rating (Amps)	Color	Shell Size - Insert	Applications	Primary Material	Orientation	Cable Opening [diameter]	Cable Opening [diameter]	Ingress Protection	Shielding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating
LEMO FGN.0M.560.ZZC	Gold	0.9 mm	Brass	24 AWG	20 AWG	39.4 Áin	1 Ám	Crimp	Pin	Machined, Signal
LEMO FGN.0M.302.XLC			Brass								Aluminum Alloy	Nickel	Polyetheretherketone (PEEK)	2	Crimp	Free Hanging (In-Line)	Male Pins, Plug	Coupling Nut	10 A	Gray	302	Aerospace, Automotive, Aviation, Military	Metal	N	8 mm	0.315 in	IP68 - Dust Tight, Waterproof	Shielded	1 µm	39.4 µin	-55 °C	200 °C	Gold
