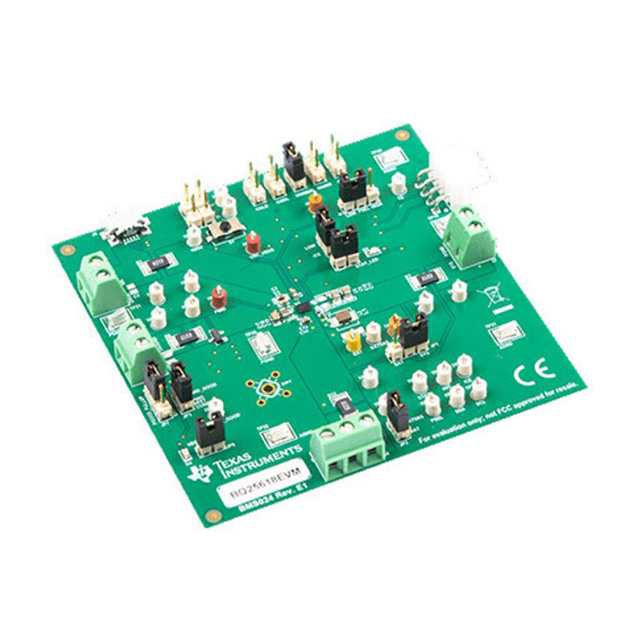

BQ25618EVM
ActiveEVAL BOARD POWER MANAGERMENT
Deep-Dive with AI
Search across all available documentation for this part.
BQ25618EVM
ActiveEVAL BOARD POWER MANAGERMENT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BQ25618EVM | BQ25618 Series |
|---|---|---|
| Battery Chemistry | - | Lithium Ion/Polymer |
| Battery Pack Voltage | - | 4.52 V |
| Charge Current - Max | - | 1.5 A |
| Current - Charging | - | Constant - Programmable |
| Fault Protection | - | Over Voltage, Over Current |
| Function | Battery Charger | Battery Charger |
| Interface | - | I2C |
| Mounting Type | - | Surface Mount |
| Number of Cells | - | 1 |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 30-UFBGA, DSBGA |
| Programmable Features | - | Current, Timer, Voltage |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 30-DSBGA |
| Type | Power Management | Power Management |
| Utilized IC / Part | BQ25618 | BQ25618 |
| Voltage - Supply (Max) | - | 13.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 118.80 | |
BQ25618 Series
I2C controlled 1.5-A single cell buck battery charger with 20-mA termination and 1-A boost in WCSP
| Part | Battery Pack Voltage | Package / Case | Charge Current - Max [Max] | Voltage - Supply (Max) [Max] | Supplier Device Package | Operating Temperature [Max] | Operating Temperature [Min] | Number of Cells | Current - Charging | Interface | Mounting Type | Battery Chemistry | Programmable Features | Fault Protection | Function | Utilized IC / Part | Supplied Contents | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments BQ25618YFFR | 4.52 V | 30-UFBGA, DSBGA | 1.5 A | 13.5 V | 30-DSBGA | 85 °C | -40 °C | 1 | Constant - Programmable | I2C | Surface Mount | Lithium Ion/Polymer | Current, Timer, Voltage | Over Current, Over Voltage | ||||
Texas Instruments BQ25618EVM | Battery Charger | BQ25618 | Board(s) | Power Management |
Description
General part information
BQ25618 Series
The BQ25618/619 integrates charge, boost converter and voltage protection in a single device. It offers the industry’s lowest termination current for switching chargers to charge wearable devices by full battery capacity. The BQ25618/619 best-in-class low quiescent current reduces battery leakage down to 6uA in Ship mode, which conserves battery energy to double the shelf life for the device. The BQ25619 is in a 4mm × 4mm QFN package for easy layout. The BQ25618 is in a 2.0mm × 2.4mm WCSP package for space limited design.
The BQ25618/619 integrates charge, boost converter and voltage protection in a single device. It offers the industry’s lowest termination current for switching chargers to charge wearable devices by full battery capacity. The BQ25618/619 best-in-class low quiescent current reduces battery leakage down to 6uA in Ship mode, which conserves battery energy to double the shelf life for the device. The BQ25619 is in a 4mm × 4mm QFN package for easy layout. The BQ25618 is in a 2.0mm × 2.4mm WCSP package for space limited design.
