158216-0220-HF625/16-D-3
Active3M

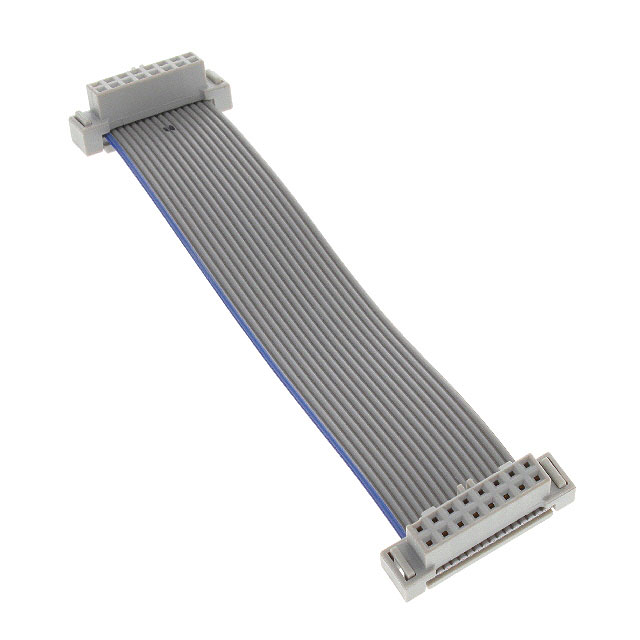

CABLE 16POS SOCKET TO SOCKET 3"
Deep-Dive with AI
Search across all available documentation for this part.
158216-0220-HF625/16-D-3
Active3M
CABLE 16POS SOCKET TO SOCKET 3"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 158216-0220-HF625/16-D-3 | 158216 Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Connector Type | Socket to Socket | Socket to Socket |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Length | 3 " | 3 - 6 " |
| Length | 76.2 mm | 76.2 - 152.4 mm |
| Length | 0.25 ft | 0.25 ft |
| Length | - | 0.5 ' |
| Number of Positions | 16 | 16 |
| Number of Rows | 2 | 2 |
| Pitch - Cable | 1 mm | 1 mm |
| Pitch - Cable [custom] | 0.039 " | 0.039 " |
| Pitch - Connector | 2 mm | 2 mm |
| Pitch - Connector | 0.079 in | 0.079 in |
| Shielding | Unshielded | Unshielded |
158216 Series
CABLE 16POS SOCKET TO SOCKET 6"
| Part | Pitch - Cable | Pitch - Cable [custom] | Number of Positions | Pitch - Connector | Pitch - Connector | Cable Termination | Length | Length | Length | Shielding | Connector Type | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Number of Rows | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1 mm | 0.039 " | 16 | 2 mm | 0.079 in | IDC | 152.4 mm | 6 " | 0.5 ' | Unshielded | Socket to Socket | 0.76 Ám | 30 Áin | Gold | 2 | ||
1 mm | 0.039 " | 16 | 2 mm | 0.079 in | IDC | 76.2 mm | 3 " | Unshielded | Socket to Socket | 0.76 Ám | 30 Áin | Gold | 2 | 0.25 ft | ||
1 mm | 0.039 " | 16 | 2 mm | 0.079 in | IDC | 76.2 mm | 3 " | Unshielded | Socket to Socket | 0.76 Ám | 30 Áin | Gold | 2 | 0.25 ft |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
158216 Series
16 Position Cable Assembly Rectangular Socket to Socket 0.250' (76.20mm, 3.00")
