158216-0220-3625/16-D-6

Active

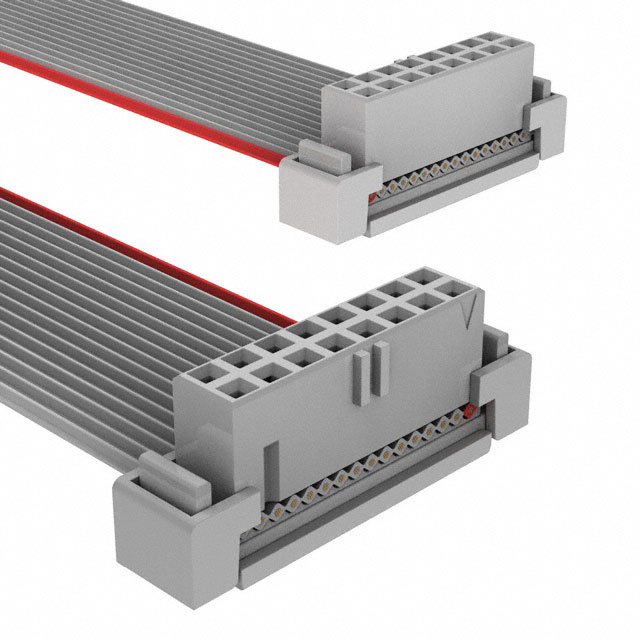

CABLE 16POS SOCKET TO SOCKET 6"

Search across all available documentation for this part.

Active

CABLE 16POS SOCKET TO SOCKET 6"

Technical Specifications

Parameters and characteristics commom to parts in this series

CABLE 16POS SOCKET TO SOCKET 6"

Part	Pitch - Cable	Pitch - Cable [custom]	Number of Positions	Pitch - Connector	Pitch - Connector	Cable Termination	Length	Length	Length	Shielding	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Number of Rows	Length
3M 158216-0220-3625/16-D-6	1 mm	0.039 "	16	2 mm	0.079 in	IDC	152.4 mm	6 "	0.5 '	Unshielded	Socket to Socket	0.76 Ám	30 Áin	Gold	2
3M 158216-0220-3625/16-D-3	1 mm	0.039 "	16	2 mm	0.079 in	IDC	76.2 mm	3 "		Unshielded	Socket to Socket	0.76 Ám	30 Áin	Gold	2	0.25 ft
3M 158216-0220-HF625/16-D-3	1 mm	0.039 "	16	2 mm	0.079 in	IDC	76.2 mm	3 "		Unshielded	Socket to Socket	0.76 Ám	30 Áin	Gold	2	0.25 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

16 Position Cable Assembly Rectangular Socket to Socket 0.500' (152.40mm, 6.00")

Technical documentation and resources
