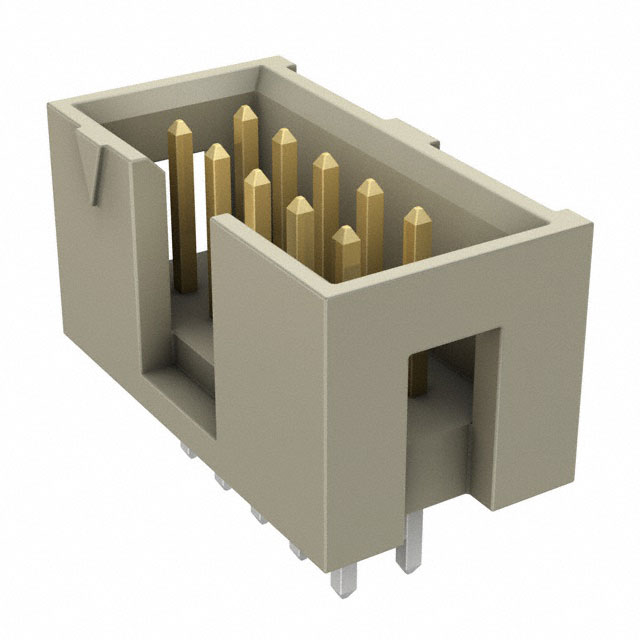

HTST-105-01-S-D

Active

Samtec Inc.

CONN HEADER VERT 10POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet .100" High-Temp Shrouded Terminal Strip, Cable Mate +1

HTST-105-01-S-D

Active

Samtec Inc.

CONN HEADER VERT 10POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet .100" High-Temp Shrouded Terminal Strip, Cable Mate +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HTST-105-01-S-D

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Length - Mating	6.35 mm
Contact Length - Mating	0.25 in
Contact Length - Post	2.92 mm
Contact Length - Post	0.115 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Natural
Insulation Height [custom]	0.35 in
Insulation Height [custom]	8.89 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	0.48 in
Overall Contact Length	12.19 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

HTST-105 Series

Part	Insulation Color	Pitch - Mating	Pitch - Mating	Contact Length - Mating	Contact Length - Mating	Number of Rows	Insulation Material	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Contact Shape	Overall Contact Length	Overall Contact Length	Features	Contact Material	Mounting Type	Insulation Height [custom]	Insulation Height [custom]	Number of Positions Loaded	Number of Positions	Contact Length - Post	Contact Length - Post	Shrouding	Contact Finish - Post	Fastening Type	Material Flammability Rating	Connector Type	Contact Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Style	Insulation Height	Insulation Height	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
Samtec Inc. HTST-105-01-T-D	Natural	0.1 in	2.54 mm	6.35 mm	0.25 in	2	Liquid Crystal Polymer (LCP)	Solder	105 ░C	-55 °C	Square	0.48 in	12.19 mm	Keying Slot	Phosphor Bronze	Through Hole	0.35 in	8.89 mm	All	10	2.92 mm	0.115 in	Shrouded - 4 Wall	Tin	Push-Pull	UL94 V-0	Header	Male Pin	2.54 mm	0.1 in	Board to Cable/Wire
Samtec Inc. HTST-105-04-S-D-RA	Natural	0.1 in	2.54 mm	6.35 mm	0.25 in	2	Liquid Crystal Polymer (LCP)	Solder	125 °C	-55 °C	Square			Keying Slot	Phosphor Bronze	Through Hole Right Angle			All	10	3.3 mm	0.13 in	Shrouded - 4 Wall	Tin	Push-Pull	UL94 V-0	Header	Male Pin	2.54 mm	0.1 in	Board to Cable/Wire	0.365 in	9.27 mm	Gold	30 Áin	0.76 Ám
Samtec Inc. HTST-105-01-L-DV-07
Samtec Inc. HTST-105-01-L-DV-09-P-TR
Samtec Inc. HTST-105-01-F-DV-P-TR	Natural	0.1 in	2.54 mm	6.35 mm	0.25 in	2	Liquid Crystal Polymer (LCP)	Solder	125 °C	-55 °C	Square			Keying Slot Pick and Place	Phosphor Bronze	Surface Mount	0.35 in	8.89 mm	All	10			Shrouded - 4 Wall	Tin	Push-Pull	UL94 V-0	Header	Male Pin	2.54 mm	0.1 in	Board to Cable/Wire			Gold	3 µin	0.076 µm
Samtec Inc. HTST-105-01-SM-DV-A	Natural	0.1 in	2.54 mm	6.35 mm	0.25 in	2	Liquid Crystal Polymer (LCP)	Solder	125 °C	-55 °C	Square			Board Guide Keying Slot	Phosphor Bronze	Surface Mount	0.35 in	8.89 mm	All	10			Shrouded - 4 Wall	Tin	Push-Pull	UL94 V-0	Header	Male Pin	2.54 mm	0.1 in	Board to Cable/Wire			Gold	30 Áin	0.76 Ám
Samtec Inc. HTST-105-04-L-D-RA	Natural	0.1 in	2.54 mm	6.35 mm	0.25 in	2	Liquid Crystal Polymer (LCP)	Solder	125 °C	-55 °C	Square			Keying Slot	Phosphor Bronze	Through Hole Right Angle			All	10	3.3 mm	0.13 in	Shrouded - 4 Wall	Tin	Push-Pull	UL94 V-0	Header	Male Pin	2.54 mm	0.1 in	Board to Cable/Wire	0.365 in	9.27 mm	Gold	10 çin	0.25 çm
Samtec Inc. HTST-105-01-S-D	Natural	0.1 in	2.54 mm	6.35 mm	0.25 in	2	Liquid Crystal Polymer (LCP)	Solder	125 °C	-55 °C	Square	0.48 in	12.19 mm	Keying Slot	Phosphor Bronze	Through Hole	0.35 in	8.89 mm	All	10	2.92 mm	0.115 in	Shrouded - 4 Wall	Tin	Push-Pull	UL94 V-0	Header	Male Pin	2.54 mm	0.1 in	Board to Cable/Wire			Gold	30 Áin	0.76 Ám
Samtec Inc. HTST-105-01-SM-DV-TR	Natural	0.1 in	2.54 mm	6.35 mm	0.25 in	2	Liquid Crystal Polymer (LCP)	Solder	125 °C	-55 °C	Square			Keying Slot	Phosphor Bronze	Surface Mount	0.35 in	8.89 mm	All	10			Shrouded - 4 Wall	Tin	Push-Pull	UL94 V-0	Header	Male Pin	2.54 mm	0.1 in	Board to Cable/Wire			Gold	30 Áin	0.76 Ám
Samtec Inc. HTST-105-01-S-DV-A	Natural	0.1 in	2.54 mm	6.35 mm	0.25 in	2	Liquid Crystal Polymer (LCP)	Solder	125 °C	-55 °C	Square			Board Guide Keying Slot	Phosphor Bronze	Surface Mount	0.35 in	8.89 mm	All	10			Shrouded - 4 Wall	Tin	Push-Pull	UL94 V-0	Header	Male Pin	2.54 mm	0.1 in	Board to Cable/Wire			Gold	30 Áin	0.76 Ám

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.13
		10	$ 4.70
		100	$ 3.64
		500	$ 3.08
		1000	$ 2.88
