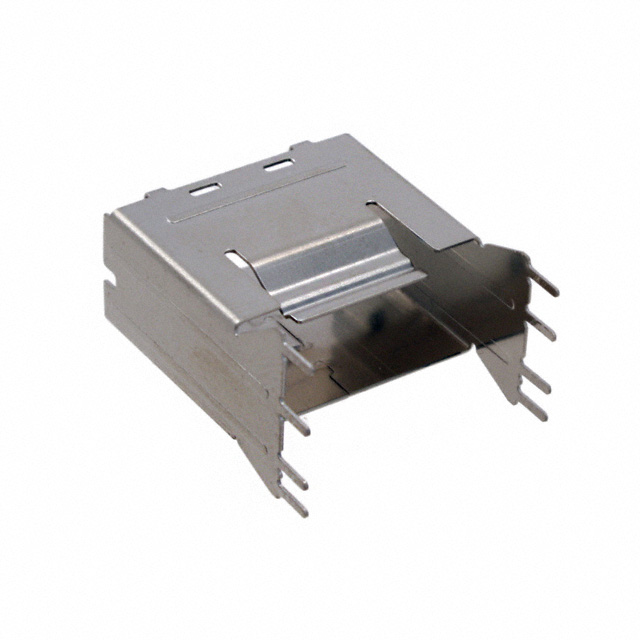

8B36-1420

Obsolete

3M (TC)

CONN BACKSHELL FOR MINISAS CONN

Search across all available documentation for this part.

Obsolete

3M (TC)

CONN BACKSHELL FOR MINISAS CONN

Technical Specifications

Parameters and characteristics for this part

Specification	8B36-1420

Accessory Type	Backshell
For Use With/Related Products	miniSAS Connectors

Part	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Termination	Connector Style	Features	Number of Positions	Mounting Type	For Use With/Related Products	Accessory Type
3M (TC) 8B36-2430	Gold	0.76 Ám	30 Áin	Mini SAS	Solder	Receptacle	Board Guide Keyed	36	Surface Mount Right Angle
3M (TC) 8B36-2412	Gold	0.76 Ám	30 Áin	Mini SAS	Press-Fit	Receptacle	Board Guide Keyed	36	Through Hole Right Angle
3M (TC) 8B36-1420										miniSAS Connectors	Backshell

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Connector Backshell For miniSAS Connectors

Technical documentation and resources
