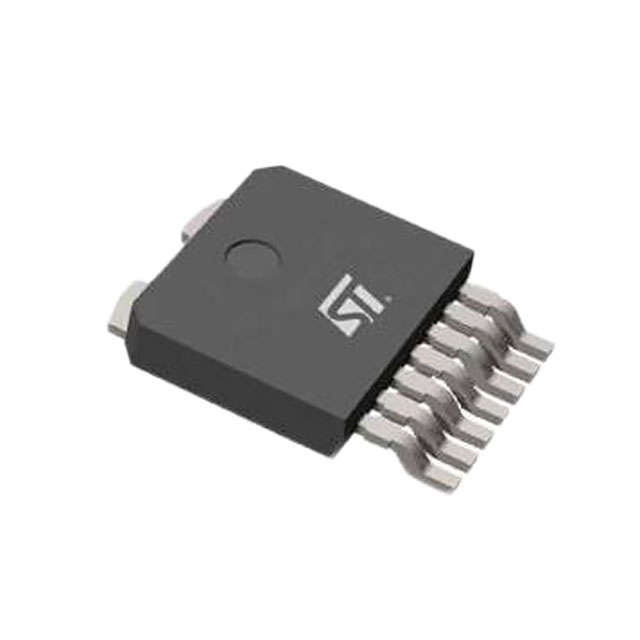

VN7007ALHTR
ActiveCURRENT LIMIT SW 1-IN 1-OUT 4V TO 28V 140A AUTOMOTIVE AEC-Q100 8-PIN(7+TAB) OCTAPAK T/R
Deep-Dive with AI
Search across all available documentation for this part.
VN7007ALHTR
ActiveCURRENT LIMIT SW 1-IN 1-OUT 4V TO 28V 140A AUTOMOTIVE AEC-Q100 8-PIN(7+TAB) OCTAPAK T/R
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | VN7007ALHTR | VN7007 Series |
|---|---|---|
| - | - | |
| Current - Output (Max) [Max] | 100 A | 100 - 135 A |
| Fault Protection | Open Load Detect, Current Limiting (Fixed), Over Temperature, UVLO, Over Voltage | Open Load Detect, Current Limiting (Fixed), Over Temperature, UVLO, Over Voltage, Reverse Current, Current Limiting (Adjustable) |
| Features | Auto Restart | Auto Restart, Load Discharge, Status Flag |
| Grade | Automotive | Automotive |
| Input Type | Non-Inverting | Non-Inverting |
| Interface | On/Off | On/Off, Logic |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 150 °C | 150 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output Configuration | High Side | High Side |
| Output Type | N-Channel | N-Channel |
| Package / Case | OctaPAK (7 Leads + Tab) | OctaPAK (7 Leads + Tab) |
| Qualification | AEC-Q100 | AEC-Q100 |
| Ratio - Input:Output [custom] | 1:1 | 1:1 |
| Rds On (Typ) | 7 mOhm | 4 - 7 mOhm |
| Supplier Device Package | OctaPAK 7+1 | OctaPAK 7+1 |
| Switch Type | General Purpose | General Purpose |
| Voltage - Load [Max] | 28 V | 28 V |
| Voltage - Load [Min] | 4 V | 4 V |
| Voltage - Supply (Vcc/Vdd) | False | False |
| Voltage - Supply (Vcc/Vdd) | - | 28 V |
| Voltage - Supply (Vcc/Vdd) | - | 4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Arrow | N/A | 2500 | $ 1.58 | |
| 5000 | $ 1.52 | |||
| Digikey | Cut Tape (CT) | 1 | $ 3.48 | |
| 10 | $ 3.12 | |||
| 25 | $ 2.95 | |||
| 100 | $ 2.56 | |||
| 250 | $ 2.43 | |||
| 500 | $ 2.18 | |||
| 1000 | $ 1.84 | |||
| Digi-Reel® | 1 | $ 3.48 | ||
| 10 | $ 3.12 | |||
| 25 | $ 2.95 | |||
| 100 | $ 2.56 | |||
| 250 | $ 2.43 | |||
| 500 | $ 2.18 | |||
| 1000 | $ 1.84 | |||
| Tape & Reel (TR) | 2500 | $ 1.74 | ||
| 5000 | $ 1.68 | |||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 4.24 | |
| 10 | $ 3.42 | |||
| 25 | $ 3.21 | |||
| 50 | $ 3.10 | |||
| 100 | $ 2.98 | |||
| 250 | $ 2.87 | |||
| 500 | $ 2.81 | |||
| 1000 | $ 2.75 | |||
VN7007 Series
High-side driver with CurrentSense analog feedback for Seat Heating automotive applications
| Part | Package / Case | Qualification | Number of Outputs | Switch Type | Input Type | Fault Protection | Ratio - Input:Output [custom] | Current - Output (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Features | Supplier Device Package | Grade | Voltage - Supply (Vcc/Vdd) | Output Configuration | Rds On (Typ) | Interface | Output Type | Mounting Type | Voltage - Load [Min] | Voltage - Load [Max] | Voltage - Supply (Vcc/Vdd) [Max] | Voltage - Supply (Vcc/Vdd) [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics VN7004SLHTR | |||||||||||||||||||||||
STMicroelectronics VN7007ALHTR | |||||||||||||||||||||||
STMicroelectronics VN7007ALHTR | |||||||||||||||||||||||
STMicroelectronics VN7004SLHTR | |||||||||||||||||||||||
STMicroelectronics VN7007ALHTR | OctaPAK (7 Leads + Tab) | AEC-Q100 | 1 | General Purpose | Non-Inverting | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, UVLO | 1:1 | 100 A | 150 °C | -40 °C | Auto Restart | OctaPAK 7+1 | Automotive | High Side | 7 mOhm | On/Off | N-Channel | Surface Mount | 4 V | 28 V | |||
STMicroelectronics VN7007ALHTR | |||||||||||||||||||||||
STMicroelectronics VN7004SLHTR | OctaPAK (7 Leads + Tab) | 1 | General Purpose | Non-Inverting | Current Limiting (Adjustable), Open Load Detect, Over Temperature, Over Voltage, Reverse Current, UVLO | 1:1 | 135 A | 150 °C | -40 °C | Load Discharge, Status Flag | OctaPAK 7+1 | High Side | 4 mOhm | Logic | N-Channel | Surface Mount | 28 V | 4 V | |||||
STMicroelectronics VN7007ALHTR |
Description
General part information
VN7007 Series
The device is a single channel high-side driver manufactured using ST proprietary VIPower technology and housed in the Octapak package. The device is designed to drive 12 V automotive grounded loads through a 3 V and 5 V CMOS-compatible interface, and to provide protection and diagnostics.
The device integrates advanced protective functions such as load current limitation, overload active management by power limitation and overtemperature shutdown.
A combination of INPUT and FR_DIAG pins latches the output in case of fault, disables the latch-off functionality and enables OFF-state diagnostic.
