P50-050P-RR1-EA

Active

3M (TC)

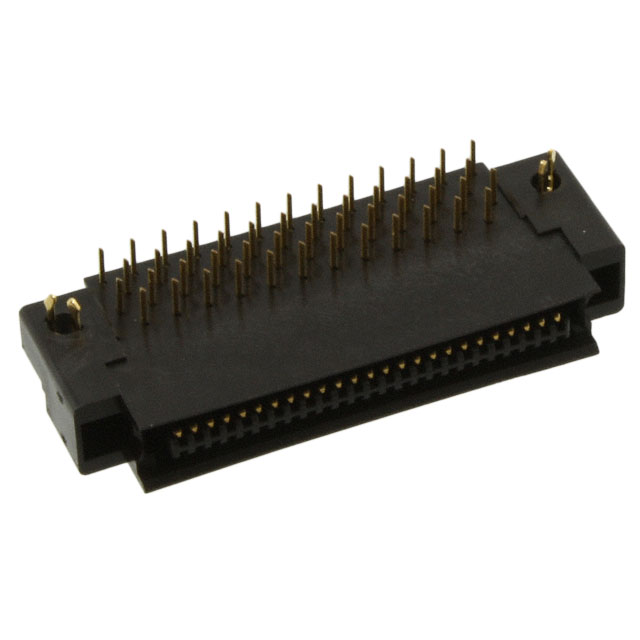

CONN RECTANGULAR PIN 50 POS 2.54MM SOLDER RA THRU-HOLE BOX

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsInterconnect Mating Guide Datasheet

P50-050P-RR1-EA

Active

3M (TC)

CONN RECTANGULAR PIN 50 POS 2.54MM SOLDER RA THRU-HOLE BOX

Deep-Dive with AI

DocumentsInterconnect Mating Guide Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	P50-050P-RR1-EA

Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Flange, Board Lock
Height Above Board	0.275 in
Height Above Board	6.99 mm
Mounting Type	Through Hole, Right Angle
Number of Positions	50
Number of Rows	2
Pitch [x]	0.05 in
Pitch [x]	1.27 mm

P50 Series

Part	Height Above Board	Height Above Board	Number of Positions	Contact Finish	Features	Connector Type	Mounting Type	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Height Above Board	Termination	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Insulation Color	Contact Finish Thickness - Post	Insulation Material	Contact Finish - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Shrouding	Contact Material	Fastening Type	Material Flammability Rating	Insulation Height [z]	Insulation Height [z]	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Style
3M (TC) P50-030S-RR1-TG	0.275 in	6.99 mm	30	Gold	Board Lock Flange	Outer Shroud Contacts Socket	Through Hole Right Angle	0.05 in	1.27 mm	10 Áin	0.25 Ám	2
3M (TC) P50-040S-R1-EA	10.7 mm		40	Gold	Board Lock Flange	Outer Shroud Contacts Socket	Through Hole	0.05 in	1.27 mm	10 Áin	0.25 Ám	2	0.421 in
3M (TC) P50-068S-R1-EA	10.7 mm		68	Gold	Board Lock Flange	Outer Shroud Contacts Socket	Through Hole	0.05 in	1.27 mm	10 Áin	0.25 Ám	2	0.421 in
3M (TC) P50-030PG-S1-TGF	0.461 in	11.7 mm	30	Gold	Ground Pin		Through Hole	0.05 in	1.27 mm			2
3M (TC) P50-020PG-S1-EA	0.461 in	11.7 mm	20	Gold	Ground Pin		Through Hole	0.05 in	1.27 mm	10 Áin	0.25 Ám	2
3M (TC) P50-100S-R1-EA	10.7 mm		100	Gold	Board Lock Flange	Outer Shroud Contacts Socket	Through Hole	0.05 in	1.27 mm	10 Áin	0.25 Ám	2	0.421 in
3M (TC) P50-030P1-RR1-EA			30			Plug	Through Hole Right Angle					2		Solder	0.118 in	3 mm	10 çin	0.25 çm	Gold	Black	Flash	Glass Filled Nylon Polyamide (PA)	Gold	85 °C	-55 °C	Center Strip Contact	Shrouded - 4 Wall	Phosphor Bronze	Latch Holder	UL94 V-0	7 mm	0.276 in	All	0.05 in	1.27 mm	0.5 A	Board to Board Cable
3M (TC) P50-050P-RR1-EA	0.275 in	6.99 mm	50	Gold	Board Lock Flange		Through Hole Right Angle	0.05 in	1.27 mm	10 Áin	0.25 Ám	2
3M (TC) P50-080S-R1-EA	10.7 mm		80	Gold	Board Lock Flange	Outer Shroud Contacts Socket	Through Hole	0.05 in	1.27 mm	10 Áin	0.25 Ám	2	0.421 in
3M (TC) P50-068PG-SR1-EA	0.275 in	6.99 mm	68	Gold	Ground Pin		Through Hole Right Angle	0.05 in	1.27 mm	10 Áin	0.25 Ám	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	209	$ 8.41
Newark	Each	100	$ 9.77
		250	$ 8.96
		500	$ 8.32
		1000	$ 7.82

Description

General part information

P50 Series

50 Position Connector Plug, Center Strip Contacts Through Hole, Right Angle Gold
