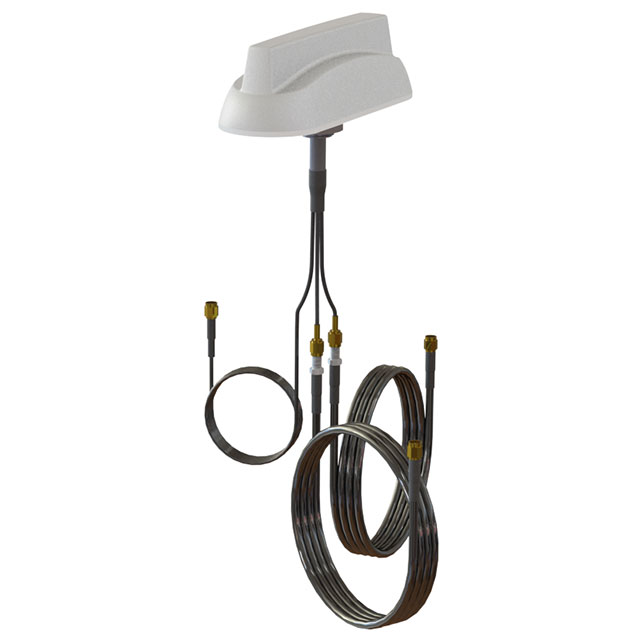

VFT69383W2NJN-518Q

Active

TE Connectivity Raychem Cable Protection

VEHICULAR,MIMO,3 PORTS LTE1,LTE2,GNSS,WH

Deep-Dive with AI

DocumentsDatasheet VFT69383x2NJN-518Q +4

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VFT69383W2NJN-518Q

Antenna Type	Dome
Applications	LTE, GLONASS, 4G, Beidou, GPS, 3G, ISM, 5G, GNSS
Features	Cable - 5.18M, LNA
Frequency (Center/Band)	1.602 GHz, 1.785 GHz, 1.575 GHz, 2.6 GHz, 920 MHz, 2.4 GHz, 1.92 GHz, 2.045 GHz, 752 MHz, 859 MHz, 1.561 GHz, 3.55 GHz
Frequency Group	Wide Band
Frequency Range [Max]	806 MHz, 2.5 GHz, 894 MHz, 1.88 GHz, 960 MHz, 1.606 GHz, 3.8 GHz, 1.99 GHz, 2.18 GHz, 2.7 GHz
Frequency Range [Min]	1.559 GHz, 698 MHz, 2.3 GHz, 3.3 GHz, 880 MHz, 1.69 GHz, 1.85 GHz, 1.91 GHz, 2.5 GHz, 824 MHz
Gain	3.4 dBi, 0.2 dBi, 5.5 dBi, 0.5 dBi, 3 dBi, 3.7 dBi, 4.9 dBi, 2.5 dBi, 4.6 dBi, 5.4 dBi, 0.7 dBi
Height (Max) [Max]	48 mm
Height (Max) [Max]	1.89 in
Ingress Protection	IP67
Number of Bands	12
Power - Max [Max]	10 W
RF Family/Standard	Navigation, General ISM, Cellular
Termination	SMA Male (2)
VSWR	2

VFT69383 Series

Part	Features	Frequency Range [Max]	Frequency Range [Min]	Ingress Protection	Termination	Power - Max [Max]	RF Family/Standard	Number of Bands	Frequency Group	Antenna Type	Frequency (Center/Band)	Applications	VSWR	Height (Max) [Max]	Height (Max) [Max]	Gain
TE Connectivity Raychem Cable Protection VFT69383B2NJN-518Q	Cable - 5.18M LNA	1.606 GHz 1.88 GHz 1.99 GHz 2.18 GHz 2.5 GHz 2.7 GHz 3.8 GHz 806 MHz 894 MHz 960 MHz	1.559 GHz 1.69 GHz 1.85 GHz 1.91 GHz 2.3 GHz 2.5 GHz 3.3 GHz 698 MHz 824 MHz 880 MHz	IP67	SMA Male (2)	10 W	Cellular General ISM Navigation	12	Wide Band	Dome	1.561 GHz 1.575 GHz 1.602 GHz 1.785 GHz 1.92 GHz 2.045 GHz 2.4 GHz 2.6 GHz 3.55 GHz 752 MHz 859 MHz 920 MHz	3G 4G 5G Beidou GLONASS GNSS GPS ISM LTE	2	48 mm	1.89 in	0.2 dBi 0.5 dBi 0.7 dBi 2.5 dBi 3 dBi 3.4 dBi 3.7 dBi 4.6 dBi 4.9 dBi 5.4 dBi 5.5 dBi
TE Connectivity Raychem Cable Protection VFT69383W11JN-518L	Cable - 5.18M LNA	1.606 GHz 2.5 GHz 3.8 GHz 6 GHz 806 MHz 894 MHz 960 MHz	1.559 GHz 1.69 GHz 2.4 GHz 4.9 GHz 698 MHz 824 MHz 880 MHz	IP67	RP-SMA SMA Male (2)	10 W	Cellular General ISM Navigation WiFi	9	Wide Band	Dome	1.561 GHz 1.575 GHz 1.602 GHz 2.45 GHz 2.745 GHz 5.45 GHz 752 MHz 859 MHz 920 MHz	3G 4G 5G Beidou GLONASS GNSS GPS ISM LTE Wi-Fi	2	48 mm	1.89 in	-1 dBi 0.6 dBi 1.6 dBi 3.4 dBi 4.3 dBi 4.5 dBi 4.6 dBi 5.6 dBi
TE Connectivity Raychem Cable Protection VFT69383W2NJN-518Q	Cable - 5.18M LNA	1.606 GHz 1.88 GHz 1.99 GHz 2.18 GHz 2.5 GHz 2.7 GHz 3.8 GHz 806 MHz 894 MHz 960 MHz	1.559 GHz 1.69 GHz 1.85 GHz 1.91 GHz 2.3 GHz 2.5 GHz 3.3 GHz 698 MHz 824 MHz 880 MHz	IP67	SMA Male (2)	10 W	Cellular General ISM Navigation	12	Wide Band	Dome	1.561 GHz 1.575 GHz 1.602 GHz 1.785 GHz 1.92 GHz 2.045 GHz 2.4 GHz 2.6 GHz 3.55 GHz 752 MHz 859 MHz 920 MHz	3G 4G 5G Beidou GLONASS GNSS GPS ISM LTE	2	48 mm	1.89 in	0.2 dBi 0.5 dBi 0.7 dBi 2.5 dBi 3 dBi 3.4 dBi 3.7 dBi 4.6 dBi 4.9 dBi 5.4 dBi 5.5 dBi

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 131.11
		10	$ 124.91
		25	$ 122.25

Description

General part information

VFT69383 Series

752MHz, 859MHz, 920MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.785GHz, 1.92GHz, 2.045GHz, 2.4GHz, 2.6GHz, 3.55GHz 3G, 4G, 5G, Beidou, GLONASS, GNSS, GPS, ISM, LTE Dome RF Antenna 698MHz ~ 806MHz, 824MHz ~ 894MHz, 880MHz ~ 960MHz, 1.559GHz ~ 1.606GHz, 1.69GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.91GHz ~ 2.18GHz, 2.3GHz ~ 2.5GHz, 2.5GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz 0.7dBi, 0.5dBi, 0.2dBi, 3.4dBi, 4.9dBi, 5.4dBi, 3.7dBi, 3dBi, 2.5dBi, 3.7dBi, 4.6dBi, 5.5dBi SMA Male (2) Panel Mount
