MAX11633EVSYS#

Active

Analog Devices Inc./Maxim Integrated

EVALUATION SYSTEM

Search across all available documentation for this part.

Active

Analog Devices Inc./Maxim Integrated

EVALUATION SYSTEM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 402.81

General part information

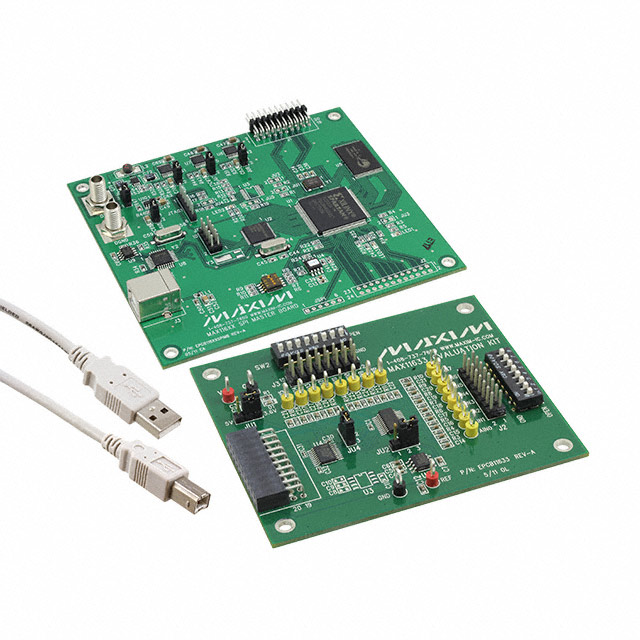

MAX11633 - 12 Bit 300k Samples per Second Analog to Digital Converter (ADC) Evaluation Board

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	MAX11633EVSYS#	MAX11633 Series

Architecture	-	SAR
Configuration	-	S/H-ADC
Data Interface	QSPI™, Serial, SPI™, MICROWIRE™	SPI, QSPI™, Serial, SPI™, MICROWIRE™
Input Range [Max]	VREF	VREF
Input Range [Min]	0	0
Input Type	-	Single Ended
Mounting Type	-	Surface Mount
Number of A/D Converters	1	1
Number of Bits	12 bits	12 bits
Number of Inputs	-	16
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Package / Case	-	24-SSOP
Package / Case	-	0.154 - 3.9 "
Ratio - S/H:ADC	-	1:1
Reference Type	-	External, Internal
Sampling Rate (Per Second)	300 kHz	300 kHz
Supplied Contents	Board(s)	Board(s)
Supplier Device Package	-	24-QSOP
Utilized IC / Part	MAX11633	MAX11633
Voltage - Supply, Analog	-	2.7 V
Voltage - Supply, Analog	-	3.6 V
Voltage - Supply, Digital	-	3.6 V
Voltage - Supply, Digital	-	2.7 V

IC ADC 12BIT SAR 24QSOP

Part	Number of Bits	Architecture	Operating Temperature [Max]	Operating Temperature [Min]	Data Interface	Mounting Type	Voltage - Supply, Digital [Max]	Voltage - Supply, Digital [Min]	Number of A/D Converters	Reference Type	Voltage - Supply, Analog [Min]	Voltage - Supply, Analog [Max]	Supplier Device Package	Sampling Rate (Per Second)	Ratio - S/H:ADC	Number of Inputs	Package / Case	Package / Case [custom]	Configuration	Input Type	Input Range [Max]	Input Range [Min]	Utilized IC / Part	Supplied Contents
Analog Devices Inc./Maxim Integrated MAX11633EEG+	12 bits	SAR	85 °C	-40 °C	SPI	Surface Mount	3.6 V	2.7 V	1	External, Internal	2.7 V	3.6 V	24-QSOP	300 kHz	1:1	16	24-SSOP	0.154 ", 3.9 mm	S/H-ADC	Single Ended
Analog Devices Inc./Maxim Integrated MAX11633EVSYS#	12 bits				MICROWIRE™, QSPI™, Serial, SPI™				1					300 kHz							VREF	0	MAX11633	Board(s)
Analog Devices Inc./Maxim Integrated MAX11633EVKIT#	12 bits				MICROWIRE™, QSPI™, Serial, SPI™				1					300 kHz							VREF	0	MAX11633	Board(s)
Analog Devices Inc./Maxim Integrated MAX11633EEG+T	12 bits	SAR	85 °C	-40 °C	SPI	Surface Mount	3.6 V	2.7 V	1	External, Internal	2.7 V	3.6 V	24-QSOP	300 kHz	1:1	16	24-SSOP	0.154 ", 3.9 mm	S/H-ADC	Single Ended
