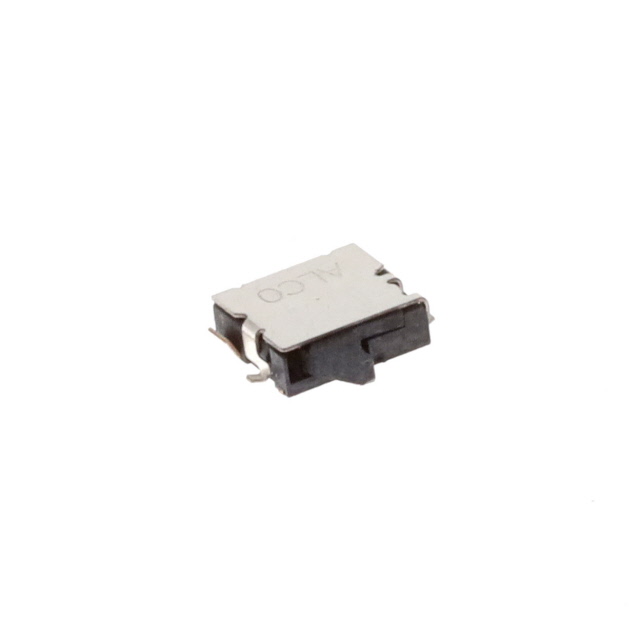

JJCHLUJ100NOPMRTR
ActiveTE Connectivity Raychem Cable Protection
SWITCH DETECT SPST-NO 0.001A 5V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
JJCHLUJ100NOPMRTR
ActiveTE Connectivity Raychem Cable Protection
SWITCH DETECT SPST-NO 0.001A 5V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | JJCHLUJ100NOPMRTR |
|---|---|
| Actuator Type | Angled Toggle (Detector) |
| Circuit | SPST-NO |
| Current Rating (Amps) | 1 mA |
| Electrical Life | 50000 Cycles |
| Features | Board Guide |
| Mounting Type | Surface Mount |
| Operating Force | 35 gf |
| Operating Position | 3.05 mm |
| Operating Position | 0.12 in |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -10 °C |
| Pretravel | 0.012 in |
| Pretravel | 0.3 mm |
| Switch Function | Off-Mom |
| Termination Style | J Lead |
| Voltage Rating - DC | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.13 | |
| 10 | $ 1.09 | |||
| 25 | $ 1.03 | |||
| 100 | $ 0.89 | |||
| 250 | $ 0.81 | |||
| 500 | $ 0.75 | |||
| 1000 | $ 0.70 | |||
| Tape & Reel (TR) | 3500 | $ 0.54 | ||
Description
General part information
JJCHL Series
Switch SPST-NO Surface Mount
