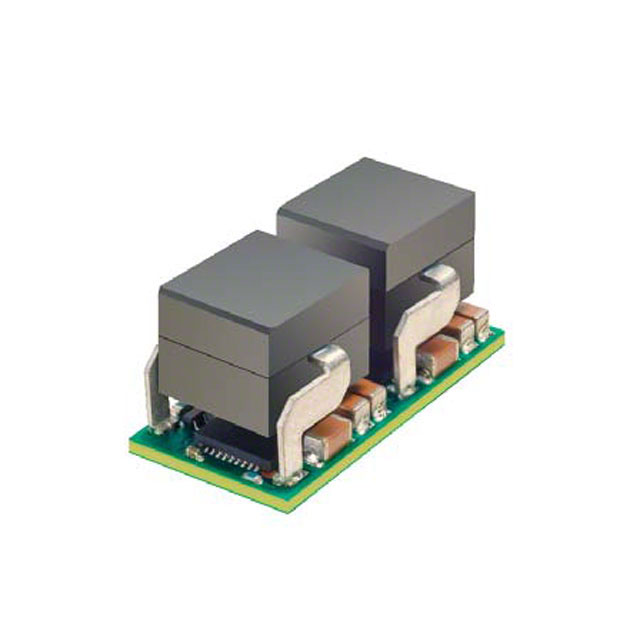

OKLP-X/60-W12A-C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 0.6-3.63V
Deep-Dive with AI
Search across all available documentation for this part.
OKLP-X/60-W12A-C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 0.6-3.63V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | OKLP-X/60-W12A-C | OKLP-X Series |
|---|---|---|
| Applications | ITE (Commercial) | ITE (Commercial) |
| Current - Output (Max) [Max] | 60 A | 35 - 60 A |
| Efficiency | 95 % | 94 - 95 % |
| Features | UVLO | UVLO, SCP |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 70 - 85 °C |
| Operating Temperature [Min] | -40 °C | -40 - -20 °C |
| Package / Case | 16-SMD Module | 16-SMD Module, 11-SMD Module |
| Size / Dimension [x] | 25.4 mm | 25.4 mm |
| Size / Dimension [x] | 1 in | 1 in |
| Size / Dimension [y] | 0.5 in | 0.5 in |
| Size / Dimension [y] | 12.7 mm | 12.7 mm |
| Size / Dimension [z] | 0.48 in | 0.44 - 0.48 in |
| Size / Dimension [z] | 12.2 mm | 11.1 - 12.2 mm |
| Type | Non-Isolated PoL Module | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 13.2 V | 13.2 V |
| Voltage - Input (Min) [Min] | 7 V | 7 V |
| Voltage - Output 1 [Max] | 3.63 V | 3.6 - 3.63 V |
| Voltage - Output 1 [Min] | 0.6 V | 0.6 - 0.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
OKLP-X Series
DC DC CONVERTER 0.6-3.63V
| Part | Type | Applications | Current - Output (Max) [Max] | Mounting Type | Voltage - Output 1 [Max] | Voltage - Output 1 [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input (Max) [Max] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Voltage - Input (Min) [Min] | Number of Outputs | Features | Efficiency | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. OKLP-X/60-W12A-C | Non-Isolated PoL Module | ITE (Commercial) | 60 A | Surface Mount | 3.63 V | 0.6 V | 85 °C | -40 °C | 13.2 V | 0.5 in | 12.7 mm | 25.4 mm | 0.48 in | 12.2 mm | 1 in | 7 V | 1 | UVLO | 95 % | 16-SMD Module |
Murata Power Solutions Inc. OKLP-X/35-W12-C | Non-Isolated PoL Module | ITE (Commercial) | 35 A | Surface Mount | 3.6 V | 0.8 V | 70 °C | -20 C | 13.2 V | 0.5 in | 12.7 mm | 25.4 mm | 0.44 " | 11.1 mm | 1 in | 7 V | 1 | SCP | 94 % | 11-SMD Module |
Description
General part information
OKLP-X Series
Non-Isolated PoL Module DC DC Converter 1 Output 0.6 ~ 3.63V 60A 7V - 13.2V Input
