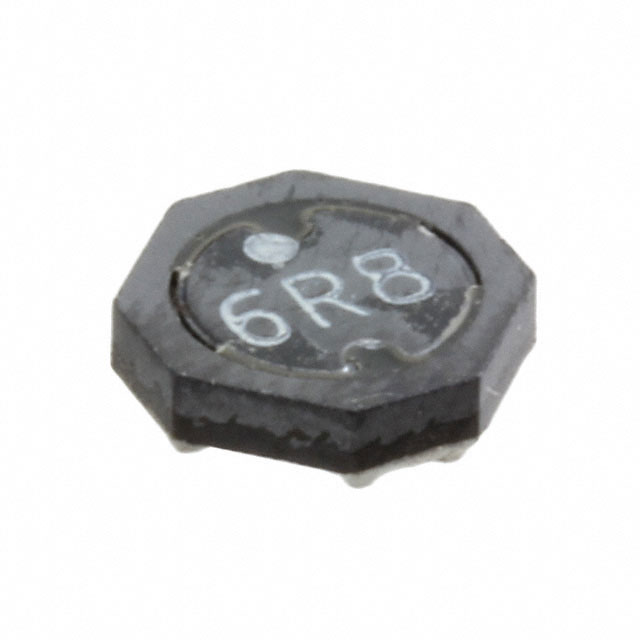

SRU6018-6R8Y
ActiveBourns Inc.
POWER INDUCTOR (SMD), 6.8 ΜH, 1.9 A, SHIELDED, 1.2 A, SRU6018 SERIES
Deep-Dive with AI
Search across all available documentation for this part.
SRU6018-6R8Y
ActiveBourns Inc.
POWER INDUCTOR (SMD), 6.8 ΜH, 1.9 A, SHIELDED, 1.2 A, SRU6018 SERIES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SRU6018-6R8Y |
|---|---|
| Current - Saturation (Isat) | 1.2 A |
| Current Rating (Amps) | 1.9 A |
| Frequency - Self Resonant | 40 MHz |
| Height - Seated (Max) [Max] [z] | 2 mm |
| Height - Seated (Max) [Max] [z] | 0.079 in |
| Inductance | 6.8 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Nonstandard |
| Q @ Freq | 7.96 MHz, 8 |
| Shielding | Shielded |
| Size / Dimension [x] | 0.256 " |
| Size / Dimension [x] | 6.5 mm |
| Size / Dimension [y] | 6.2 mm |
| Size / Dimension [y] | 0.244 in |
| Tolerance | 30 % |
| Type | Wirewound, Drum Core |
SRU6018 Series
| Part | Mounting Type | Current Rating (Amps) | Inductance Frequency - Test | Type | Q @ Freq | Inductance | DC Resistance (DCR) | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Material - Core | Shielding | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Tolerance | Frequency - Self Resonant | Current - Saturation (Isat) | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | DC Resistance (DCR) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Bourns Inc. | Surface Mount | 1.7 A | 100 kHz | Drum Core Wirewound | 2.52 MHz 12 | 10 µH | 88 mOhm | Nonstandard | 125 °C | -40 °C | Ferrite | Shielded | 2 mm | 0.079 in | 30 % | 30 MHz | 1 A | 0.256 " | 6.5 mm | 6.2 mm | 0.244 in | |
Bourns Inc. | Surface Mount | 1.9 A | 100 kHz | Drum Core Wirewound | 7.96 MHz 8 | 6.8 µH | Nonstandard | 125 °C | -40 °C | Ferrite | Shielded | 2 mm | 0.079 in | 30 % | 40 MHz | 1.2 A | 0.256 " | 6.5 mm | 6.2 mm | 0.244 in | ||
Bourns Inc. | Surface Mount | 800 mA | 100 kHz | Drum Core Wirewound | 2.52 MHz 12 | 47 µH | Nonstandard | 125 °C | -40 °C | Ferrite | Shielded | 2 mm | 0.079 in | 30 % | 14 MHz | 460 mA | 0.256 " | 6.5 mm | 6.2 mm | 0.244 in | 410 mOhm | |
Bourns Inc. | Surface Mount | 2.2 A | 100 kHz | Drum Core Wirewound | 7.96 MHz 8 | 4.7 ÁH | 42 mOhm | Nonstandard | 125 °C | -40 °C | Ferrite | Shielded | 2 mm | 0.079 in | 30 % | 50 MHz | 1.4 A | 0.256 " | 6.5 mm | 6.2 mm | 0.244 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
SRU6018 Series
6.8 µH Shielded Drum Core, Wirewound Inductor 1.9 A 60mOhm Max Nonstandard
