Q-6902N00081.5M

Active

Amphenol Custom Cable

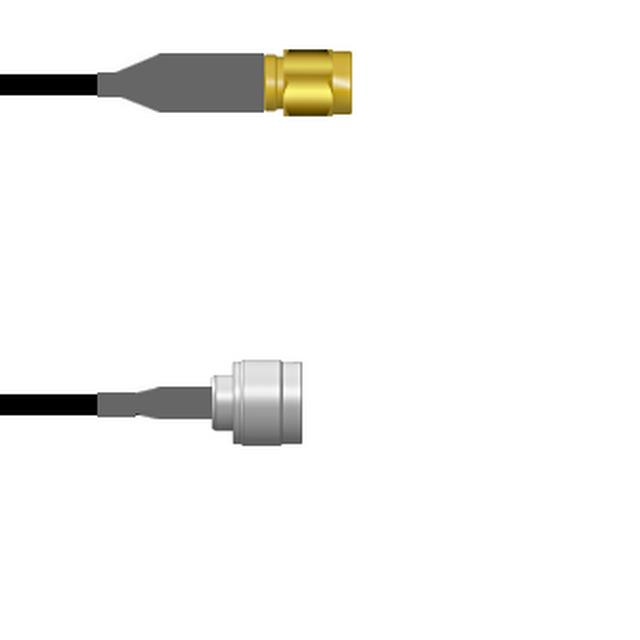

CBL ASSY RPSMA-NTYPE PLG-PL 4.9'

Deep-Dive with AI

Search across all available documentation for this part.

Q-6902N00081.5M

Active

Amphenol Custom Cable

CBL ASSY RPSMA-NTYPE PLG-PL 4.9'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	Q-6902N00081.5M	Q-6902N0 Series

1st Connector	RP-SMA Plug	RP-SMA Plug
1st Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
1st Contact Gender	Female	Female
2nd Connector	N-Type Plug	N-Type Plug
2nd Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
2nd Contact Gender	Male	Male
Cable Impedance	50 Ohms	50 Ohms
Cable Type	RG-58	RG-58
Color	Black	Black
Connector Impedance	50 Ohms	50 Ohms
Features	Shielded	Shielded
Frequency - Max [Max]	1 GHz	1 GHz
Length	59.1 in	6 - 118.1 "
Length	4.9 ft	4.9 - 9.8 ft
Length	1.5 m	1.5 - 228.6 mm
Overall Impedance	50 Ohms	50 Ohms
Style	RP-SMA to N-Type	RP-SMA to N-Type

Q-6902N0 Series

COAX CBL RP-SMA TO N-TYPE 9"

Part	Features	Cable Impedance	1st Connector	1st Connector Mounting Type	2nd Contact Gender	1st Contact Gender	2nd Connector	Color	Style	Connector Impedance	Length	Length	Frequency - Max [Max]	2nd Connector Mounting Type	Cable Type	Overall Impedance	Length
Amphenol Custom Cable Q-6902N0008009I	Shielded	50 Ohms	RP-SMA Plug	Free Hanging (In-Line)	Male	Female	N-Type Plug	Black	RP-SMA to N-Type	50 Ohms	9 "	228.6 mm	1 GHz	Free Hanging (In-Line)	RG-58	50 Ohms
Amphenol Custom Cable Q-6902N0008006I	Shielded	50 Ohms	RP-SMA Plug	Free Hanging (In-Line)	Male	Female	N-Type Plug	Black	RP-SMA to N-Type	50 Ohms	6 in	152.4 mm	1 GHz	Free Hanging (In-Line)	RG-58	50 Ohms
Amphenol Custom Cable Q-6902N0008002M	Shielded	50 Ohms	RP-SMA Plug	Free Hanging (In-Line)	Male	Female	N-Type Plug	Black	RP-SMA to N-Type	50 Ohms	78.7 in	2 m	1 GHz	Free Hanging (In-Line)	RG-58	50 Ohms	6.6 ft
Amphenol Custom Cable Q-6902N0008003M	Shielded	50 Ohms	RP-SMA Plug	Free Hanging (In-Line)	Male	Female	N-Type Plug	Black	RP-SMA to N-Type	50 Ohms	118.1 in	3 m	1 GHz	Free Hanging (In-Line)	RG-58	50 Ohms	9.8 '
Amphenol Custom Cable Q-6902N00081.5M	Shielded	50 Ohms	RP-SMA Plug	Free Hanging (In-Line)	Male	Female	N-Type Plug	Black	RP-SMA to N-Type	50 Ohms	59.1 in	1.5 m	1 GHz	Free Hanging (In-Line)	RG-58	50 Ohms	4.9 ft
Amphenol Custom Cable Q-6902N0008036I	Shielded	50 Ohms	RP-SMA Plug	Free Hanging (In-Line)	Male	Female	N-Type Plug	Black	RP-SMA to N-Type	50 Ohms	36 in	91.44 cm	1 GHz	Free Hanging (In-Line)	RG-58	50 Ohms
Amphenol Custom Cable Q-6902N00082.5M	Shielded	50 Ohms	RP-SMA Plug	Free Hanging (In-Line)	Male	Female	N-Type Plug	Black	RP-SMA to N-Type	50 Ohms	98.4 in	2.5 m	1 GHz	Free Hanging (In-Line)	RG-58	50 Ohms	8.2 '

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 53.57
		25	$ 50.97
		50	$ 48.36
		100	$ 46.13
		250	$ 44.27

Description

General part information

Q-6902N0 Series

Cable Assembly Coaxial RP-SMA to N-Type RG-58 59.1" (1.5m) 4.9'

Documents

Technical documentation and resources

No documents available
