50M100150J050

Active

Essentra Access Solutions

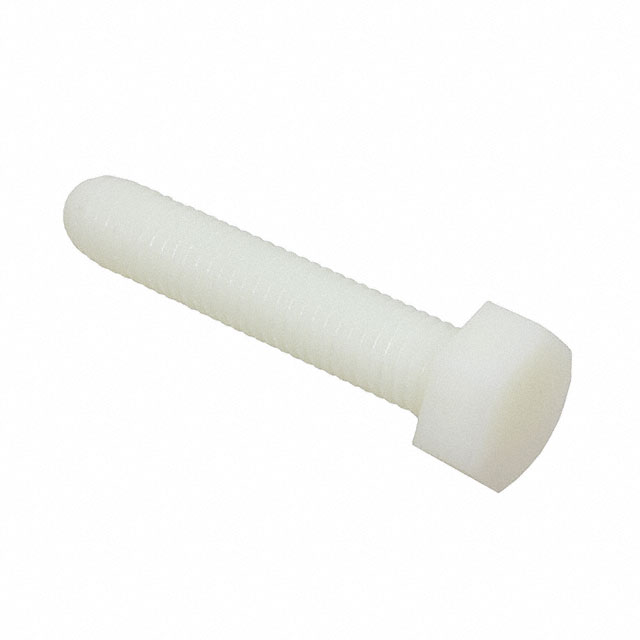

HEX HEAD BOLT, NATURAL, NYLON 6/

Search across all available documentation for this part.

Active

Essentra Access Solutions

HEX HEAD BOLT, NATURAL, NYLON 6/

Technical Specifications

Parameters and characteristics for this part

Part	Thread Size	Material	Drive Type	Screw Head Type	Type	Length - Below Head	Length - Below Head	Length - Overall [x]	Length - Overall [x]	Head Diameter [diameter]	Head Diameter [diameter]	Length - Overall	Length - Overall	Head Height	Head Height	Length - Below Head [x]	Length - Below Head [x]
Essentra Access Solutions 50M100150P013	M10x1.5	Nylon	Phillips	Pan Head	Machine Screw	13 mm	0.512 in	0.807 in	20.5 mm	0.787 in	20 mm
Essentra Access Solutions 50M100150S030	M10x1.5	Nylon	Hex	Cheese Head	Cap Screw					0.63 in	16 mm	1.575 in	40 mm
Essentra Access Solutions 50M100150H035	M10x1.5	Nylon	Slotted	Flat Head	Machine Screw			1.378 "	35 mm	0.787 in	20 mm			5 mm	0.197 in
Essentra Access Solutions 50M100150F035	M10x1.5	Nylon	Slotted	Pan Head	Machine Screw			1.673 in	42.5 mm	0.787 in	20 mm			7.5 mm	0.295 in
Essentra Access Solutions 50M100150S013	M10x1.5	Nylon	Hex	Cheese Head	Cap Screw	13 mm	0.512 in	0.906 in	23 mm	0.63 in	16 mm
Essentra Access Solutions 50M100150P020	M10x1.5	Nylon	Phillips	Pan Head	Machine Screw	20 mm	0.787 in	1.075 in	27.3 mm	0.787 in	20 mm			7.3 mm	0.287 in
Essentra Access Solutions 50M100150R016	M10x1.5	Nylon	Slotted		Set Screw	16 mm	0.63 in	0.728 in	18.5 mm	0.26 in	6.6 mm
Essentra Access Solutions 50M100150D035	M10x1.5	Nylon	Slotted	Cheese Head	Bolt			1.614 in	41 mm	0.615 in	15.63 mm			6 mm	0.236 in
Essentra Access Solutions 50M100150J050	M10	Nylon		Hex Head												50 mm	1.969 in
Essentra Access Solutions 50M100150K020	M10x1.5	Nylon	Slotted	Hex Head	Bolt	20 mm	0.787 in	1.083 in	27.5 mm	0.63 in	16 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

M10 Hex Head Drive Nylon
