SML-LXL1210SRSYCTR

Active

Lumex Opto/Components Inc.

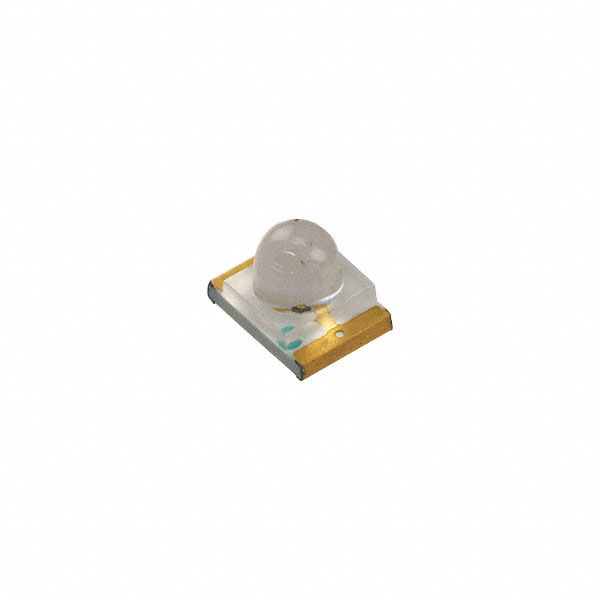

LED RED/YLW CLEAR 1210 SMD

Deep-Dive with AI

Search across all available documentation for this part.

SML-LXL1210SRSYCTR

Active

Lumex Opto/Components Inc.

LED RED/YLW CLEAR 1210 SMD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SML-LXL1210 Series

Red, Yellow LED Indication - Discrete 1.7V Red, 2.1V Yellow 4-SMD, No Lead

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SML-LXL1210SRSYCTR	SML-LXL1210 Series

Color	Yellow, Red	Green, Yellow, Red
Configuration	Independent	Independent
Current - Test	20mA Red, 20mA Yellow	20mA Red, 20mA Yellow
Current - Test	-	20 mA
Height (Max) [Max]	1.5 mm	1.5 mm
Lens Color	Colorless	Colorless
Lens Size [x]	1.8 mm	1.8 mm
Lens Size [y]	2.5 mm	2.5 mm
Lens Style	Rectangle with Flat Top	Rectangle with Flat Top, Rectangle with Irregular Top
Lens Transparency	Clear	Clear
Millicandela Rating	-	10 mcd
Millicandela Rating	-	10mcd Red, 10mcd Green, 50mcd Red, 10mcd Yellow
Millicandela Rating	-	20 - 35 mcd
Millicandela Rating [custom]	90 mcd	6 - 90 mcd
Millicandela Rating [custom]	50 mcd	50 mcd
Mounting Type	Surface Mount	Surface Mount
Package / Case	4-SMD, No Lead	4-SMD, No Lead
Size / Dimension [x]	3 mm	3 mm
Size / Dimension [y]	2.5 mm	2.5 mm
Supplier Device Package	1210	1210
Viewing Angle	60 °	60 °
Viewing Angle	-	90 °
Voltage - Forward (Vf) (Typ)	-	1.7 - 2.2 V
Voltage - Forward (Vf) (Typ) [custom]	2.1 V	2.1 V
Voltage - Forward (Vf) (Typ) [custom]	1.7 V	1.7 V
Wavelength - Peak	590 nm, 660 nm	565 - 660 nm

SML-LXL1210 Series

LED GRN/YLW CLEAR 1210 SMD

Part	Color	Viewing Angle	Voltage - Forward (Vf) (Typ)	Mounting Type	Height (Max) [Max]	Lens Transparency	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Configuration	Lens Color	Current - Test	Supplier Device Package	Lens Style	Wavelength - Peak	Lens Size [x]	Lens Size [y]	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating	Viewing Angle [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Millicandela Rating [custom]	Current - Test	Millicandela Rating
Lumex Opto/Components Inc. SML-LXL1210YGC-TR	Green, Yellow	60 °	2.1 V, 2.2 V	Surface Mount	1.5 mm	Clear	3 mm	2.5 mm	4-SMD, No Lead	Independent	Colorless	20 mA, 20 mA	1210	Rectangle with Flat Top	565 nm, 585 nm	1.8 mm	2.5 mm	10 mcd	6 mcd
Lumex Opto/Components Inc. SML-LXL1210IGC-TR	Green, Red	60 °	2 V, 2.2 V	Surface Mount	1.5 mm	Clear	3 mm	2.5 mm	4-SMD, No Lead	Independent	Colorless	20 mA, 20 mA	1210	Rectangle with Flat Top	565 nm, 635 nm	1.8 mm	2.5 mm			10mcd Green, 10mcd Red
Lumex Opto/Components Inc. SML-LXL1210SYSUGC	Green, Yellow		2 V, 2 V	Surface Mount	1.5 mm	Clear	3 mm	2.5 mm	4-SMD, No Lead	Independent	Colorless	20 mA, 20 mA	1210	Rectangle with Irregular Top	574 nm, 590 nm						90 °
Lumex Opto/Components Inc. SML-LXL1210SRSYCTR	Red, Yellow	60 °		Surface Mount	1.5 mm	Clear	3 mm	2.5 mm	4-SMD, No Lead	Independent	Colorless		1210	Rectangle with Flat Top	590 nm, 660 nm	1.8 mm	2.5 mm		90 mcd			2.1 V	1.7 V	50 mcd	20mA Red, 20mA Yellow
Lumex Opto/Components Inc. SML-LXL1210SRYC-TR	Red, Yellow	60 °		Surface Mount	1.5 mm	Clear	3 mm	2.5 mm	4-SMD, No Lead	Independent	Colorless		1210	Rectangle with Flat Top	585 nm, 660 nm	1.8 mm	2.5 mm			10mcd Yellow, 50mcd Red		2.1 V	1.7 V		20mA Red, 20mA Yellow
Lumex Opto/Components Inc. SML-LXL1210SRGC-TR	Green, Red	60 °	1.7 V, 2.1 V	Surface Mount	1.5 mm	Clear	3 mm	2.5 mm	4-SMD, No Lead	Independent	Colorless	20 mA, 20 mA	1210	Rectangle with Flat Top	570 nm, 660 nm	1.8 mm	2.5 mm									20 mcd, 35 mcd
Lumex Opto/Components Inc. SML-LXL1210GYC-TR	Green, Yellow	60 °	2 V, 2 V	Surface Mount	1.5 mm	Clear	3 mm	2.5 mm	4-SMD, No Lead	Independent	Colorless	20 mA, 20 mA	1210	Rectangle with Flat Top	565 nm, 585 nm	1.8 mm	2.5 mm	10 mcd	6 mcd
