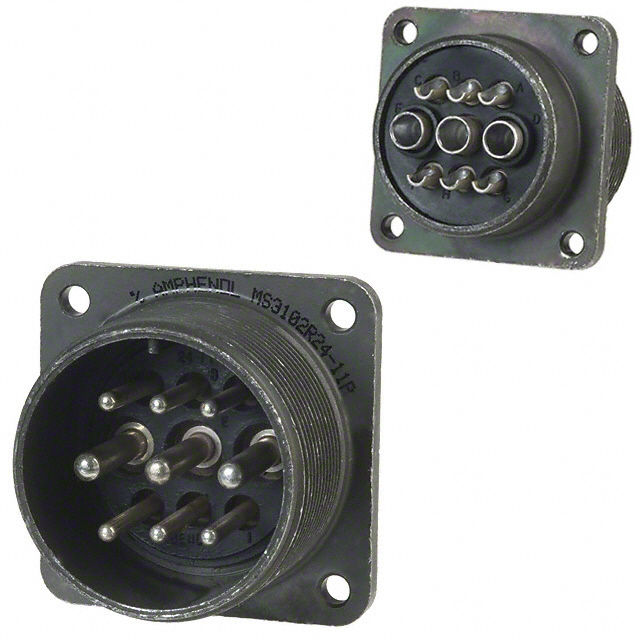

MS3102R-24-11P
UnknownAmphenol Aerospace Operations
CONN RCPT MALE 9P SILV SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MS3102R-24-11P
UnknownAmphenol Aerospace Operations
CONN RCPT MALE 9P SILV SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MS3102R-24-11P |
|---|---|
| Applications | Military, Marine |
| Cable Opening [custom] | 34.93 mm |
| Cable Opening [custom] | 1.375 in |
| Color | Olive Drab |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Silver |
| Contact Material | Copper Alloy |
| Grade | Military |
| Ingress Protection | Environment Resistant |
| Insert Material | Neoprene |
| Mounting Feature | Flange |
| Number of Positions | 9 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | N |
| Primary Material | Metal |
| Qualification | MIL-DTL-5015 |
| Shell Finish | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum Alloy |
| Shell Size - Insert | 24-11 |
| Shielding | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 77.39 | |
| 10 | $ 60.11 | |||
| 25 | $ 54.64 | |||
| 50 | $ 50.95 | |||
| 100 | $ 47.61 | |||
Description
General part information
MS3102R24 Series
9 Position Circular Connector Receptacle, Male Pins Solder Cup
