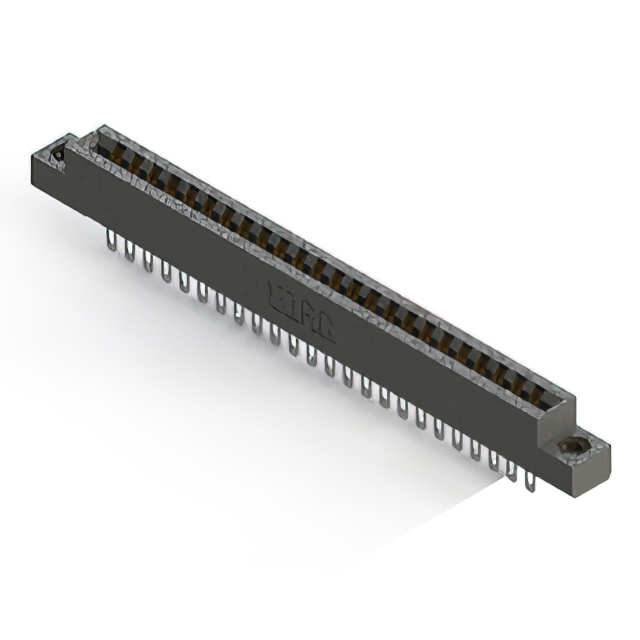

356-024-500-108
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 56POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
356-024-500-108
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 56POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 356-024-500-108 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Number of Positions | 56 |
| Number of Positions/Bay/Row [custom] | 24 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder Eyelet(s) |
| Termination Rows | 1 |
356-024 Series
| Part | Contact Finish Thickness | Contact Finish Thickness | Pitch [x] | Pitch [x] | Termination | Gender | Card Type | Termination Rows | Number of Positions/Bay/Row [custom] | Mounting Type | Material - Insulation | Number of Rows | Contact Finish | Read Out | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Color | Contact Material | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Features | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | Solder | Female | Non Specified - Dual Edge | 1 | 24 | Through Hole | Polyester Thermoplastic | 2 | Gold | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Copper Alloy | Cantilever | -40 °C | 105 ░C | 56 | ||||
EDAC Inc. | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | Solder | Female | Non Specified - Dual Edge | 1 | 24 | Panel Mount Through Hole | Polyester Thermoplastic | 2 | Gold | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Copper Alloy | Cantilever | -40 °C | 105 ░C | 56 | Card Guides | 4-40 Flush Mount Threaded Insert Top Opening | ||
EDAC Inc. | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | Solder | Female | Non Specified - Dual Edge | 1 | 24 | Panel Mount Through Hole | Polyester Thermoplastic | 2 | Gold | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Copper Alloy | Cantilever | -40 °C | 105 ░C | 56 | Flush Mount M3 Threaded Insert Top Opening | |||
EDAC Inc. | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | Solder | Female | Non Specified - Dual Edge | 1 | 24 | Panel Mount Through Hole | Polyester Thermoplastic | 2 | Gold | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Copper Alloy | Cantilever | -40 °C | 105 ░C | 56 | Card Guides | 4-40 Flush Mount Threaded Insert Top Opening | ||
EDAC Inc. | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | Solder Eyelet(s) | Female | Non Specified - Dual Edge | 1 | 24 | Polyester Thermoplastic | 2 | Gold | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Copper Alloy | Cantilever | -40 °C | 105 ░C | 56 | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | ||
EDAC Inc. | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | Solder Eyelet(s) | Female | Non Specified - Dual Edge | 1 | 24 | Polyester Thermoplastic | 2 | Gold | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Copper Alloy | Cantilever | -40 °C | 105 ░C | 56 | 4-40 Flush Mount Threaded Insert Top Opening | ||||
EDAC Inc. | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | Solder | Female | Non Specified - Dual Edge | 1 | 24 | Panel Mount Through Hole | Polyester Thermoplastic | 2 | Gold | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Copper Alloy | Cantilever | -40 °C | 105 ░C | 56 | Card Guides | 4-40 Flush Mount Threaded Insert Top Opening | ||
EDAC Inc. | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | Solder | Female | Non Specified - Dual Edge | 1 | 24 | Panel Mount Through Hole | Polyester Thermoplastic | 2 | Gold | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Copper Alloy | Cantilever | -40 °C | 105 ░C | 56 | Card Guides | 4-40 Flush Mount Threaded Insert Top Opening | ||
EDAC Inc. | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | Solder Eyelet(s) | Female | Non Specified - Dual Edge | 1 | 24 | Polyester Thermoplastic | 2 | Gold | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Copper Alloy | Cantilever | -40 °C | 105 ░C | 56 | Flush Mount M3 Threaded Insert Top Opening | ||||
EDAC Inc. | 0.156 in | 3.96 mm | Solder | Female | Non Specified - Dual Edge | 1 | 24 | Panel Mount Through Hole | Polyester Thermoplastic | 2 | Tin | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Copper Alloy | Cantilever | -40 °C | 105 ░C | 56 | Flush Mount Side Opening Unthreaded | 3.25 mm | 0.128 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 17.48 | |
Description
General part information
356-024 Series
56 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
