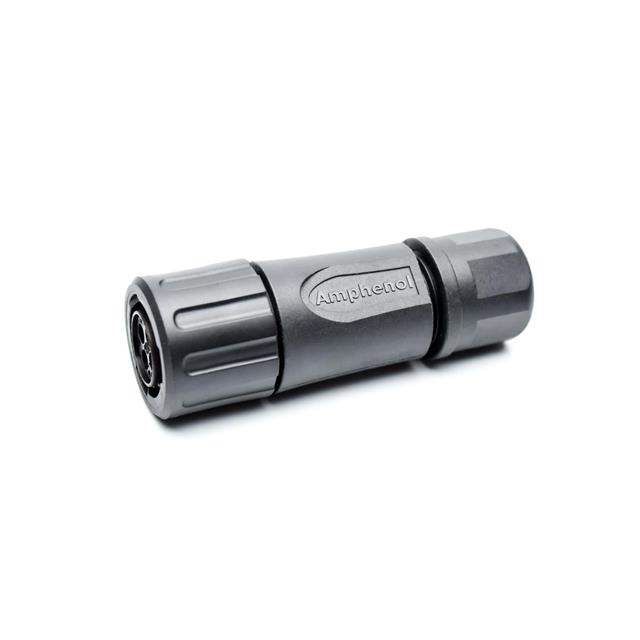

RTS6BS10N3W3S03

Active

Amphenol Sine Systems Corp

PLUG, 6 (3+3) POSITION, FEMALE,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RTS6BS10N3W3S03

Active

Amphenol Sine Systems Corp

PLUG, 6 (3+3) POSITION, FEMALE,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RTS6BS10N3W3S03

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	20 (3), 16 (3)
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Backshell
Housing Color	Black
Ingress Protection	IP69K, IP67
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	6
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	N
Primary Material	Plastic
Shell Size - Insert	10-3W3
Shielding	Unshielded
Type	For Female Sockets

RTS6BS10 Series

Part	Includes	Contact Size	Shell Size - Insert	Number of Positions	Material Flammability Rating	Contact Shape	Ingress Protection	Shielding	Features	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Contact Type	Note	Type	Housing Color	Orientation	Connector Type	Fastening Type	Insert Material	Contact Size	Primary Material
Amphenol Sine Systems Corp RTS6BS10N4PHEC03	1 Backshell 1 Connector 1 O-Ring 1 Ring 1 Seal 1 Washer	16	10-4	4	UL94 V-0	Circular	IP67 IP69K	Unshielded	Backshell Coupling Nut	125 °C	-40 °C	Free Hanging (In-Line)	Crimp	Contacts Not Included	For Male Pins	Black	N	Plug Housing	Bayonet Lock	Thermoplastic
Amphenol Sine Systems Corp RTS6BS10N3P03		16	10-3		UL94 V-0	Circular	IP67 IP69K	Unshielded	Backshell Coupling Nut	125 °C	-40 °C	Free Hanging (In-Line)	Crimp	Contacts Not Included	For Male Pins	Black	N	Plug Housing	Bayonet Lock	Thermoplastic
Amphenol Sine Systems Corp RTS6BS10N3S03		16	10-3		UL94 V-0	Circular	IP67 IP69K	Unshielded	Backshell Coupling Nut	125 °C	-40 °C	Free Hanging (In-Line)	Crimp	Contacts Not Included	For Female Sockets	Black	N	Plug Housing	Bayonet Lock	Thermoplastic
Amphenol Sine Systems Corp RTS6BS10N4S03		16	10-4	4	UL94 V-0	Circular	IP67 IP69K	Unshielded	Backshell Coupling Nut	125 °C	-40 °C	Free Hanging (In-Line)	Crimp	Contacts Not Included	For Female Sockets	Black	N	Plug Housing	Bayonet Lock	Thermoplastic
Amphenol Sine Systems Corp RTS6BS10N3W3S03			10-3W3	6	UL94 V-0	Circular	IP67 IP69K	Unshielded	Backshell	125 °C	-40 °C	Free Hanging (In-Line)	Crimp	Contacts Not Included	For Female Sockets	Black	N	Plug Housing	Bayonet Lock	Thermoplastic	16 (3) 20 (3)	Plastic
Amphenol Sine Systems Corp RTS6BS10N3W3P03			10-3W3	6	UL94 V-0	Circular	IP67 IP69K	Unshielded	Backshell	125 °C	-40 °C	Free Hanging (In-Line)	Crimp	Contacts Not Included	For Male Pins	Black	N	Plug Housing	Bayonet Lock	Thermoplastic	16 (3) 20 (3)	Plastic
Amphenol Sine Systems Corp RTS6BS10N4SHEC03	1 Backshell 1 Connector 1 O-Ring 1 Ring 1 Seal 1 Washer	16	10-4	4	UL94 V-0	Circular	IP67 IP69K	Unshielded	Backshell Coupling Nut	125 °C	-40 °C	Free Hanging (In-Line)	Crimp	Contacts Not Included	For Female Sockets	Black	N	Plug Housing	Bayonet Lock	Thermoplastic
Amphenol Sine Systems Corp RTS6BS10N6PHEC03	1 Backshell 1 Connector 1 O-Ring 1 Ring 1 Seal 1 Washer	20	10-6	6	UL94 V-0	Circular	IP67 IP69K	Unshielded	Backshell Coupling Nut	125 °C	-40 °C	Free Hanging (In-Line)	Crimp	Contacts Not Included	For Male Pins	Black	N	Plug Housing	Bayonet Lock	Thermoplastic
Amphenol Sine Systems Corp RTS6BS10N6SHEC03	1 Backshell 1 Connector 1 O-Ring 1 Ring 1 Seal 1 Washer	20	10-6	6	UL94 V-0	Circular	IP67 IP69K	Unshielded	Backshell Coupling Nut	125 °C	-40 °C	Free Hanging (In-Line)	Crimp	Contacts Not Included	For Female Sockets	Black	N	Plug Housing	Bayonet Lock	Thermoplastic

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 9.94
		10	$ 7.62
		25	$ 6.89
		50	$ 6.39
		100	$ 5.93
		250	$ 5.40
		500	$ 5.04
		1000	$ 4.71

Description

General part information

RTS6BS10 Series

6 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell
