G-MRCO-011

Obsolete

TE Connectivity Measurement Specialties

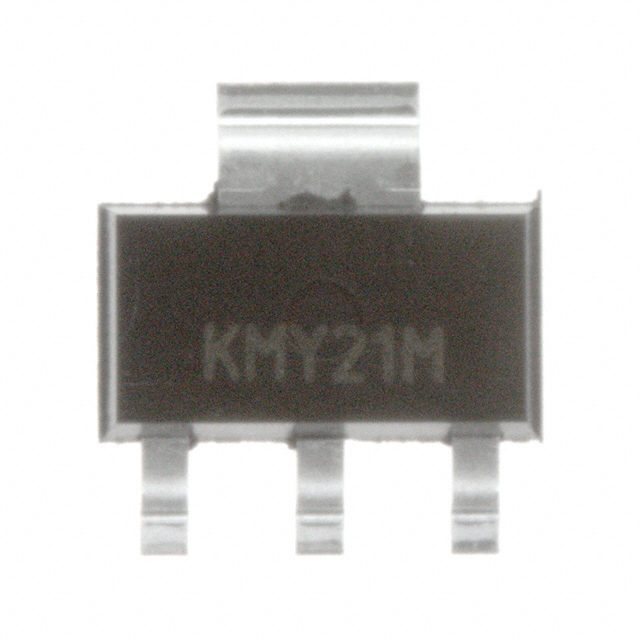

SENSOR MAGNETIC 2.5 KA/M SOT-223

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

G-MRCO-011

Obsolete

TE Connectivity Measurement Specialties

SENSOR MAGNETIC 2.5 KA/M SOT-223

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	G-MRCO-011

Axis	Single
Current - Supply (Max) [Max]	9 mA
Features	Internal Magnet
Output Type	Analog Voltage
Technology	Half Bridge

G-MRCO Series

Part	Mounting Type	Package / Case	Supplier Device Package	Termination Style	Actuator Type	Output	Output Signal	For Measuring	Linear Range [Max]	Linear Range [Min]	Linear Range [Max]	Linear Range [Min]	Voltage - Supply	Technology	Resistance	Current - Supply (Max) [Max]	Axis	Output Type	Features	Linearity	Package / Case [y]	Package / Case [x]	Rotation Angle - Electrical, Mechanical [Max]	Rotation Angle - Electrical, Mechanical [Min]	Operating Temperature [Max]	Operating Temperature [Min]
TE Connectivity Measurement Specialties G-MRCO-028	Through Hole	4-SIP Module	4-SIP
TE Connectivity Measurement Specialties G-MRCO-057	Surface Mount	12-WQFN Exposed Pad	12-TDLMP (6x2)	SMD (SMT) Tab	External Magnet Not Included	Analog Voltage	Cosine Sine	Linear Position	0.16 in	0 in	4 mm	0 mm	10 V	Magnetoresistive	2 kOhms
TE Connectivity Measurement Specialties G-MRCO-001	Surface Mount	TO-261-4 TO-261AA	SOT-223											Magnetoresistive		9 mA	Single	Analog Voltage
TE Connectivity Measurement Specialties G-MRCO-056	Surface Mount	12-WQFN Exposed Pad	12-TDLMP (6x2)	SMD (SMT) Tab	External Magnet Not Included	Analog Voltage	Cosine Sine	Linear Position	0.07 in	0 in	1.8 mm	0 mm	10 V	Magnetoresistive	2 kOhms
TE Connectivity Measurement Specialties G-MRCO-011														Half Bridge		9 mA	Single	Analog Voltage	Internal Magnet
TE Connectivity Measurement Specialties G-MRCO-051	Surface Mount	12-WQFN Exposed Pad	12-TDLMP (6x2)	SMD (SMT) Tab	External Magnet Not Included	Analog Voltage	Cosine Sine	Linear Position	0.03 in	0 in	0.8 mm	0 mm	10 V	Magnetoresistive	4 kOhms
TE Connectivity Measurement Specialties G-MRCO-015	Surface Mount	8-SOIC	8-SO	SMD (SMT) Tab	External Magnet Not Included	Wheatstone Bridge		Angle						Magnetoresistive	3.6 kOhms					0.2 %	3.9 mm	0.154 in	180 °	0 °
TE Connectivity Measurement Specialties G-MRCO-021	Surface Mount	8-WFDFN Exposed Pad	8-TDFN (2.5x2.5)	SMD (SMT) Tab	External Magnet Not Included	Wheatstone Bridge		Angle						Magnetoresistive	3.6 kOhms					0.3 %			360 °	0 °	125 °C	-40 °C
TE Connectivity Measurement Specialties G-MRCO-014	Surface Mount	SOT-223-8	SM8	SMD (SMT) Tab	External Magnet Not Included	Wheatstone Bridge		Angle						Magnetoresistive	3.6 kOhms					0.2 %			180 °	0 °
TE Connectivity Measurement Specialties G-MRCO-037	Surface Mount	8-SOIC	8-SO	Gull Wing	External Magnet Not Included	Wheatstone Bridge		Angle						Magnetoresistive	3 kOhms						3.9 mm	0.154 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

G-MRCO Series

Half Bridge Sensor Single Axis
