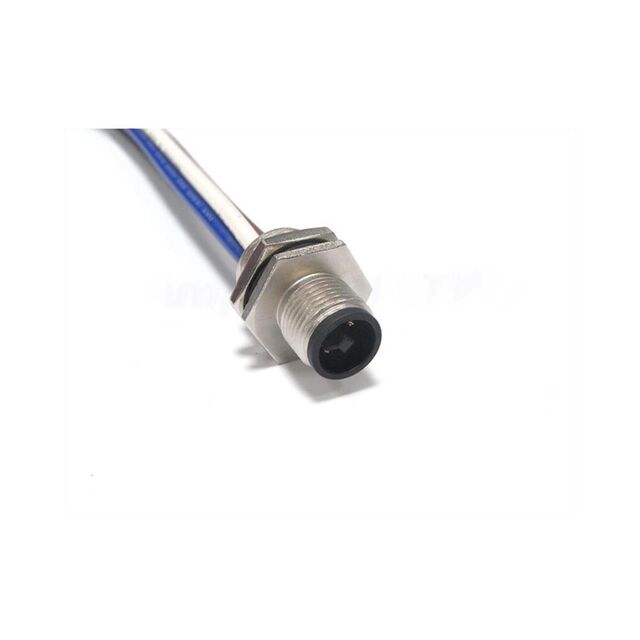

MC-05PMMS-SH8001
ActiveAmphenol LTW
M12 CONN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MC-05PMMS-SH8001
ActiveAmphenol LTW
M12 CONN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MC-05PMMS-SH8001 |
|---|---|
| 1st Connector Gender | Male Pins |
| 1st Connector Mounting Type | Panel Mount |
| 1st Connector Number of Positions | 5 |
| 1st Connector Number of Positions Loaded | All |
| 1st Connector Shell Size - Insert | M12 |
| 1st Connector Type | Receptacle |
| 2nd Connector Type | Wire Leads |
| Assembly Configuration | Standard |
| Cable Type | Individual |
| Color | Multiple |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Shielding | Unshielded |
| Usage | Industrial Environments |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.33 | |
| 10 | $ 10.04 | |||
| 30 | $ 9.66 | |||
| 50 | $ 9.27 | |||
| 100 | $ 8.76 | |||
| 250 | $ 7.98 | |||
| 500 | $ 7.47 | |||
| 1000 | $ 6.85 | |||
Description
General part information
MC-05PMMS Series
Circular Cable Assembly Unshielded 0.98' (300.00mm)
