IWC1008DR82R-3G

Active

Laird-Signal Integrity Products

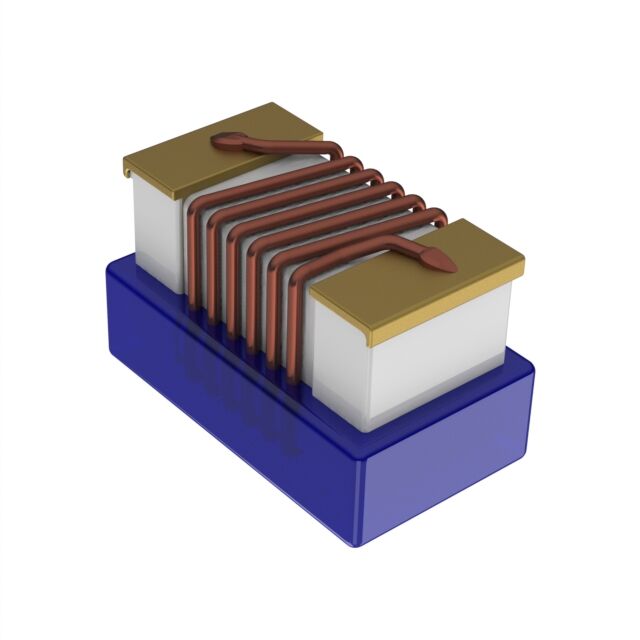

FIXED IND 820NH 400MA 1.61OHM SM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

IWC1008DR82R-3G

Active

Laird-Signal Integrity Products

FIXED IND 820NH 400MA 1.61OHM SM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	IWC1008DR82R-3G	IWC1008 Series

Current Rating (Amps)	400 mA	0.5 - 650 mA
DC Resistance (DCR)	-	1.19 - 220 mOhm
DC Resistance (DCR) [Max]	1.61 Ohm	1.05 - 910 mOhm
Frequency - Self Resonant	350 MHz	1 - 950 MHz
Height - Seated (Max) [Max]	0.088 in	0.088 in
Height - Seated (Max) [Max]	2.23 mm	2.23 mm
Inductance	820 nH	0.68 - 820 nH
Inductance Frequency - Test	25 MHz	25 - 50 MHz
Material - Core	Ceramic	Ceramic
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	1008	1008
Q @ Freq	45, 100 MHz	35 - 350 MHz
Shielding	Unshielded	Unshielded
Size / Dimension [x]	0.115 in	0.115 in
Size / Dimension [x]	2.92 mm	2.92 mm
Size / Dimension [y]	2.7 mm	2.7 mm
Size / Dimension [y]	0.106 in	0.106 in
Supplier Device Package	1008	1008
Tolerance	2 %	2 %
Type	Wirewound	Wirewound

IWC1008 Series

FIXED IND 120NH 650MA 0.63OHM SM

Part	Tolerance	Frequency - Self Resonant	Type	DC Resistance (DCR) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Inductance Frequency - Test	Inductance	Mounting Type	Current Rating (Amps)	Q @ Freq	Supplier Device Package	Package / Case	Material - Core	Shielding	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	DC Resistance (DCR)
Laird-Signal Integrity Products IWC1008FR12R-3G	2 %	950 MHz	Wirewound	630 mOhm	2.7 mm	0.115 in	2.92 mm	0.106 in	125 °C	-40 °C	25 MHz	120 nH	Surface Mount	650 mA	60, 350 MHz	1008	1008	Ceramic	Unshielded	0.088 in	2.23 mm
Laird-Signal Integrity Products IWC1008DR68R-3G	2 %	375 MHz	Wirewound	1.47 Ohm	2.7 mm	0.115 in	2.92 mm	0.106 in	125 °C	-40 °C	25 MHz	0.68 µH	Surface Mount	400 mA	45, 100 MHz	1008	1008	Ceramic	Unshielded	0.088 in	2.23 mm
Laird-Signal Integrity Products IWC1008FR10R-3G	2 %	1 GHz	Wirewound	560 mOhm	2.7 mm	0.115 in	2.92 mm	0.106 in	125 °C	-40 °C	25 MHz	100 nH	Surface Mount	650 mA	60, 350 MHz	1008	1008	Ceramic	Unshielded	0.088 in	2.23 mm
Laird-Signal Integrity Products IWC1008DR39R-3G	2 %	500 MHz	Wirewound	1.12 Ohm	2.7 mm	0.115 in	2.92 mm	0.106 in	125 °C	-40 °C	25 MHz	390 nH	Surface Mount	470 mA	45, 100 MHz	1008	1008	Ceramic	Unshielded	0.088 in	2.23 mm
Laird-Signal Integrity Products IWC1008DR82R-3G	2 %	350 MHz	Wirewound	1.61 Ohm	2.7 mm	0.115 in	2.92 mm	0.106 in	125 °C	-40 °C	25 MHz	820 nH	Surface Mount	400 mA	45, 100 MHz	1008	1008	Ceramic	Unshielded	0.088 in	2.23 mm
Laird-Signal Integrity Products IWC1008J68NR-3G	2 %	1.3 GHz	Wirewound		2.7 mm	0.115 in	2.92 mm	0.106 in	125 °C	-40 °C	50 MHz	68 nH	Surface Mount	1 A		1008	1008	Ceramic	Unshielded	0.088 in	2.23 mm	200 mOhm
Laird-Signal Integrity Products IWC1008J39NR-3G	2 %	1.5 GHz	Wirewound	150 mOhm	2.7 mm	0.115 in	2.92 mm	0.106 in	125 °C	-40 °C	50 MHz	39 nH	Surface Mount	1 A	60, 350 MHz	1008	1008	Ceramic	Unshielded	0.088 in	2.23 mm
Laird-Signal Integrity Products IWC1008J27NR-3G	2 %	1.6 GHz	Wirewound	130 mOhm	2.7 mm	0.115 in	2.92 mm	0.106 in	125 °C	-40 °C	50 MHz	27 nH	Surface Mount	1 A	55, 350 MHz	1008	1008	Ceramic	Unshielded	0.088 in	2.23 mm
Laird-Signal Integrity Products IWC1008J82NR-3G	2 %	1 GHz	Wirewound		2.7 mm	0.115 in	2.92 mm	0.106 in	125 °C	-40 °C	50 MHz	82 nH	Surface Mount	1 A	60, 350 MHz	1008	1008	Ceramic	Unshielded	0.088 in	2.23 mm	220 mOhm
Laird-Signal Integrity Products IWC1008J18NR-3G	2 %	2.5 GHz	Wirewound		2.7 mm	0.115 in	2.92 mm	0.106 in	125 °C	-40 °C	50 MHz	18 nH	Surface Mount	1 A	50, 350 MHz	1008	1008	Ceramic	Unshielded	0.088 in	2.23 mm	110 mOhm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.32
		10	$ 0.25
		25	$ 0.22
		50	$ 0.21
		100	$ 0.19
		250	$ 0.17
		500	$ 0.16
		1000	$ 0.15
	Digi-Reel®	1	$ 0.32
		10	$ 0.25
		25	$ 0.22
		50	$ 0.21
		100	$ 0.19
		250	$ 0.17
		500	$ 0.16
		1000	$ 0.15
	Tape & Reel (TR)	2000	$ 0.08

Description

General part information

IWC1008 Series

820 nH Unshielded Wirewound Inductor 400 mA 1.61Ohm Max 1008 (2520 Metric)
