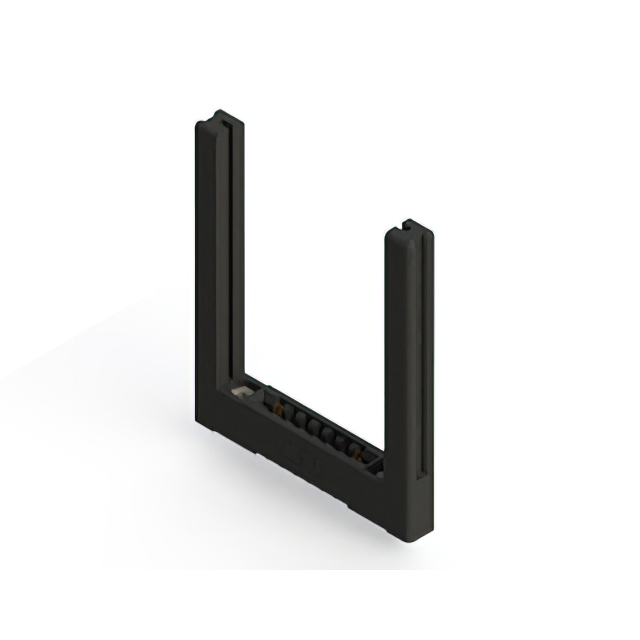

357-007-554-158
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 14POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
357-007-554-158
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 14POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 357-007-554-158 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Features | Card Guides |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Surface Mount |
| Number of Positions | 14 |
| Number of Positions/Bay/Row [custom] | 7 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder Eyelet(s) |
| Termination Rows | 1 |
357-007 Series
...
| Part | Mounting Type | Color | Contact Finish Thickness | Contact Finish Thickness | Number of Rows | Gender | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Number of Positions | Flange Feature | Number of Positions/Bay/Row [custom] | Termination Rows | Contact Finish | Material - Insulation | Card Type | Read Out | Contact Type | Pitch [x] | Pitch [x] | Features | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Surface Mount | Black | 10 Áin | 0.25 Ám | 2 | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder Eyelet(s) | -40 °C | 105 ░C | Copper Alloy | 14 | 4-40 Flush Mount Threaded Insert Top Opening | 7 | 1 | Gold | Polyester Thermoplastic | Non Specified - Dual Edge | Dual | Semi Bellows | 0.156 in | 3.96 mm | Card Guides | ||
EDAC Inc. | Through Hole | Black | 1 | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | -40 °C | 105 ░C | Copper Alloy | 7 | 4-40 Flush Mount Threaded Insert Top Opening | 7 | 1 | Tin | Polyester Thermoplastic | Non Specified - Single Edge | Single | Semi Bellows | 0.156 in | 3.96 mm | Card Guides | ||||
EDAC Inc. | Through Hole | Black | 10 Áin | 0.25 Ám | 2 | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | -40 °C | 105 ░C | Copper Alloy | 14 | 4-40 Flush Mount Threaded Insert Top Opening | 7 | 1 | Gold | Polyester Thermoplastic | Non Specified - Dual Edge | Dual | Semi Bellows | 0.156 in | 3.96 mm | Card Guides | ||
EDAC Inc. | Through Hole | Black | 10 Áin | 0.25 Ám | 1 | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | -40 °C | 105 ░C | Copper Alloy | 7 | Flush Mount Top Opening Unthreaded | 7 | 1 | Gold | Polyester Thermoplastic | Non Specified - Single Edge | Single | Semi Bellows | 0.156 in | 3.96 mm | 3.96 mm | 0.156 in | |
EDAC Inc. | Through Hole Right Angle | Black | 1 | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | -40 °C | 105 ░C | Copper Alloy | 7 | Flush Mount Top Opening Unthreaded | 7 | 1 | Tin | Polyester Thermoplastic | Non Specified - Single Edge | Single | Semi Bellows | 0.156 in | 3.96 mm | 3.96 mm | 0.156 in | |||
EDAC Inc. | Through Hole Right Angle | Black | 10 Áin | 0.25 Ám | 2 | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | -40 °C | 105 ░C | Copper Alloy | 14 | Floating Bobbin Flush Mount | 7 | 1 | Gold | Polyester Thermoplastic | Non Specified - Dual Edge | Dual | Semi Bellows | 0.156 in | 3.96 mm | 2.95 mm | 0.116 in | |
EDAC Inc. | Through Hole | Black | 1 | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | -40 °C | 105 ░C | Copper Alloy | 7 | 7 | 1 | Tin | Polyester Thermoplastic | Non Specified - Single Edge | Single | Semi Bellows | 0.156 in | 3.96 mm | ||||||
EDAC Inc. | Through Hole | Black | 10 Áin | 0.25 Ám | 2 | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | -40 °C | 105 ░C | Copper Alloy | 14 | 4-40 Flush Mount Threaded Insert Top Opening | 7 | 1 | Gold | Polyester Thermoplastic | Non Specified - Dual Edge | Dual | Semi Bellows | 0.156 in | 3.96 mm | Card Guides | ||
EDAC Inc. | Through Hole | Black | 10 Áin | 0.25 Ám | 2 | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder Eyelet(s) | -40 °C | 105 ░C | Copper Alloy | 14 | Flush Mount Top Opening Unthreaded | 7 | 1 | Gold | Polyester Thermoplastic | Non Specified - Dual Edge | Dual | Semi Bellows | 0.156 in | 3.96 mm | 3.25 mm | 0.128 " | |
EDAC Inc. | Through Hole | Black | 10 Áin | 0.25 Ám | 1 | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | -40 °C | 105 ░C | Copper Alloy | 7 | 4-40 Flush Mount Threaded Insert Top Opening | 7 | 1 | Gold | Polyester Thermoplastic | Non Specified - Single Edge | Single | Semi Bellows | 0.156 in | 3.96 mm | Card Guides |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 16.78 | |
Description
General part information
357-007 Series
14 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
