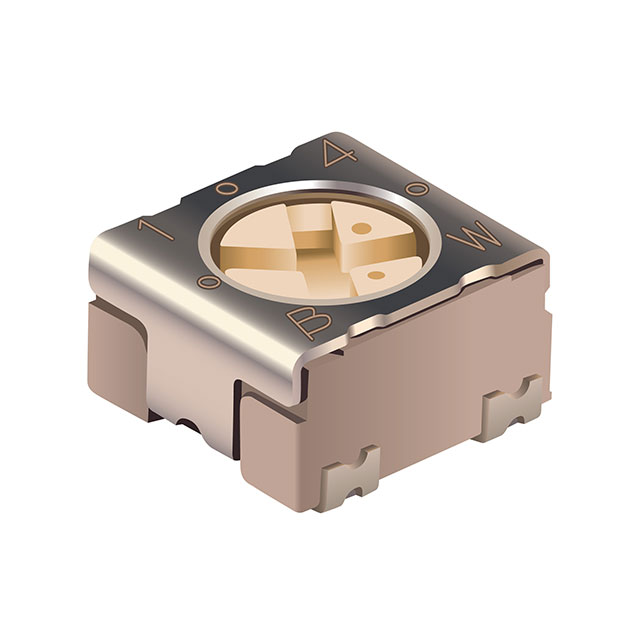

PVG3A103A01R00

Obsolete

Bourns Inc.

TRIMMER 10K OHM 0.25W J LEAD TOP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PVG3A103A01R00

Obsolete

Bourns Inc.

TRIMMER 10K OHM 0.25W J LEAD TOP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PVG3A103A01R00

Adjustment Type	Top Adjustment
Mounting Type	Surface Mount
Number of Turns	1
Power (Watts)	0.25 W
Power (Watts)	250 mW
Resistance	10000 Ohms
Resistive Material	Cermet
Size / Dimension [x]	0.142 "
Size / Dimension [x]	3.6 mm
Size / Dimension [y]	3.4 mm
Size / Dimension [y]	0.134 "
Temperature Coefficient	100 ppm/°C
Termination Style	J Lead
Tolerance	20 %

PVG3A Series

Part	Termination Style	Adjustment Type	Number of Turns	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Power (Watts)	Power (Watts)	Resistive Material	Mounting Type	Tolerance	Temperature Coefficient	Resistance	Temperature Coefficient
Bourns Inc. PVG3A503C01R00	J Lead	Top Adjustment	1	3.4 mm	0.134 "	0.142 "	3.6 mm	0.25 W	250 mW	Cermet	Surface Mount	20 %	150 ppm/°C	50 kOhms
Bourns Inc. PVG3A203A01R00	J Lead	Top Adjustment	1	3.4 mm	0.134 "	0.142 "	3.6 mm	0.25 W	250 mW	Cermet	Surface Mount	20 %	100 ppm/°C	20 kOhms
Bourns Inc. PVG3A104A01R00	J Lead	Top Adjustment	1	3.4 mm	0.134 "	0.142 "	3.6 mm	0.25 W	250 mW	Cermet	Surface Mount	20 %	100 ppm/°C	100 kOhms
Bourns Inc. PVG3A500C01R00	J Lead	Top Adjustment	1	3.4 mm	0.134 "	0.142 "	3.6 mm	0.25 W	250 mW	Cermet	Surface Mount	20 %	150 ppm/°C	50 Ohms
Bourns Inc. PVG3A103C01R00	J Lead	Top Adjustment	1	3.4 mm	0.134 "	0.142 "	3.6 mm	0.25 W	250 mW	Cermet	Surface Mount	20 %	150 ppm/°C	10000 Ohms
Bourns Inc. PVG3A502C01R00	J Lead	Top Adjustment	1	3.4 mm	0.134 "	0.142 "	3.6 mm	0.25 W	250 mW	Cermet	Surface Mount	20 %	150 ppm/°C	5 kOhms
Bourns Inc. PVG3A102C01R00	J Lead	Top Adjustment	1	3.4 mm	0.134 "	0.142 "	3.6 mm	0.25 W	250 mW	Cermet	Surface Mount	20 %		1000 Ohms	Ý150ppm/¯C
Bourns Inc. PVG3A504A01R00	J Lead	Top Adjustment	1	3.4 mm	0.134 "	0.142 "	3.6 mm	0.25 W	250 mW	Cermet	Surface Mount	20 %	100 ppm/°C
Bourns Inc. PVG3A500A01R00	J Lead	Top Adjustment	1	3.4 mm	0.134 "	0.142 "	3.6 mm	0.25 W	250 mW	Cermet	Surface Mount	20 %	250 ppm/°C	50 Ohms
Bourns Inc. PVG3A103A01R00	J Lead	Top Adjustment	1	3.4 mm	0.134 "	0.142 "	3.6 mm	0.25 W	250 mW	Cermet	Surface Mount	20 %	100 ppm/°C	10000 Ohms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

PVG3A Series

10 kOhms 0.25W, 1/4W J Lead Surface Mount Trimmer Potentiometer Cermet 1.0 Turn Top Adjustment
