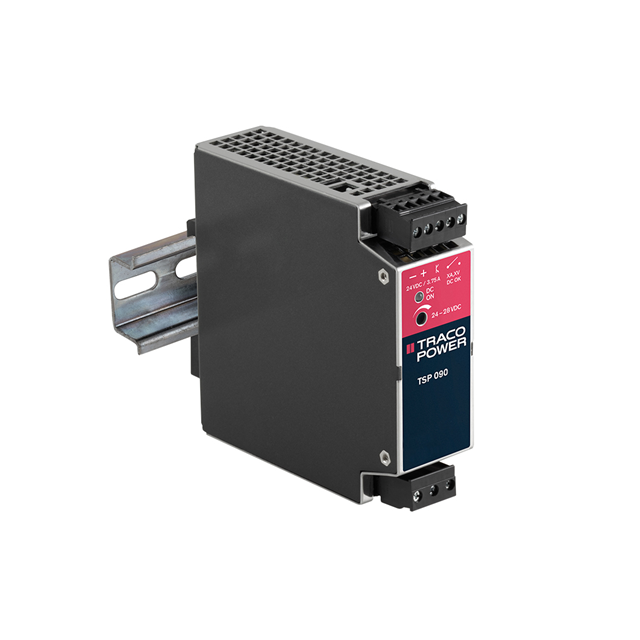

TSP 090-124 EX

Active

Traco Power

AC/DC POWER SUPPLY SINGLE-OUT 24V 3.75A 90W

Search across all available documentation for this part.

Active

Traco Power

AC/DC POWER SUPPLY SINGLE-OUT 24V 3.75A 90W

Technical Specifications

Parameters and characteristics for this part

Specification	TSP 090-124 EX

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Min]	85 VAC
Applications	ITE (Commercial), Industrial, Hazardous Locations
Approval Agency	cURus, CE, SIQ, CB
Current - Output (Max) [Max]	3.75 A
Efficiency	87 %
Features	Remote On/Off, Universal Input, IP20, Adjustable Output
Input Type	AC
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	90 W
Size / Dimension [x]	110 mm
Size / Dimension [x]	4.33 in
Size / Dimension [y]	35.1 mm
Size / Dimension [y]	1.38 "
Size / Dimension [z]	110 mm
Size / Dimension [z]	4.33 in
Voltage - Output 1	24 V

Part	Voltage - Output 1	Power (Watts)	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Approval Agency	Features	Current - Output (Max) [Max]	Number of Outputs	Applications	Input Type	Efficiency	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]
Traco Power TSP 090-124 EX	24 V	90 W	85 VAC	264 VAC	CB CE cURus SIQ	Adjustable Output IP20 Remote On/Off Universal Input	3.75 A	1	Hazardous Locations Industrial ITE (Commercial)	AC	87 %	110 mm	110 mm	35.1 mm	4.33 in	1.38 "	4.33 in	-25 °C	70 °C
Traco Power TSP 090-124N	24 V	90 W	85 VAC	264 VAC	CB CE cURus SIQ	Adjustable Output IP20 Remote On/Off Universal Input	3.75 A	1	Industrial ITE (Commercial)	AC	87 %	110 mm	110 mm	35.1 mm	4.33 in	1.38 "	4.33 in	-25 °C	70 °C
Traco Power TSP 090-124	24 V	90 W	85 VAC	264 VAC	CB CE cURus SIQ	Adjustable Output IP20 Remote On/Off Universal Input	3.75 A	1	Industrial ITE (Commercial)	AC	87 %	110 mm	110 mm	35.1 mm	4.33 in	1.38 "	4.33 in	-25 °C	70 °C
