Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | RASM712BKZ | BKZ Series |
|---|---|---|
| Actual Diameter | - | 2 - 6.3 mm |
| Actual Diameter | - | 2.5 mm |
| Actual Diameter | - | 0.098 " |
| Actual Diameter | - | 0.217 " |
| Actual Diameter | - | 5.5 mm |
| Actual Diameter [diameter] | 2.5 mm, 6.3 mm | 2 - 6.3 mm |
| Actual Diameter [diameter] | 0.098 in, 0.248 in | 0.079 - 0.248 in |
| Body Color | Black | Black, Silver |
| Body Material | Copper Alloy | Copper Alloy, Brass |
| Connector Type | Jack | Jack, Plug |
| Contact Material | Copper Alloy | Copper Alloy, Brass |
| Contact Material - Plating | - | Tin |
| Contact Material - Plating [custom] | Silver | Silver |
| Current Rating (Amps) | 5 A | 2 - 5 A |
| Gender | Male | Male, Female |
| Housing Material | Thermoplastic | Thermoplastic |
| Includes | - | 1 Connector, 1 Insulator Tube, 1 Handle |
| Industry Recognized Mating Diameter [diameter] | 5.5 mm, 2.5 mm | 2 - 5.5 mm |
| Industry Recognized Mating Diameter [diameter] | 0.098 ", 0.217 " | 0.079 - 0.217 in |
| Insulation Color | Black | Black |
| Internal Switch(s) | Single Switch, Normally Closed | Single Switch, Normally Closed |
| Internal Switch(s) | - | False |
| Mating Length/Depth | - | 0.374 in |
| Mating Length/Depth | - | 9.5 mm |
| Mounting Type | Surface Mount, Right Angle | Through Hole, Right Angle, Free Hanging (In-Line), Through Hole, Surface Mount, Right Angle |
| Number of Positions/Contacts | 3 Conductors, 2 Conductors | 2 - 3 Conductors |
| Number of Positions/Contacts | - | 2 |
| Number of Positions/Contacts | - | 2 |
| Operating Temperature [Max] | 65 °C | 65 °C |
| Operating Temperature [Min] | -30 ░C | -30 ░C |
| Shielding | Unshielded | Unshielded |
| Termination | Solder | Solder Eyelet(s), Solder |
| Voltage - Rated | 24 VDC | 24 VDC |
BKZ Series

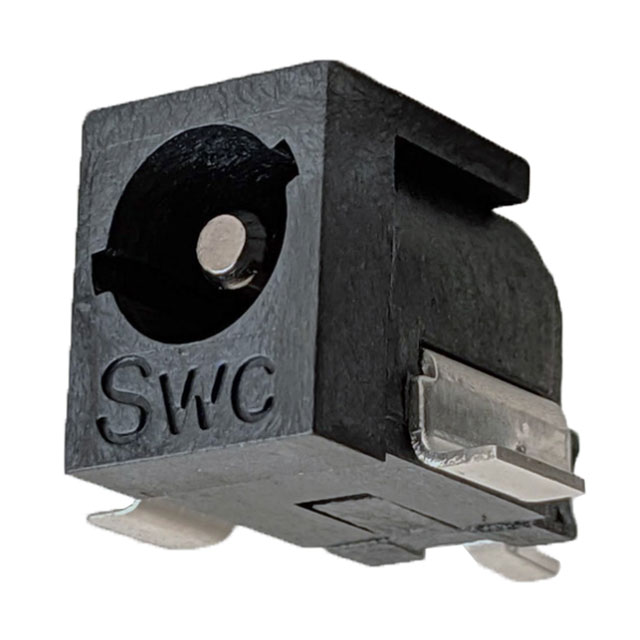

DC Power Connectors BKZ Locking Series 2.0mm Surface Mount
| Part | Actual Diameter [diameter] | Actual Diameter | Shielding | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material - Plating [custom] | Gender | Body Material | Contact Material | Number of Positions/Contacts | Industry Recognized Mating Diameter [diameter] | Industry Recognized Mating Diameter [diameter] | Body Color | Current Rating (Amps) | Connector Type | Insulation Color | Voltage - Rated | Internal Switch(s) | Housing Material | Termination | Mounting Type | Internal Switch(s) | Mating Length/Depth | Mating Length/Depth | Actual Diameter [custom] | Actual Diameter [custom] | Actual Diameter [custom] | Actual Diameter [custom] | Contact Material - Plating | Includes | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] | Actual Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. RAPC722BKZ | 0.079 in, 0.248 in | 2 mm, 6.3 mm | Unshielded | 65 °C | -30 ░C | Silver | Male | Copper Alloy | Copper Alloy | 2 Conductors, 3 Conductors | 0.079 in, 0.217 " | 2 mm, 5.5 mm | Black | 5 A | Jack | Black | 24 VDC | Normally Closed, Single Switch | Thermoplastic | Solder Eyelet(s) | Through Hole, Right Angle | ||||||||||||
Switchcraft Inc. 760BKZ | Unshielded | Female | Brass | Brass | 0.098 ", 0.217 " | 2.5 mm, 5.5 mm | Black, Silver | 5 A | Plug | Black | Thermoplastic | Solder Eyelet(s) | Free Hanging (In-Line) | 0.374 in | 9.5 mm | 2.5 mm | 0.098 " | 0.217 " | 5.5 mm | Tin | 1 Connector, 1 Handle, 1 Insulator Tube | 2 | 2 | ||||||||||
Switchcraft Inc. RASH722BKZ | 0.079 in, 0.248 in | 2 mm, 6.3 mm | Unshielded | 65 °C | -30 ░C | Silver | Male | Copper Alloy | Copper Alloy | 2 Conductors, 3 Conductors | 0.079 in, 0.217 " | 2 mm, 5.5 mm | Black | 5 A | Jack | Black | 24 VDC | Normally Closed, Single Switch | Thermoplastic | Solder | Surface Mount, Right Angle, Through Hole | ||||||||||||
Switchcraft Inc. RASH712BKZ | 0.098 in, 0.248 in | Unshielded | 65 °C | -30 ░C | Silver | Male | Copper Alloy | Copper Alloy | 2 Conductors, 3 Conductors | 0.098 ", 0.217 " | 2.5 mm, 5.5 mm | Black | 5 A | Jack | Black | 24 VDC | Normally Closed, Single Switch | Thermoplastic | Solder | Surface Mount, Right Angle, Through Hole | 2.5 mm, 6.3 mm | ||||||||||||
Switchcraft Inc. RASM722BKZ | 0.079 in, 0.248 in | 2 mm, 6.3 mm | Unshielded | 65 °C | -30 ░C | Silver | Male | Copper Alloy | Copper Alloy | 2 Conductors, 3 Conductors | 0.079 in, 0.217 " | 2 mm, 5.5 mm | Black | 5 A | Jack | Black | 24 VDC | Normally Closed, Single Switch | Thermoplastic | Solder | Surface Mount, Right Angle | ||||||||||||
Switchcraft Inc. S760BKZ | 0.079 in, 0.217 in | Unshielded | Female | Brass | Brass | 0.079 in, 0.217 " | 2 mm, 5.5 mm | Black, Silver | 2 A | Plug | Black | Thermoplastic | Solder Eyelet(s) | Free Hanging (In-Line) | 0.374 in | 9.5 mm | Tin | 1 Connector, 1 Handle, 1 Insulator Tube | 2 | 2 | 2 mm, 5.5 mm | ||||||||||||
Switchcraft Inc. RAPC712BKZ | 0.098 in, 0.248 in | Unshielded | 65 °C | -30 ░C | Silver | Male | Copper Alloy | Copper Alloy | 2 Conductors, 3 Conductors | 0.098 ", 0.217 " | 2.5 mm, 5.5 mm | Black | 5 A | Jack | Black | 24 VDC | Normally Closed, Single Switch | Thermoplastic | Solder Eyelet(s) | Through Hole, Right Angle | 2.5 mm, 6.3 mm | ||||||||||||
Switchcraft Inc. RASM712BKZ | 0.098 in, 0.248 in | Unshielded | 65 °C | -30 ░C | Silver | Male | Copper Alloy | Copper Alloy | 2 Conductors, 3 Conductors | 0.098 ", 0.217 " | 2.5 mm, 5.5 mm | Black | 5 A | Jack | Black | 24 VDC | Normally Closed, Single Switch | Thermoplastic | Solder | Surface Mount, Right Angle | 2.5 mm, 6.3 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
BKZ Series
DC Power Connectors BKZ Locking Series 2.0mm Surface Mount
