Q-1Z0150001003i

Active

Amphenol Custom Cable

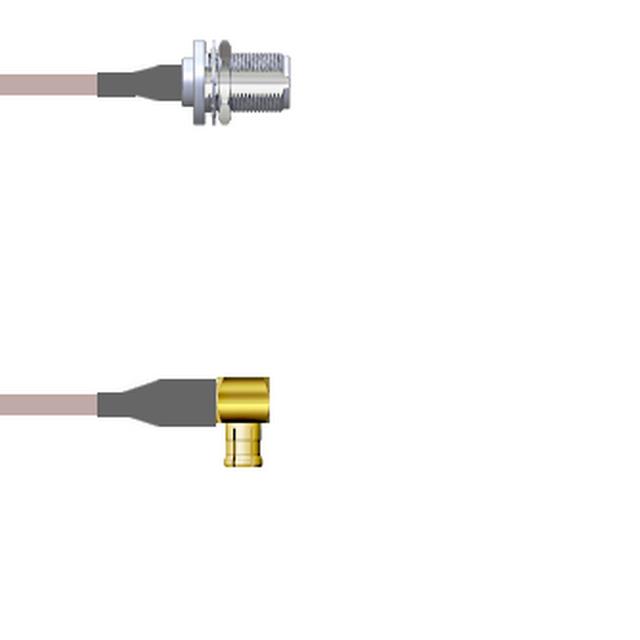

CBL ASSY MCX-NTYPE PLUG-JACK 3"

Deep-Dive with AI

Search across all available documentation for this part.

Q-1Z0150001003i

Active

Amphenol Custom Cable

CBL ASSY MCX-NTYPE PLUG-JACK 3"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1Z0150001003i

1st Connector	Right Angle, MCX Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-178
Color	Copper
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	3 in
Length	76.2 mm
Overall Impedance	50 Ohms
Style	MCX to N-Type

Q-1Z0150 Series

Part	Overall Impedance	1st Contact Gender	1st Connector Mounting Type	Features	1st Connector	Frequency - Max [Max]	Color	2nd Connector Mounting Type	2nd Connector Mounting Feature	Cable Type	2nd Connector	2nd Contact Gender	Style	Length	Length	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-1Z0150001084i	50 Ohms	Male	Free Hanging (In-Line)	Shielded	MCX Plug Right Angle	6000 MHz	Copper	Panel Mount	Bulkhead - Front Side Nut	RG-178	N-Type Jack	Female	MCX to N-Type	84 in	2.1 m	7 ft
Amphenol Custom Cable Q-1Z01500011.5M	50 Ohms	Male	Free Hanging (In-Line)	Shielded	MCX Plug Right Angle	6000 MHz	Copper	Panel Mount	Bulkhead - Front Side Nut	RG-178	N-Type Jack	Female	MCX to N-Type	59.1 in	1.5 m	4.9 ft
Amphenol Custom Cable Q-1Z0150001003i	50 Ohms	Male	Free Hanging (In-Line)	Shielded	MCX Plug Right Angle	6000 MHz	Copper	Panel Mount	Bulkhead - Front Side Nut	RG-178	N-Type Jack	Female	MCX to N-Type	3 in	76.2 mm
Amphenol Custom Cable Q-1Z0150001024i	50 Ohms	Male	Free Hanging (In-Line)	Shielded	MCX Plug Right Angle	6000 MHz	Copper	Panel Mount	Bulkhead - Front Side Nut	RG-178	N-Type Jack	Female	MCX to N-Type	24 "	609.6 mm
Amphenol Custom Cable Q-1Z0150001003M	50 Ohms	Male	Free Hanging (In-Line)	Shielded	MCX Plug Right Angle	6000 MHz	Copper	Panel Mount	Bulkhead - Front Side Nut	RG-178	N-Type Jack	Female	MCX to N-Type	118.1 in	3 m	9.8 '
Amphenol Custom Cable Q-1Z0150001012i	50 Ohms	Male	Free Hanging (In-Line)	Shielded	MCX Plug Right Angle	6000 MHz	Copper	Panel Mount	Bulkhead - Front Side Nut	RG-178	N-Type Jack	Female	MCX to N-Type	12 "	304.8 mm
Amphenol Custom Cable Q-1Z01500010.5M	50 Ohms	Male	Free Hanging (In-Line)	Shielded	MCX Plug Right Angle	6000 MHz	Copper	Panel Mount	Bulkhead - Front Side Nut	RG-178	N-Type Jack	Female	MCX to N-Type	19.69 "	50 cm
Amphenol Custom Cable Q-1Z0150001.25M	50 Ohms	Male	Free Hanging (In-Line)	Shielded	MCX Plug Right Angle	6000 MHz	Copper	Panel Mount	Bulkhead - Front Side Nut	RG-178	N-Type Jack	Female	MCX to N-Type				9.843 "	250 mm
Amphenol Custom Cable Q-1Z0150001002M	50 Ohms	Male	Free Hanging (In-Line)	Shielded	MCX Plug Right Angle	6000 MHz	Copper	Panel Mount	Bulkhead - Front Side Nut	RG-178	N-Type Jack	Female	MCX to N-Type	78.7 in	2 m	6.6 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 73.27
		25	$ 71.86
		50	$ 70.45
		100	$ 69.04
		250	$ 67.62

Description

General part information

Q-1Z0150 Series

Cable Assembly Coaxial MCX to N-Type RG-178 3.000" (76.20mm)
