8058-1G30

Obsolete

TE Connectivity AMP Connectors

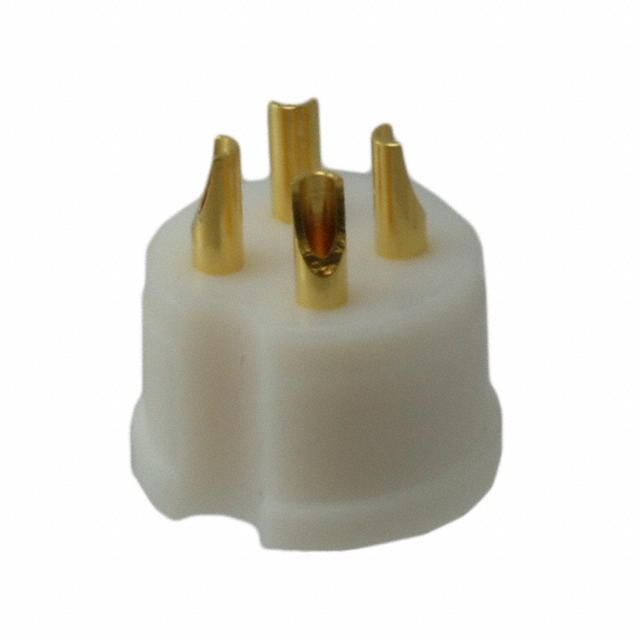

CONN TRANSIST TO-5 4POS GOLD

Search across all available documentation for this part.

Obsolete

TE Connectivity AMP Connectors

CONN TRANSIST TO-5 4POS GOLD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

4 (Round) Pos Transistor, TO-5 Socket Gold Panel Mount

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	8058-1G30	8058 Series

Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Gold	Gold
Contact Material - Mating	Beryllium Copper	Beryllium Copper
Contact Material - Post [custom]	Brass	Brass
Contact Resistance	-	20 mOhm
Current Rating (Amps)	-	3 A
Features	Closed Frame	Closed Frame
Housing Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Mounting Type	-	Through Hole
Number of Positions or Pins (Grid)	4	3 - 10
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Termination	Solder	Solder
Termination Post Length	-	3.18 mm
Termination Post Length	-	0.125 in
Type	Transistor, TO-5	Transistor, TO-5

CONN TRANSIST TO-5 8POS GOLD

Part	Contact Finish - Post	Type	Contact Resistance	Operating Temperature [Min]	Operating Temperature [Max]	Termination Post Length	Termination Post Length	Number of Positions or Pins (Grid)	Housing Material	Contact Material - Post [custom]	Current Rating (Amps)	Contact Material - Mating	Contact Finish - Mating	Features	Termination	Mounting Type
TE Connectivity AMP Connectors 8058-1G19	Gold	Transistor, TO-5	20 mOhm	-55 °C	125 °C	3.18 mm	0.125 in	8	Polytetrafluoroethylene (PTFE)	Brass	3 A	Beryllium Copper	Gold
TE Connectivity AMP Connectors 8058-1G30	Gold	Transistor, TO-5		-55 °C	125 °C			4	Polytetrafluoroethylene (PTFE)	Brass		Beryllium Copper	Gold	Closed Frame	Solder
TE Connectivity AMP Connectors 8058-1G29	Gold	Transistor, TO-5		-55 °C	125 °C			3	Polytetrafluoroethylene (PTFE)	Brass		Beryllium Copper	Gold	Closed Frame	Solder
TE Connectivity AMP Connectors 8058-39G4	Gold	Transistor, TO-5		-55 °C	125 °C			8	Polytetrafluoroethylene (PTFE)	Brass		Beryllium Copper	Gold	Closed Frame	Solder	Through Hole
TE Connectivity AMP Connectors 8058-1G45	Gold	Transistor, TO-5		-55 °C	125 °C			8	Polytetrafluoroethylene (PTFE)	Brass		Beryllium Copper	Gold	Closed Frame	Solder	Through Hole
TE Connectivity AMP Connectors 8058-1G31	Gold	Transistor, TO-5		-55 °C	125 °C			10	Polytetrafluoroethylene (PTFE)	Brass		Beryllium Copper	Gold	Closed Frame	Solder	Through Hole
TE Connectivity AMP Connectors 8058-1G32	Gold	Transistor, TO-5		-55 °C	125 °C			8	Polytetrafluoroethylene (PTFE)	Brass		Beryllium Copper	Gold	Closed Frame	Solder	Through Hole
