8058-1G32

Obsolete

TE Connectivity AMP Connectors

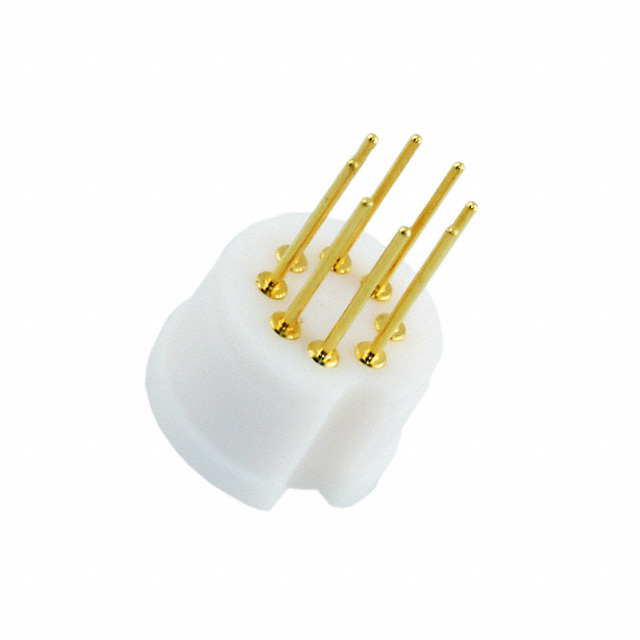

CONN TRANSIST TO-5 8POS GOLD

Search across all available documentation for this part.

Obsolete

TE Connectivity AMP Connectors

CONN TRANSIST TO-5 8POS GOLD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	8058-1G32	8058 Series

Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Gold	Gold
Contact Material - Mating	Beryllium Copper	Beryllium Copper
Contact Material - Post [custom]	Brass	Brass
Contact Resistance	-	20 mOhm
Current Rating (Amps)	-	3 A
Features	Closed Frame	Closed Frame
Housing Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Mounting Type	Through Hole	Through Hole
Number of Positions or Pins (Grid)	8	3 - 10
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Termination	Solder	Solder
Termination Post Length	-	3.18 mm
Termination Post Length	-	0.125 in
Type	Transistor, TO-5	Transistor, TO-5

CONN TRANSIST TO-5 8POS GOLD

Part	Contact Finish - Post	Type	Contact Resistance	Operating Temperature [Min]	Operating Temperature [Max]	Termination Post Length	Termination Post Length	Number of Positions or Pins (Grid)	Housing Material	Contact Material - Post [custom]	Current Rating (Amps)	Contact Material - Mating	Contact Finish - Mating	Features	Termination	Mounting Type
TE Connectivity AMP Connectors 8058-1G19	Gold	Transistor, TO-5	20 mOhm	-55 °C	125 °C	3.18 mm	0.125 in	8	Polytetrafluoroethylene (PTFE)	Brass	3 A	Beryllium Copper	Gold
TE Connectivity AMP Connectors 8058-1G30	Gold	Transistor, TO-5		-55 °C	125 °C			4	Polytetrafluoroethylene (PTFE)	Brass		Beryllium Copper	Gold	Closed Frame	Solder
TE Connectivity AMP Connectors 8058-1G29	Gold	Transistor, TO-5		-55 °C	125 °C			3	Polytetrafluoroethylene (PTFE)	Brass		Beryllium Copper	Gold	Closed Frame	Solder
TE Connectivity AMP Connectors 8058-39G4	Gold	Transistor, TO-5		-55 °C	125 °C			8	Polytetrafluoroethylene (PTFE)	Brass		Beryllium Copper	Gold	Closed Frame	Solder	Through Hole
TE Connectivity AMP Connectors 8058-1G45	Gold	Transistor, TO-5		-55 °C	125 °C			8	Polytetrafluoroethylene (PTFE)	Brass		Beryllium Copper	Gold	Closed Frame	Solder	Through Hole
TE Connectivity AMP Connectors 8058-1G31	Gold	Transistor, TO-5		-55 °C	125 °C			10	Polytetrafluoroethylene (PTFE)	Brass		Beryllium Copper	Gold	Closed Frame	Solder	Through Hole
TE Connectivity AMP Connectors 8058-1G32	Gold	Transistor, TO-5		-55 °C	125 °C			8	Polytetrafluoroethylene (PTFE)	Brass		Beryllium Copper	Gold	Closed Frame	Solder	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

8 (Round) Pos Transistor, TO-5 Socket Gold Through Hole
