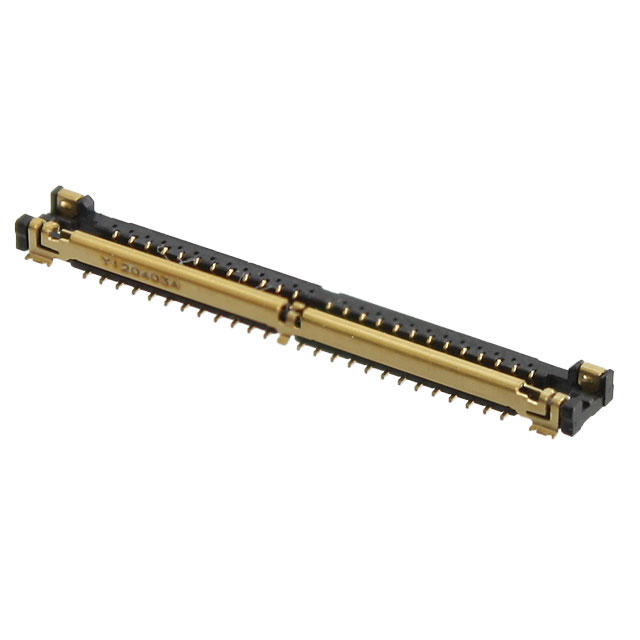

FI-JP50S-VF10-R3000

Obsolete

JAE Electronics

CONN RCPT 50POS 0.01 GOLD SMD

Search across all available documentation for this part.

Obsolete

JAE Electronics

CONN RCPT 50POS 0.01 GOLD SMD

Technical Specifications

Parameters and characteristics for this part

Specification	FI-JP50S-VF10-R3000

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Contact Type	Non-Gendered
Fastening Type	Friction Lock
Features	Pick and Place, Solder Retention
Insulation Color	Black
Insulation Height	0.042 in
Insulation Height	1.06 mm
Insulation Material	Plastic
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	50
Number of Positions Loaded	All
Number of Rows	1
Pitch - Mating	0.01 in
Pitch - Mating	0.25 mm
Style	Board to Cable/Wire
Termination	Solder

Part	Contact Finish - Mating	Termination	Number of Rows	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Number of Positions	Features	Fastening Type	Insulation Color	Number of Positions Loaded	Mounting Type	Material Flammability Rating	Contact Type	Insulation Material	Style	Contact Material	Connector Type	For Use With/Related Products	Accessory Type
JAE Electronics FI-JP50S-VF10-R3000	Gold	Solder	1	0.01 in	0.25 mm	0.042 in	1.06 mm	50	Pick and Place Solder Retention	Friction Lock	Black	All	Surface Mount	UL94 V-0	Non-Gendered	Plastic	Board to Cable/Wire	Copper Alloy	Receptacle
JAE Electronics FI-JP50C-SH1-9000								50												FI-JP Series	Shell

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

50 Position Receptacle Connector 0.010" (0.25mm) Surface Mount Gold
