SFSA240GQ1AA4TO-I-HC-226-STD

Active

SWISSBIT

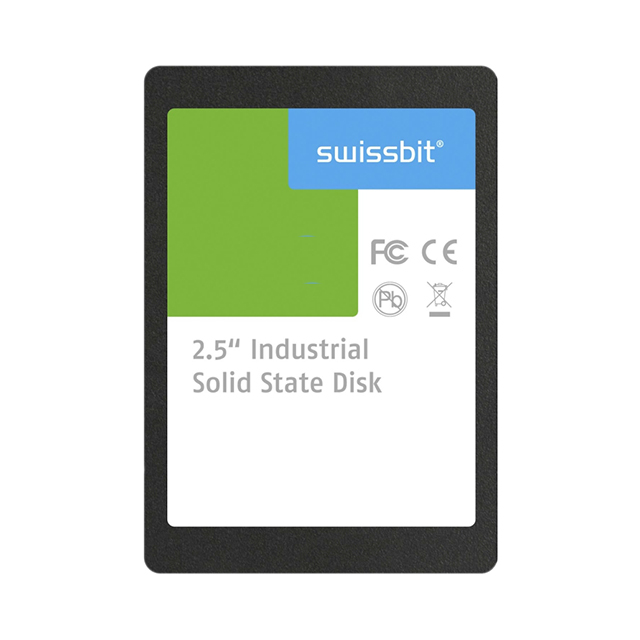

SSD, EXTERNAL, 2.5 INCH, SATA 6 GB/S (SATA III), 240 GB, MLC NAND, NON-ENCRYPTED

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsProduct Change Notice EN Technical Data Sheet EN

SFSA240GQ1AA4TO-I-HC-226-STD

Active

SWISSBIT

SSD, EXTERNAL, 2.5 INCH, SATA 6 GB/S (SATA III), 240 GB, MLC NAND, NON-ENCRYPTED

Deep-Dive with AI

DocumentsProduct Change Notice EN Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SFSA240GQ1AA4TO-I-HC-226-STD

Current - Max [Max]	615 mA
Form Factor	2.5 in
Memory Size	240 GB
Memory Type	Solid State Drive (SSD) FLASH - NAND (MLC)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Speed - Read	525 MB/s
Speed - Write	460 MB/s
Type	SATA III
Voltage - Supply	5 V, 3.3 V

SFSA240 Series

Part	Speed - Read	Voltage - Supply	Form Factor	Speed - Write	Type	Memory Size	Operating Temperature [Max]	Operating Temperature [Min]	Memory Type	Current - Max [Max]	Form Factor	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]
SWISSBIT SFSA240GQ1AA4TO-I-HC-226-STD	525 MB/s	3.3 V 5 V	2.5 in	460 MB/s	SATA III	240 GB	85 °C	-40 °C	Solid State Drive (SSD) FLASH - NAND (MLC)	615 mA
SWISSBIT SFSA240GM3AA4TO-C-OC-62P-STD	520 MB/s	3.3 V		450 MB/s	SATA III	240 GB	70 °C	0 °C	Solid State Drive (SSD) FLASH - NAND (pSLC)	610 mA	M.2 Module	80 mm	22 mm	3.6 mm
SWISSBIT SFSA240GM3AA2TO-C-OC-226-STD	520 MB/s	3.3 V		450 MB/s	SATA III	240 GB	70 °C	0 °C	Solid State Drive (SSD) FLASH - NAND (MLC)	960 mA	M.2 Module	80 mm	22 mm	3.6 mm
SWISSBIT SFSA240GV2AK4TO-I-6B-236-STD	565 MB/s			285 MB/s	SATA III	240 GB	85 °C	-40 °C	Solid State Drive (SSD) FLASH - NAND (TLC)		Slim-SATA	54 mm	39 mm	4 mm
SWISSBIT SFSA240GM3AA2TO-I-OC-226-STD	520 MB/s	3.3 V		450 MB/s	SATA III	240 GB	85 °C	-40 °C	Solid State Drive (SSD) FLASH - NAND (MLC)	960 mA	M.2 Module	80 mm	22 mm	3.6 mm
SWISSBIT SFSA240GV2AK4TO-I-6B-226-STD	565 MB/s			285 MB/s	SATA III	240 GB	85 °C	-40 °C	Solid State Drive (SSD) FLASH - NAND (TLC)		Slim-SATA	54 mm	39 mm	4 mm
SWISSBIT SFSA240GV3AA4TO-C-HC-226-STD	520 MB/s			450 MB/s	SATA III	240 GB	70 °C	0 °C	Solid State Drive (SSD) FLASH - NAND (MLC)	750 mA	Slim-SATA	54 mm	39 mm	4 mm
SWISSBIT SFSA240GV3AA4TO-I-OC-22P-STD	520 MB/s			450 MB/s	SATA III	240 GB	85 °C	-40 °C	Solid State Drive (SSD) FLASH - NAND (pSLC)	630 mA	Slim-SATA	54 mm	39 mm	4 mm
SWISSBIT SFSA240GU2AK4TO-I-6B-226-STD	565 MB/s	3.3 V		285 MB/s	SATA III	240 GB	85 °C	-40 °C	Solid State Drive (SSD) FLASH - NAND (TLC)		mSATA	2 in	29.85 mm	3.3 mm
SWISSBIT SFSA240GM3AA4TO-C-HC-626-STD	520 MB/s	3.3 V		355 MB/s	SATA III	240 GB	70 °C	0 °C	Solid State Drive (SSD) FLASH - NAND (MLC)	960 mA	M.2 Module	80 mm	22 mm	3.3 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 386.36
		10	$ 342.71
		25	$ 326.68
Newark	Each	1	$ 342.13
		5	$ 337.35
		10	$ 332.56
		25	$ 313.42

Description

General part information

SFSA240 Series

Solid State Drive (SSD) FLASH - NAND (MLC) 240GB SATA III 2.5" 3.3V, 5V

Documents

Technical documentation and resources

Product Change Notice EN

Datasheet

Technical Data Sheet EN

Datasheet
