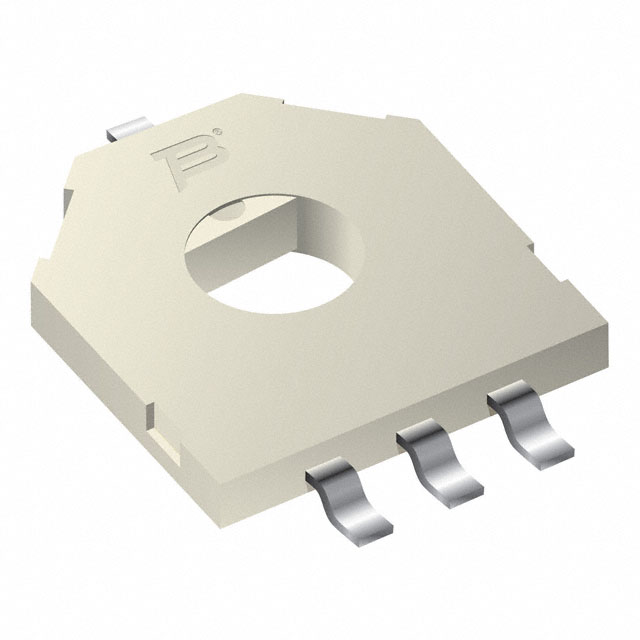

Specification	3382G-2-503G

Actuator Type	Hole for Shaft
For Measuring	Rotary Position
Linearity Tolerance	2 %
Mounting Type	Surface Mount
Operating Temperature (Max)	120 °C
Operating Temperature (Min)	-40 °C
Output	Resistive
Output Signal	Clockwise Increase
Package / Case	4-SMD, Gull Wing
Resistance	50 kOhm
Resistance Tolerance (%)	30 %
Rotation Angle - Electrical, Mechanical (Maximum)	330 °
Rotation Angle - Electrical, Mechanical (Minimum)	0 °
Rotation Angle - Electrical, Mechanical (Mode)	Continuous
Technology	Resistive
Termination Style	SMD (SMT) Tab

3382G Series

Part	Mounting Type	Output Signal	Linearity Tolerance	Termination Style	For Measuring	Operating Temperature (Max)	Operating Temperature (Min)	Technology	Rotation Angle - Electrical, Mechanical (Mode)	Rotation Angle - Electrical, Mechanical (Maximum)	Resistance Tolerance (%)	Resistance	Actuator Type	Package / Case	Output
Bourns Inc. 3382G-2-253G	Surface Mount	Clockwise Increase	2 %	SMD (SMT) Tab	Rotary Position	120 °C	-40 °C	Resistive	Continuous	330 °	30 %	25 kOhm	Hole for Shaft	4-SMD Gull Wing	Resistive
Bourns Inc. 3382G-1-104G	Surface Mount	Clockwise Increase	2 %	SMD (SMT) Tab	Rotary Position	120 °C	-40 °C	Resistive	Continuous	330 °	30 %	100 kOhm	Hole for Shaft	4-SMD Gull Wing	Resistive
Bourns Inc. 3382G-1-103G	Surface Mount	Clockwise Increase	2 %	SMD (SMT) Tab	Rotary Position	120 °C	-40 °C	Resistive	Continuous	330 °	30 %	10 kOhm	Hole for Shaft	4-SMD Gull Wing	Resistive
Bourns Inc. 3382G-1-502G	Surface Mount	Clockwise Increase	2 %	SMD (SMT) Tab	Rotary Position	120 °C	-40 °C	Resistive	Continuous	330 °	30 %	5 kOhm	Hole for Shaft	4-SMD Gull Wing	Resistive
Bourns Inc. 3382G-2-503G	Surface Mount	Clockwise Increase	2 %	SMD (SMT) Tab	Rotary Position	120 °C	-40 °C	Resistive	Continuous	330 °	30 %	50 kOhm	Hole for Shaft	4-SMD Gull Wing	Resistive
Bourns Inc. 3382G-2-104G	Surface Mount	Clockwise Increase	2 %	SMD (SMT) Tab	Rotary Position	120 °C	-40 °C	Resistive	Continuous	330 °	30 %	100 kOhm	Hole for Shaft	4-SMD Gull Wing	Resistive
Bourns Inc. 3382G-2-103G	Surface Mount	Clockwise Increase	2 %	SMD (SMT) Tab	Rotary Position	120 °C	-40 °C	Resistive	Continuous	330 °	30 %	10 kOhm	Hole for Shaft	4-SMD Gull Wing	Resistive
Bourns Inc. 3382G-1-253G	Surface Mount	Clockwise Increase	2 %	SMD (SMT) Tab	Rotary Position	120 °C	-40 °C	Resistive	Continuous	330 °	30 %	25 kOhm	Hole for Shaft	4-SMD Gull Wing	Resistive
Bourns Inc. 3382G-1-252G	Surface Mount	Clockwise Increase	2 %	SMD (SMT) Tab	Rotary Position	120 °C	-40 °C	Resistive	Continuous	330 °	30 %	2.5 kOhm	Hole for Shaft	4-SMD Gull Wing	Resistive

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

3382G-2-503G | Datasheet
