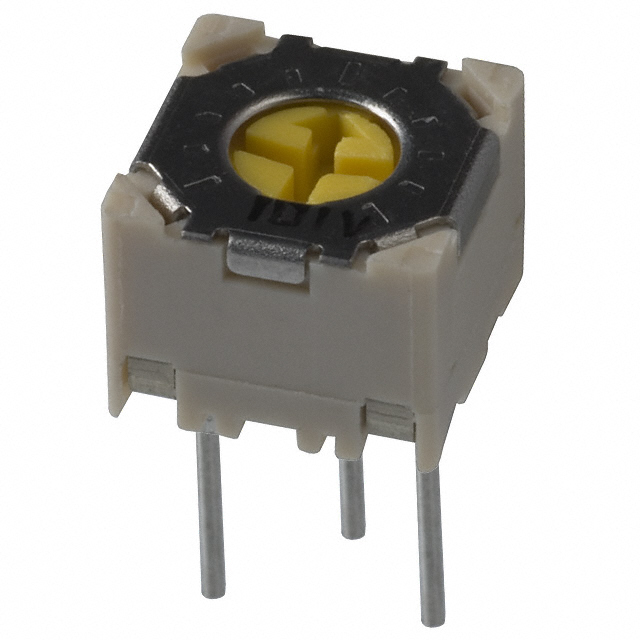

PVC6A253A01B00
ObsoleteBourns Inc.
TRIMMER 25K OHM 0.5W PC PIN TOP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PVC6A253A01B00
ObsoleteBourns Inc.
TRIMMER 25K OHM 0.5W PC PIN TOP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PVC6A253A01B00 |
|---|---|
| Adjustment Type | Top Adjustment |
| Mounting Type | Through Hole |
| Number of Turns | 1 |
| Power (Watts) | 0.5 W |
| Power (Watts) | 0.5 W |
| Resistance | 25 kOhms |
| Resistive Material | Ceramic |
| Size / Dimension [x] | 6.9 mm |
| Size / Dimension [x] | 0.272 in |
| Size / Dimension [y] | 0.272 " |
| Size / Dimension [y] | 6.9 mm |
| Temperature Coefficient | 100 ppm/°C |
| Termination Style | PC Pins |
| Tolerance | 10 % |
PVC6A Series
| Part | Power (Watts) | Power (Watts) | Number of Turns | Adjustment Type | Resistive Material | Tolerance | Mounting Type | Temperature Coefficient | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Termination Style | Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Bourns Inc. | 0.5 W | 0.5 W | 1 | Top Adjustment | Ceramic | 10 % | Through Hole | 100 ppm/°C | 0.272 " | 6.9 mm | 6.9 mm | 0.272 in | PC Pins | |
Bourns Inc. | 0.5 W | 0.5 W | 1 | Top Adjustment | Ceramic | 10 % | Through Hole | 100 ppm/°C | 0.272 " | 6.9 mm | 6.9 mm | 0.272 in | PC Pins | 1000 Ohms |
Bourns Inc. | 0.5 W | 0.5 W | 1 | Top Adjustment | Ceramic | 10 % | Through Hole | 100 ppm/°C | 0.272 " | 6.9 mm | 6.9 mm | 0.272 in | PC Pins | 5 kOhms |
Bourns Inc. | 0.5 W | 0.5 W | 1 | Top Adjustment | Ceramic | 10 % | Through Hole | 100 ppm/°C | 0.272 " | 6.9 mm | 6.9 mm | 0.272 in | PC Pins | 100 Ohms |
Bourns Inc. | 0.5 W | 0.5 W | 1 | Top Adjustment | Ceramic | 10 % | Through Hole | 100 ppm/°C | 0.272 " | 6.9 mm | 6.9 mm | 0.272 in | PC Pins | 20 kOhms |
Bourns Inc. | 0.5 W | 0.5 W | 1 | Top Adjustment | Ceramic | 10 % | Through Hole | 100 ppm/°C | 0.272 " | 6.9 mm | 6.9 mm | 0.272 in | PC Pins | 20 kOhms |
Bourns Inc. | 0.5 W | 0.5 W | 1 | Top Adjustment | Ceramic | 10 % | Through Hole | 100 ppm/°C | 0.272 " | 6.9 mm | 6.9 mm | 0.272 in | PC Pins | 25 kOhms |
Bourns Inc. | 0.5 W | 0.5 W | 1 | Top Adjustment | Ceramic | 10 % | Through Hole | 100 ppm/°C | 0.272 " | 6.9 mm | 6.9 mm | 0.272 in | PC Pins | 1000 Ohms |
Bourns Inc. | 0.5 W | 0.5 W | 1 | Top Adjustment | Ceramic | 10 % | Through Hole | 100 ppm/°C | 0.272 " | 6.9 mm | 6.9 mm | 0.272 in | PC Pins | 50 Ohms |
Bourns Inc. | 0.5 W | 0.5 W | 1 | Top Adjustment | Ceramic | 10 % | Through Hole | 100 ppm/°C | 0.272 " | 6.9 mm | 6.9 mm | 0.272 in | PC Pins | 2 kOhms |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
PVC6A Series
25 kOhms 0.5W, 1/2W PC Pins Through Hole Trimmer Potentiometer Ceramic 1.0 Turn Top Adjustment
