1460-7-00-80-00-00-03-0
ActiveMill-Max Manufacturing Corp.

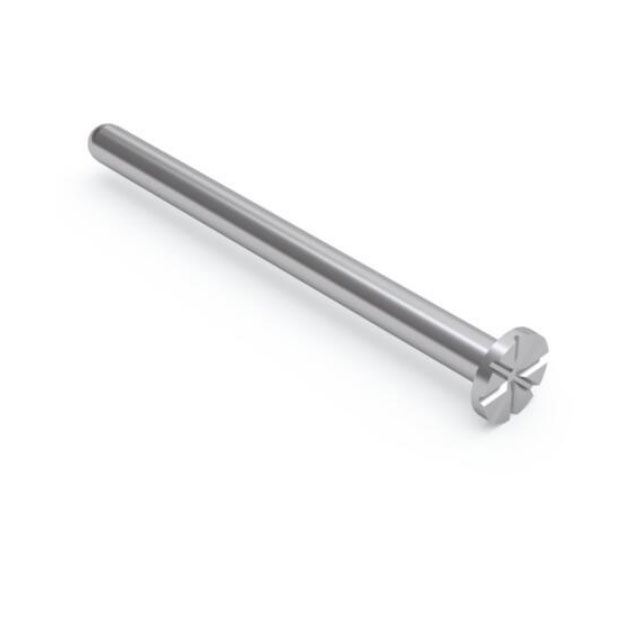

SURFACE MOUNT PIN, .625" LONG SL
Deep-Dive with AI
Search across all available documentation for this part.
1460-7-00-80-00-00-03-0
ActiveMill-Max Manufacturing Corp.
SURFACE MOUNT PIN, .625" LONG SL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1460-7-00-80-00-00-03-0 |
|---|---|
| Contact Finish | Tin |
| Contact Finish Thickness | 200 Áin |
| Contact Finish Thickness | 5.08 Ám |
| Contact Material | Brass Alloy |
| Flange Diameter [diameter] | 0.12 in |
| Flange Diameter [diameter] | 3.05 mm |
| Length - Above Flange [x] | 15.37 mm |
| Length - Above Flange [x] | 0.605 in |
| Length - Overall [x] | 15.88 mm |
| Length - Overall [x] | 0.625 in |
| Mounting Hole Diameter | 16.26 mm |
| Mounting Hole Diameter | 0.64 in |
| Mounting Type | Surface Mount |
| Pin Size - Above Flange [diameter] | 1.52 mm |
| Pin Size - Above Flange [diameter] | 0.06 in |
| Terminal Style | Single End |
| Terminal Type | PC Pin |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.31 | |
| 10 | $ 0.27 | |||
| 25 | $ 0.25 | |||
| 50 | $ 0.23 | |||
| 100 | $ 0.22 | |||
| 250 | $ 0.20 | |||
| 500 | $ 0.19 | |||
| 1000 | $ 0.17 | |||
Description
General part information
1460-7 Series
PC Pin Terminal Connector Surface Mount Tin 0.060" (1.52mm) Dia
