Technical Specifications
Parameters and characteristics for this part
| Specification | Q2-F-1/8-01-SS500FT |
|---|---|
| Color | Black |
| Features | Flame Retardant |
| Inner Diameter - Recovered [diameter] | 1.57 mm |
| Inner Diameter - Recovered [diameter] | 0.062 in |
| Inner Diameter - Supplied [diameter] | 3.18 mm |
| Inner Diameter - Supplied [diameter] | 0.125 " |
| Length | 0.062 ' |
| Length | 19.05 mm |
| Length | 0.75 " |
| Length | Enter Number of Feet in Order Quantity |
| Length [x] | 4 " |
| Length [x] | 0.333 ft |
| Length [x] | 101.6 mm |
| Material | Polyolefin (PO) |
| Operating Temperature [Max] | 135 °C |
| Operating Temperature [Min] | -55 °C |
| Recovered Wall Thickness | 0.019 " |
| Recovered Wall Thickness | 0.48 mm |
| Shelf Life | 144 Months |
| Shrink Temperature | 70 °C |
| Shrinkage Ratio | 2 to 1 |
| Spool Size | 500 ' |
| Spool Size | 152.4 m |
| Storage/Refrigeration Temperature [Max] | 40 °C |
| Storage/Refrigeration Temperature [Min] | -10 °C, -50 °F |
| Type | Tubing, Flexible |
Q2-F-1/8 Series
| Part | Shelf Life | Color | Recovered Wall Thickness | Recovered Wall Thickness | Inner Diameter - Recovered [diameter] | Inner Diameter - Recovered [diameter] | Shrinkage Ratio | Storage/Refrigeration Temperature [Min] | Storage/Refrigeration Temperature [Max] | Material | Shrink Temperature | Operating Temperature [Max] | Operating Temperature [Min] | Type | Inner Diameter - Supplied [diameter] | Inner Diameter - Supplied [diameter] | Features | Length | Length | Length [x] | Length [x] | Length [x] | Length | Spool Size | Spool Size | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Qualtek | 144 Months | Black | 0.019 " | 0.48 mm | 1.57 mm | 0.062 in | 2 to 1 | -50 °F -10 °C | 40 °C | Polyolefin (PO) | 70 °C | 135 °C | -55 °C | Tubing Flexible | 3.18 mm | 0.125 " | Flame Retardant | 15.2 m | 50 ft | |||||||
Qualtek | 144 Months | Black | 0.019 " | 0.48 mm | 1.57 mm | 0.062 in | 2 to 1 | -50 °F -10 °C | 40 °C | Polyolefin (PO) | 70 °C | 135 °C | -55 °C | Tubing Flexible | 3.18 mm | 0.125 " | Flame Retardant | 19.05 mm | 0.062 ' | 4 " | 0.333 ft | 101.6 mm | 0.75 " | 500 ' | 152.4 m | Enter Number of Feet in Order Quantity |
Qualtek | 144 Months | Black | 0.019 " | 0.48 mm | 1.57 mm | 0.062 in | 2 to 1 | -50 °F -10 °C | 40 °C | Polyolefin (PO) | 70 °C | 135 °C | -55 °C | Tubing Flexible | 3.18 mm | 0.125 " | Flame Retardant | 4 ft | 1.22 m | |||||||
Qualtek | 144 Months | Black | 0.019 " | 0.48 mm | 1.57 mm | 0.062 in | 2 to 1 | -50 °F -10 °C | 40 °C | Polyolefin (PO) | 70 °C | 135 °C | -55 °C | Tubing Flexible | 3.18 mm | 0.125 " | Flame Retardant | 100 ft | 30.5 m |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 50 | $ 0.05 | |
| 50 | $ 0.02 | |||
| 50 | $ 0.02 | |||
| 100 | $ 0.05 | |||
| 100 | $ 0.02 | |||
| 100 | $ 0.02 | |||
| 150 | $ 0.05 | |||
| 250 | $ 0.04 | |||
| 250 | $ 0.02 | |||
| 250 | $ 0.02 | |||
| 350 | $ 0.04 | |||
| 500 | $ 0.02 | |||
| 500 | $ 0.04 | |||
| 500 | $ 0.02 | |||
| 1250 | $ 0.02 | |||
| 1250 | $ 0.03 | |||
| 1250 | $ 0.02 | |||
| 2500 | $ 0.03 | |||
| 5000 | $ 0.03 | |||
| Digi-Spool®, Continuous Spool | 1 | $ 0.63 | ||
| 5 | $ 0.57 | |||
| 10 | $ 0.43 | |||
| 25 | $ 0.41 | |||
| 50 | $ 0.39 | |||
| 100 | $ 0.36 | |||
Description
General part information
Q2-F-1/8 Series

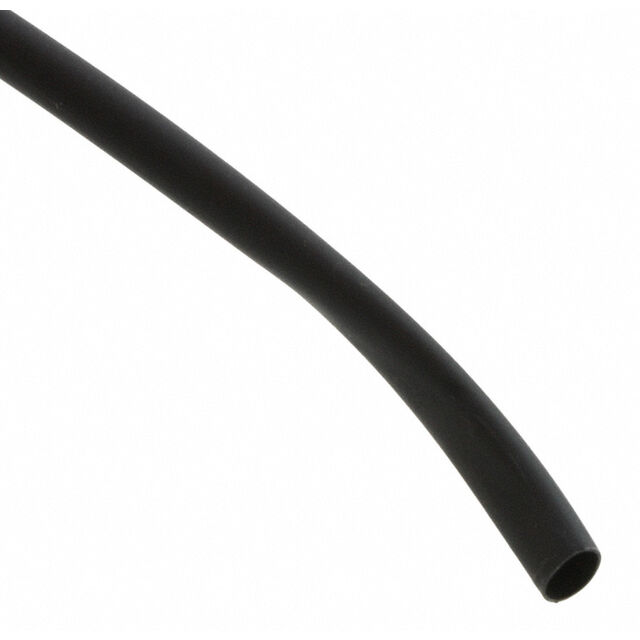

Heat Shrink Tubing, Flexible 0.125" (3.18mm) 2 to 1 Black 0.062' (19.05mm, 0.75")
