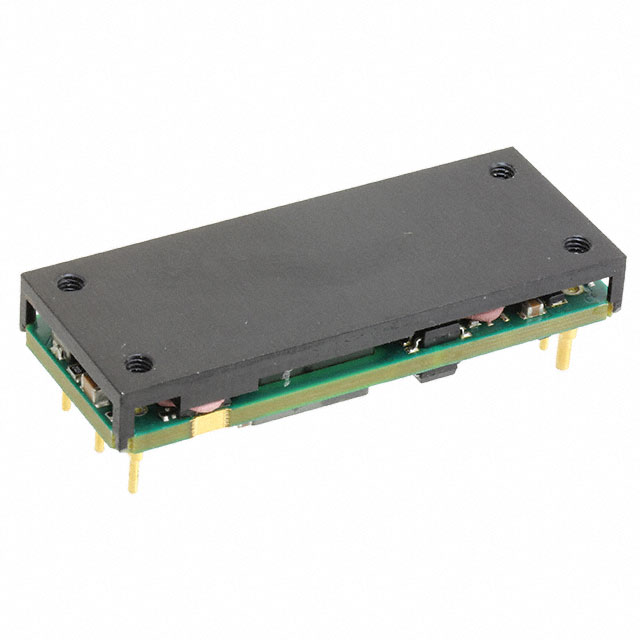

UEE-5/30-D48PB-C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 5V 150W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UEE-5/30-D48PB-C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 5V 150W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | UEE-5/30-D48PB-C | UEE-5 Series |
|---|---|---|
| Applications | ITE (Commercial) | ITE (Commercial) |
| Control Features | Active High, Enable | Active High, Enable, Active Low |
| Current - Output (Max) [Max] | 30 A | 30 A |
| Efficiency | 92 % | 92 % |
| Features | OCP, UVLO, OTP, Remote On/Off, SCP, OVP | OCP, UVLO, OTP, Remote On/Off, SCP, OVP |
| Mounting Type | Through Hole | Through Hole, Surface Mount |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 8-DIP Module, 1/8 Brick | 8-DIP Module, 1/8 Brick, 8-SMD Module |
| Power (Watts) | 150 W | 150 W |
| Size / Dimension [x] | 58.4 mm | 58.4 mm |
| Size / Dimension [x] | 2.3 in | 2.3 in |
| Size / Dimension [y] | 22.9 mm | 22.9 mm |
| Size / Dimension [y] | 0.9 " | 0.9 " |
| Size / Dimension [z] | 12.7 mm | 10.7 - 12.7 mm |
| Size / Dimension [z] | 0.5 in | 0.42 - 0.5 in |
| Type | Isolated Module | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V | 75 V |
| Voltage - Input (Min) [Min] | 36 V | 36 V |
| Voltage - Isolation | 2250 VDC | 2250 VDC |
| Voltage - Output 1 | 5 V | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 42 | $ 47.74 | |
UEE-5 Series
DC DC CONVERTER 5V 150W
| Part | Voltage - Input (Min) [Min] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Voltage - Input (Max) [Max] | Type | Number of Outputs | Features | Mounting Type | Control Features | Current - Output (Max) [Max] | Efficiency | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Voltage - Output 1 | Power (Watts) | Voltage - Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. UEE-5/30-D48PB-C | 36 V | 22.9 mm | 58.4 mm | 12.7 mm | 0.5 in | 2.3 in | 0.9 " | 75 V | Isolated Module | 1 | OCP, OTP, OVP, Remote On/Off, SCP, UVLO | Through Hole | Active High, Enable | 30 A | 92 % | ITE (Commercial) | 85 °C | -40 °C | 1/8 Brick, 8-DIP Module | 5 V | 150 W | 2250 VDC |
Murata Power Solutions Inc. UEE-5/30-D48PM-C | 36 V | 22.9 mm | 58.4 mm | 10.7 mm | 0.42 in | 2.3 in | 0.9 " | 75 V | Isolated Module | 1 | OCP, OTP, OVP, Remote On/Off, SCP, UVLO | Surface Mount | Active High, Enable | 30 A | 92 % | ITE (Commercial) | 85 °C | -40 °C | 1/8 Brick, 8-SMD Module | 5 V | 150 W | 2250 VDC |
Murata Power Solutions Inc. UEE-5/30-D48NM-C | 36 V | 22.9 mm | 58.4 mm | 10.7 mm | 0.42 in | 2.3 in | 0.9 " | 75 V | Isolated Module | 1 | OCP, OTP, OVP, Remote On/Off, SCP, UVLO | Surface Mount | Active Low, Enable | 30 A | 92 % | ITE (Commercial) | 85 °C | -40 °C | 1/8 Brick, 8-SMD Module | 5 V | 150 W | 2250 VDC |
Description
General part information
UEE-5 Series
Isolated Module DC DC Converter 1 Output 5V 30A 36V - 75V Input
