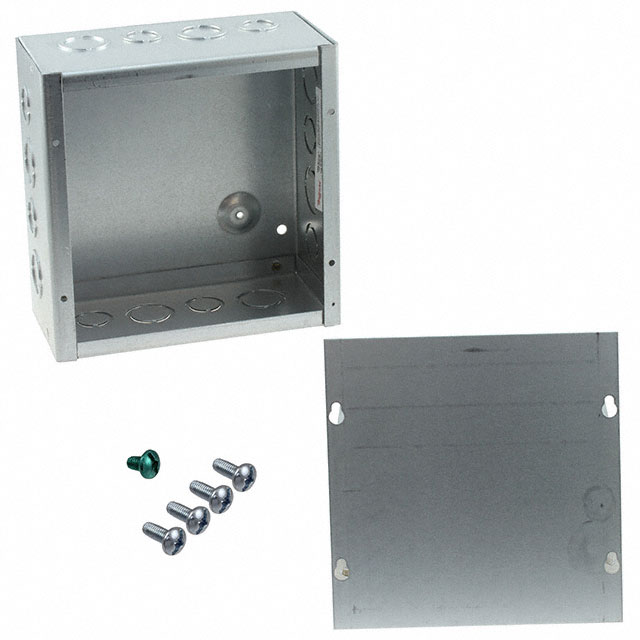

ASG8X8X4
ActiveHoffman Enclosures, Inc.
JUNCTION BOX STL 7.99"L X 7.99"W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ASG8X8X4
ActiveHoffman Enclosures, Inc.
JUNCTION BOX STL 7.99"L X 7.99"W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ASG8X8X4 |
|---|---|
| Area (L x W) | 412 cm² |
| Area (L x W) | 63.9 in² |
| Color | Gray |
| Container Type | Junction Box |
| Design | Cover Included |
| Features | Wall Mount, Knockouts |
| Height [z] | 4.016 in |
| Height [z] | 102 mm |
| Material | Metal, Steel |
| Ratings | NEMA 1, 50E, UL-50, IP30 |
| Size / Dimension [x] | 203 mm |
| Size / Dimension [x] | 7.992 in |
| Size / Dimension [y] | 7.992 in |
| Size / Dimension [y] | 203 mm |
| Weight | 2.1 kg |
| Weight | 4.7 lbs |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 42.55 | |
| 5 | $ 40.04 | |||
| 10 | $ 37.54 | |||
| 25 | $ 35.04 | |||
| 50 | $ 34.41 | |||
| 100 | $ 33.79 | |||
| 250 | $ 33.29 | |||
Description
General part information
ASG8X8 Series
Junction Box Metal, Steel Gray Cover Included 7.992" L x 7.992" W (203.00mm x 203.00mm) X 4.016" (102.00mm)
