EN2P3F20

Active

Switchcraft Inc.

CONN RCPT FMALE 3POS GOLD CRIMP

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN RCPT FMALE 3POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	EN2P3F20

Applications	Marine, Communication Systems, Medical, Industrial
Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	2 A
Fastening Type	Bayonet Lock
Ingress Protection	IP68, IP66, IP67
Insert Material	Elastomer
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Termination	Crimp, Solder Cup
Voltage Rating	125 VAC

CONN RCPT FMALE 3POS GOLD CRIMP

Part	Insert Material	Ingress Protection	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Feature	Voltage Rating	Termination	Current Rating (Amps)	Contact Material	Color	Contact Finish - Mating	Shielding	Applications	Fastening Type	Orientation	Primary Material	Material Flammability Rating
Switchcraft Inc. EN2P3F20	Elastomer	IP66, IP67, IP68	Receptacle, Female Sockets	85 °C	-40 °C	Bulkhead - Front Side Nut	125 VAC	Crimp, Solder Cup	2 A	Copper Alloy	Black	Gold	Unshielded	Communication Systems, Industrial, Marine, Medical	Bayonet Lock	Keyed	Plastic	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

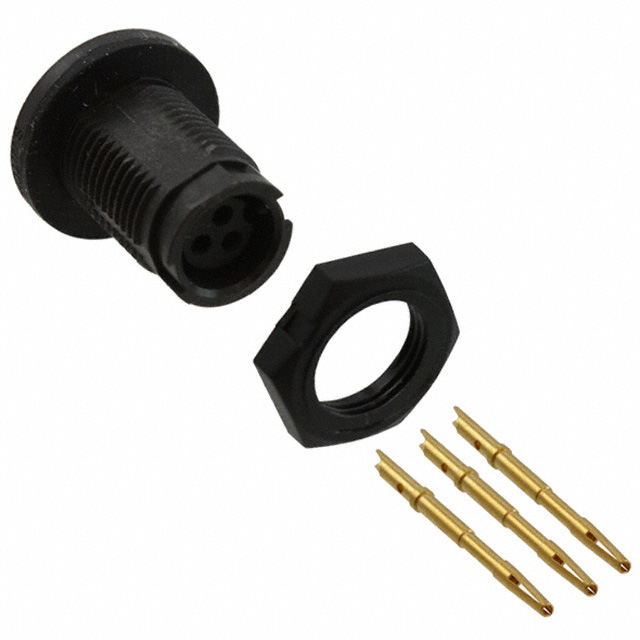

3 Position Circular Connector Receptacle, Female Sockets Crimp or Solder Cup
