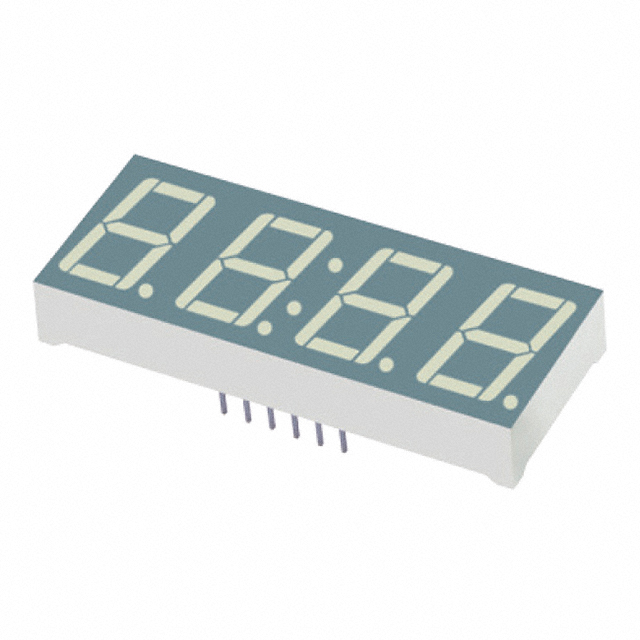

XDUY14C4-A

Active

SunLED

DISP 7SEG 0.56" QUAD YLW 12DIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XDUY14C4-A

Active

SunLED

DISP 7SEG 0.56" QUAD YLW 12DIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XDUY14C4-A

Color	Yellow
Common Pin	Common Cathode
Current - Test	10 mA
Digit/Alpha Size	0.56 in
Digit/Alpha Size	14.22 mm
Display Type	7-Segment
Millicandela Rating	2 mcd
Number of Characters	4
Package / Case	15.24 mm
Package / Case	0.6 in
Package / Case	12-DIP
Power Dissipation (Max) [Max]	75 mw
Size / Dimension [x]	0.748 in
Size / Dimension [x]	19 mm
Size / Dimension [y]	50.3 mm
Size / Dimension [y]	1.98 in
Size / Dimension [z]	0.319 in
Size / Dimension [z]	8.1 mm
Voltage - Forward (Vf) (Typ)	1.95 V
Wavelength - Peak	590 nm

XDUY14 Series

Part	Display Type	Power Dissipation (Max) [Max]	Current - Test	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Millicandela Rating	Common Pin	Package / Case	Package / Case	Package / Case	Wavelength - Peak	Number of Characters [custom]	Voltage - Forward (Vf) (Typ)	Digit/Alpha Size	Digit/Alpha Size	Color	Number of Characters
SunLED XDUY14A	7-Segment	75 mw	10 mA	12.7 mm	0.75 in	19.05 mm	8 mm	0.315 "	0.5 in	6.5 mcd	Common Anode	0.6 in	15.24 mm	10-DIP	590 nm	1	1.95 V	0.56 in	14.22 mm	Yellow
SunLED XDUY14C4-A	7-Segment	75 mw	10 mA	50.3 mm	0.748 in	19 mm	8.1 mm	0.319 in	1.98 in	2 mcd	Common Cathode	0.6 in	15.24 mm	12-DIP	590 nm		1.95 V	0.56 in	14.22 mm	Yellow	4

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	2000	$ 3.11

Description

General part information

XDUY14 Series

Display Modules - LED Character and Numeric Yellow 7-Segment 4 Character Common Cathode 1.95V 10mA 0.748" H x 1.980" W x 0.319" D (19.00mm x 50.30mm x 8.10mm) 12-DIP (0.600", 15.24mm)
