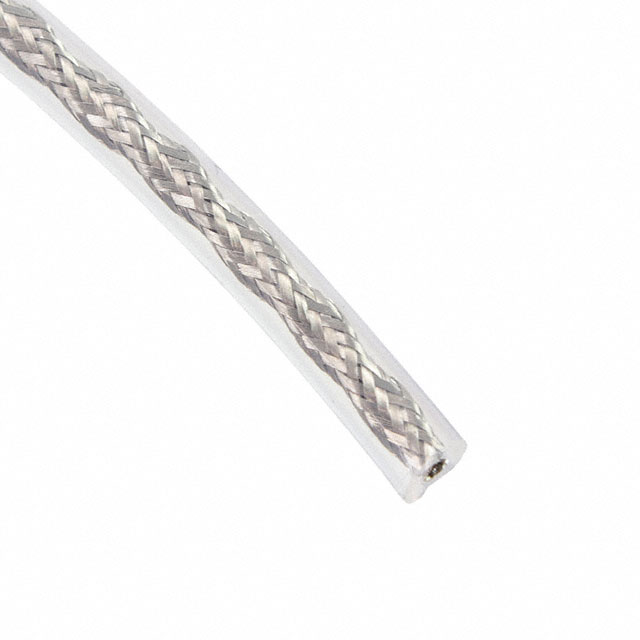

Specification	969M101-28-1TPS-025

Cable Type	Conductor, Multi
Conductor Arrangement	Twisted
Conductor Material	Tinned, Copper
Jacket (Insulation) Diameter	0.12 in
Jacket (Insulation) Material	Flexx-Sil™
Jacket Color	Clear
Length	25 ft
Number of Conductors	2
Number of Conductors - Pair	1
Operating Temperature (Max)	165 °C
Operating Temperature (Min)	-65 °C
Shield Coverage	90 %
Shield Type	Braid
Voltage	12 kVDC
Wire Gauge	28 AWG

969M101 Series

...

Part	Current Rating	Conductor Material	Insulation Resistance	Shielding	Voltage	Ratings	Length	Wire Gauge	Number of Conductors	Conductor Arrangement	Number of Conductors - Pair	Features	Jacket Color	Cable Type	Operating Temperature (Min)	Operating Temperature (Max)	Ribbon Width	Jacket (Insulation) Material	Ribbon Thickness	Length	Jacket (Insulation) Diameter
Cicoil 969M101-24-2TPS-025	8 A	Copper Tinned	200 MOhm	Shielded	12 kVDC	CE UL E324413	25 ft	24 AWG	4	Twisted	2	Hi-Flex	Clear	Flat Cable	-65 °C	165 °C	0.25 in	Flexx-Sil™	0.141 in
Cicoil 969M101-18-6-050	20 A	Copper Tinned	200 MOhm	Unshielded	20 kV	CE UL E324413	50 ft	18 AWG	6			Hi-Flex	Clear	Flat Cable	-65 °C	165 °C	0.622 in	Flexx-Sil™	0.141 in
Cicoil 969M101-26-2	6 A	Copper Tinned	200 MOhm	Unshielded	12 kVDC	CE UL E324413	100 ft 1000 ft	26 AWG	2			Hi-Flex	Clear	Flat Cable	-65 °C	165 °C	0.14 in	Flexx-Sil™	0.09 in
Cicoil 969M101-12-4-050	36 A	Copper Tinned	200 MOhm	Unshielded	20 kV	CE UL E324413	50 ft	12 AWG	4			Hi-Flex	Clear	Flat Cable	-65 °C	165 °C	0.75 in	Flexx-Sil™	0.24 in
Cicoil 969M101-14-1		Copper Tinned			42 kV		25 ft 50 ft 100 ft 1000 ft	14 AWG					Clear	Hook-Up	-65 °C	165 °C		Flexx-Sil™		Enter Number of Feet in Order Quantity	0.28 in
Cicoil 969M101-22-12-050	11 A	Copper Tinned	200 MOhm	Unshielded	18 kV	CE UL E324413	50 ft	22 AWG	12			Hi-Flex	Clear	Flat Cable	-65 °C	165 °C	0.87 in	Flexx-Sil™	0.11 in
Cicoil 969M101-12-1		Copper Tinned			42 kV		25 ft 50 ft 100 ft 1000 ft	12 AWG					Clear	Hook-Up	-65 °C	165 °C		Flexx-Sil™		Enter Number of Feet in Order Quantity	0.3 in
Cicoil 969M101-26-2TPS-025	6 A	Copper Tinned	200 MOhm	Shielded	12 kVDC	CE UL E324413	25 ft	26 AWG	4	Twisted	2	Hi-Flex	Clear	Flat Cable	-65 °C	165 °C	0.236 in	Flexx-Sil™	0.13 in
Cicoil 969M101-8-1-050		Copper Tinned			42 kV		50 ft	8 AWG					Clear	Hook-Up	-65 °C	165 °C		Flexx-Sil™			0.39 in
Cicoil 969M101-10-1-050		Copper Tinned			42 kV		50 ft	10 AWG					Clear	Hook-Up	-65 °C	165 °C		Flexx-Sil™			0.33 in
