969M101-18-6-050

Active

Cicoil

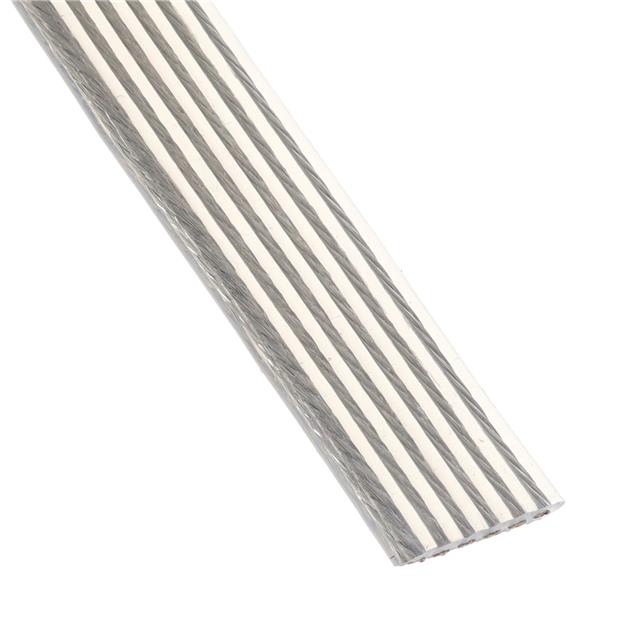

CABLE RIBBON 6COND CLEAR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

969M101-18-6-050

Active

Cicoil

CABLE RIBBON 6COND CLEAR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	969M101-18-6-050

Cable Type	Flat Cable
Conductor Material	Copper, Tinned
Current Rating (Amps)	20 A
Features	Hi-Flex
Insulation Resistance	200 MOhm
Jacket (Insulation) Material	Flexx-Sil™
Jacket Color	Clear
Length	15.24 m
Length	50 ft
Number of Conductors	6
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Ratings	CE, UL E324413
Ribbon Thickness	0.141 "
Ribbon Thickness	3.58 mm
Ribbon Width	15.8 mm
Ribbon Width	0.622 "
Shielding	Unshielded
Wire Gauge	18 AWG

969M101 Series

...

Part	Ribbon Thickness	Ribbon Thickness	Cable Type	Conductor Material	Jacket Color	Features	Wire Gauge	Jacket (Insulation) Material	Shielding	Ratings	Current Rating (Amps)	Ribbon Width	Ribbon Width	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Resistance	Length	Length	Number of Conductors	Ribbon Width [custom]	Ribbon Width [custom]	Length [x]	Length [x]	Voltage	Ribbon Thickness	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Ribbon Width [custom]	Ribbon Width [custom]	Ribbon Width
Cicoil 969M101-18-6-050	0.141 "	3.58 mm	Flat Cable	Copper Tinned	Clear	Hi-Flex	18 AWG	Flexx-Sil™	Unshielded	CE UL E324413	20 A	15.8 mm	0.622 "	-65 ░C	165 °C	200 MOhm	15.24 m	50 ft	6
Cicoil 969M101-26-2	0.09 "	2.28 mm	Flat Cable	Copper Tinned	Clear	Hi-Flex	26 AWG	Flexx-Sil™	Unshielded	CE UL E324413	6 A			-65 ░C	165 °C	200 MOhm	304.8 m	1000 ft	2	3.56 mm	0.14 in	100 ft	30.48 m	12 kV
Cicoil 969M101-12-4-050		0.24 in	Flat Cable	Copper Tinned	Clear	Hi-Flex	12 AWG	Flexx-Sil™	Unshielded	CE UL E324413	36 A	19.05 mm	0.75 "	-65 ░C	165 °C	200 MOhm	15.24 m	50 ft	4						6.09 mm
Cicoil 969M101-12-1			Hook-Up	Copper Tinned	Clear		12 AWG	Flexx-Sil™						-65 ░C	165 °C		15.24 m 304.8 m	1000 ft				50 ft 100 ft	30.5 m	42 kV		7.62 mm	0.3 in
Cicoil 969M101-26-2TPS-025	0.13 in	3.3 mm	Flat Cable	Copper Tinned	Clear	Hi-Flex	26 AWG	Flexx-Sil™	Shielded	CE UL E324413	6 A	6 mm	0.236 in	-65 ░C	165 °C	200 MOhm	7.62 m	25 ft	4					12 kV
Cicoil 969M101-8-1-050			Hook-Up	Copper Tinned	Clear		8 AWG	Flexx-Sil™						-65 ░C	165 °C		15.24 m					50 ft		42 kV		9.91 mm	0.39 in
Cicoil 969M101-22-4-SMC-025	0.11 in	2.79 mm	Flat Cable	Copper Tinned	Clear	Hi-Flex	22 AWG	Flexx-Sil™	Shielded	CE UL E324413	11 A	8.13 mm	0.32 in	-65 ░C	165 °C	200 MOhm	7.62 m	25 ft	4					18 kV
Cicoil 969M101-20-3-050	0.12 in	3.05 mm	Flat Cable	Copper Tinned	Clear	Hi-Flex	20 AWG	Flexx-Sil™	Unshielded	CE UL E324413	13 A			-65 ░C	165 °C	200 MOhm	15.24 m	50 ft	3					18 kV				7.11 mm	0.28 "
Cicoil 969M101-18-10-050	0.141 "	3.58 mm	Flat Cable	Copper Tinned	Clear	Hi-Flex	18 AWG	Flexx-Sil™	Unshielded	CE UL E324413	20 A	1 in		-65 ░C	165 °C	200 MOhm	15.24 m	50 ft	10											25.4 mm
Cicoil 969M101-16-8-025	0.15 in	3.81 mm	Flat Cable	Copper Tinned	Clear	Hi-Flex	16 AWG	Flexx-Sil™	Unshielded	CE UL E324413	26 A	23.36 mm	0.92 in	-65 ░C	165 °C	200 MOhm	7.62 m	25 ft	8

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 472.18
		3	$ 436.83
		5	$ 421.68
		7	$ 411.57
		10	$ 401.48
		25	$ 376.22

Description

General part information

969M101 Series

Flat Ribbon Cable Clear 6 Conductors Flat Cable 50.0' (15.24m)
