EZG.0B.306.CLN

Active

LEMO

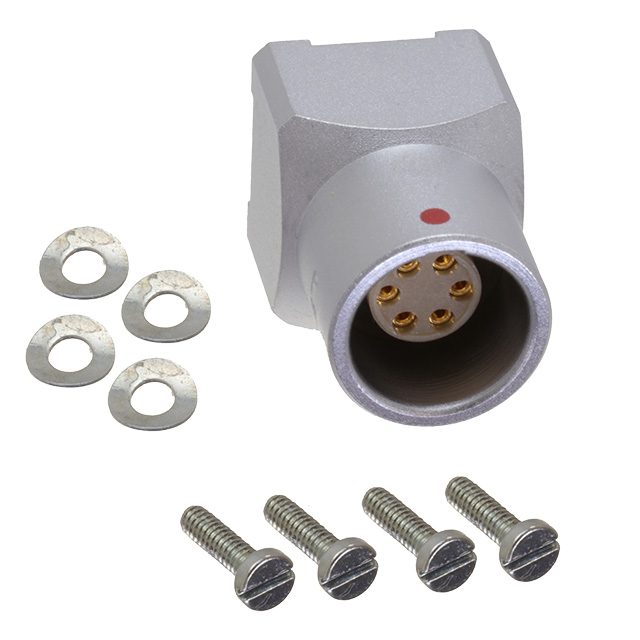

CONN RCPT FMALE 6POS GOLD SOLDER

Search across all available documentation for this part.

Active

LEMO

CONN RCPT FMALE 6POS GOLD SOLDER

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Circular Connector Receptacle, Female Sockets Solder

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	EZG.0B.306.CLN	EZG.0B Series

Color	Silver	Silver
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	59 Áin	59 Áin
Contact Finish Thickness - Mating	1.5 Ám	1.5 Ám
Contact Material	Bronze	Bronze
Current Rating (Amps)	2.5 A	2 - 8 A
Fastening Type	Push-Pull	Push-Pull
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	6	6 - 9
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	G	G
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	306	303 - 309
Shielding	Shielded	Shielded
Termination	Solder	Solder

CONN RCPT FMALE 7POS GOLD SOLDER

Part	Number of Positions	Fastening Type	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Orientation	Shielding	Termination	Shell Finish	Primary Material	Ingress Protection	Insert Material	Color	Current Rating (Amps)	Shell Size - Insert	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Mounting Type	Contact Finish - Mating	Shell Material
LEMO EZG.0B.307.CLN	7	Push-Pull	Receptacle, Female Sockets	-55 °C	250 °C	Bronze	G	Shielded	Solder	Chrome	Metal	IP50	Polyetheretherketone (PEEK)	Silver	2.5 A	307	59 Áin	1.5 Ám	UL94 V-0	Through Hole	Gold	Brass
LEMO EZG.0B.306.CLN	6	Push-Pull	Receptacle, Female Sockets	-55 °C	250 °C	Bronze	G	Shielded	Solder	Chrome	Metal	IP50	Polyetheretherketone (PEEK)	Silver	2.5 A	306	59 Áin	1.5 Ám	UL94 V-0	Through Hole	Gold	Brass
LEMO EZG.0B.309.CLN	9	Push-Pull	Receptacle, Female Sockets	-55 °C	250 °C	Bronze	G	Shielded	Solder	Chrome	Metal	IP50	Polyetheretherketone (PEEK)	Silver	2 A	309	59 Áin	1.5 Ám	UL94 V-0	Through Hole	Gold	Brass
LEMO EZG.0B.303.CLN		Push-Pull	Receptacle, Female Sockets	-55 °C	250 °C	Bronze	G	Shielded	Solder	Chrome	Metal	IP50	Polyetheretherketone (PEEK)	Silver	8 A	303	59 Áin	1.5 Ám	UL94 V-0	Through Hole	Gold	Brass
