RL875S-122K-RC

Active

Bourns Inc.

FIXED IND 1.2MH 210MA 3.9 OHM TH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RL875S-122K-RC

Active

Bourns Inc.

FIXED IND 1.2MH 210MA 3.9 OHM TH

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RL875S-122K-RC

Current Rating (Amps)	0.21 A
DC Resistance (DCR) [Max]	3.9 Ohm
Frequency - Self Resonant	1.5 MHz
Height - Seated (Max) [Max] [z]	0.295 in
Height - Seated (Max) [Max] [z]	7.5 mm
Inductance	1.2 mH
Material - Core	Ferrite
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Vertical Cylinder
Q @ Freq	252 kHz, 110
Shielding	Shielded
Size / Dimension [diameter]	7.8 mm
Size / Dimension [diameter]	0.307 in
Tolerance	10 %
Type	Wirewound, Drum Core

RL875S Series

Part	DC Resistance (DCR) [Max]	Tolerance	Material - Core	Size / Dimension [diameter]	Size / Dimension [diameter]	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Q @ Freq	Frequency - Self Resonant	Type	Mounting Type	Current Rating (Amps)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Inductance	Shielding	Inductance Frequency - Test	Q @ Freq [custom]	Q @ Freq [custom]	DC Resistance (DCR)
Bourns Inc. RL875S-822K-RC	30.6 Ohm	10 %	Ferrite	7.8 mm	0.307 in	Radial Vertical Cylinder	-40 °C	105 ░C	85 252 kHz	500 kHz	Drum Core Wirewound	Through Hole	81 mA	0.295 in	7.5 mm	8.2 mH	Shielded
Bourns Inc. RL875S-100L-RC		15 %	Ferrite	7.8 mm	0.307 in	Radial Vertical Cylinder	-40 °C	105 ░C	2.52 MHz 60	25 MHz	Drum Core Wirewound	Through Hole	2.4 A	0.295 in	7.5 mm	10 µH	Shielded	2.52 MHz
Bourns Inc. RL875S-681K-RC	2.07 Ohm	10 %	Ferrite	7.8 mm	0.307 in	Radial Vertical Cylinder	-40 °C	105 ░C		2 MHz	Drum Core Wirewound	Through Hole	0.28 A	0.295 in	7.5 mm	680 µH	Shielded
Bourns Inc. RL875S-122K-RC	3.9 Ohm	10 %	Ferrite	7.8 mm	0.307 in	Radial Vertical Cylinder	-40 °C	105 ░C	110 252 kHz	1.5 MHz	Drum Core Wirewound	Through Hole	0.21 A	0.295 in	7.5 mm	1.2 mH	Shielded
Bourns Inc. RL875S-391K-RC	1.28 Ohm	10 %	Ferrite	7.8 mm	0.307 in	Radial Vertical Cylinder	-40 °C	105 ░C		3.5 MHz	Drum Core Wirewound	Through Hole	370 mA	0.295 in	7.5 mm	390 µH	Shielded		796 kHz	50
Bourns Inc. RL875S-562K-RC		10 %	Ferrite	7.8 mm	0.307 in	Radial Vertical Cylinder	-40 °C	105 ░C	95 252 kHz	1 MHz	Drum Core Wirewound	Through Hole	99 mA	0.295 in	7.5 mm	5.6 mH	Shielded				20.4 Ohm
Bourns Inc. RL875S-471K-RC	1.44 Ohm	10 %	Ferrite	7.8 mm	0.307 in	Radial Vertical Cylinder	-40 °C	105 ░C		2.5 MHz	Drum Core Wirewound	Through Hole	0.34 A	0.295 in	7.5 mm		Shielded
Bourns Inc. RL875S-472K-RC	14.7 Ohm	10 %	Ferrite	7.8 mm	0.307 in	Radial Vertical Cylinder	-40 °C	105 ░C	95 252 kHz	1 MHz	Drum Core Wirewound	Through Hole	110 mA	0.295 in	7.5 mm	4.7 mH	Shielded
Bourns Inc. RL875S-821K-RC	2.33 Ohm	10 %	Ferrite	7.8 mm	0.307 in	Radial Vertical Cylinder	-40 °C	105 ░C		2 MHz	Drum Core Wirewound	Through Hole	0.26 A	0.295 in	7.5 mm	820 µH	Shielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 1.63
		10	$ 1.39
		25	$ 1.28
		50	$ 1.14
		200	$ 0.95
		400	$ 0.92
		600	$ 0.87
		1000	$ 0.82
		2600	$ 0.79

Description

General part information

RL875S Series

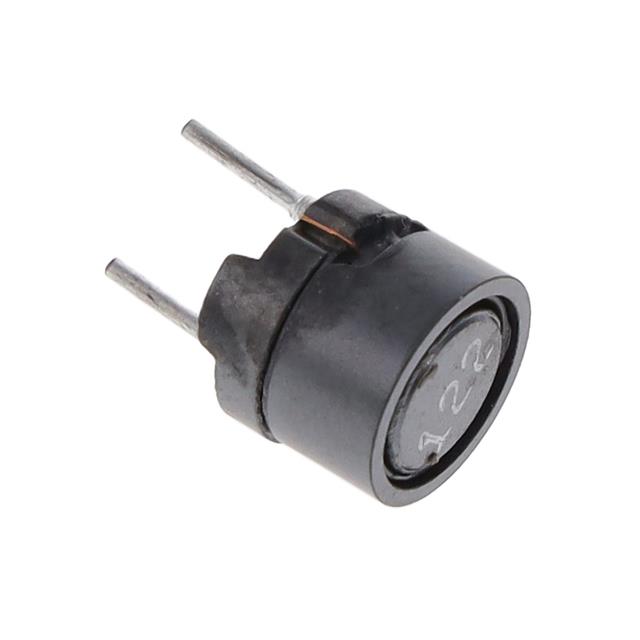

1.2 mH Shielded Drum Core, Wirewound Inductor 210 mA 3.9Ohm Max Radial, Vertical Cylinder
