725-055-525-101

Active

EDAC Inc.

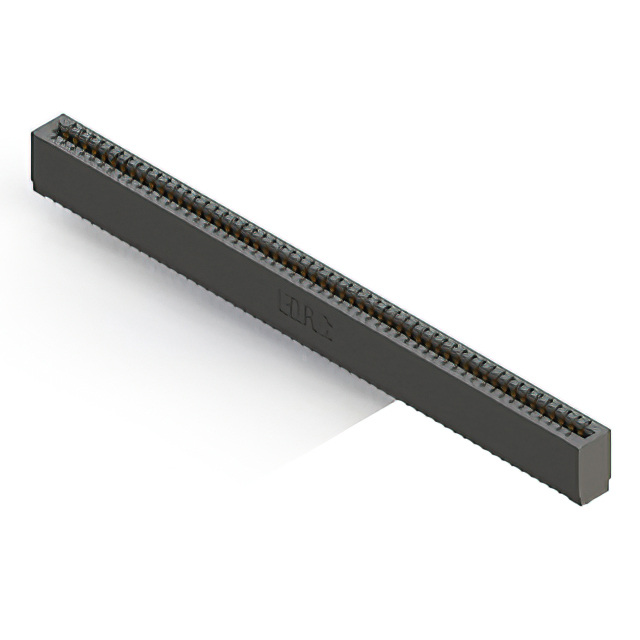

CARD EDGE CONNECTOR, 55 CONTACT(S), 1 ROW(S), FEMALE, STRAIGHT, 0.1 INCH PITCH, PRESS FIT TERMINAL,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

725-055-525-101

Active

EDAC Inc.

CARD EDGE CONNECTOR, 55 CONTACT(S), 1 ROW(S), FEMALE, STRAIGHT, 0.1 INCH PITCH, PRESS FIT TERMINAL,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	725-055-525-101

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Cantilever
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	55 positions
Number of Positions/Bay/Row [custom]	55
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Single
Termination	Press-Fit
Termination Rows	1

725-055 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Number of Positions/Bay/Row [custom]	Contact Type	Termination	Mounting Type	Card Type	Material - Insulation	Number of Rows	Read Out	Contact Material	Gender	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Color	Pitch [x]	Pitch [x]	Termination Rows	Number of Positions
EDAC Inc. 725-055-525-101	-40 °C	105 ░C	0.76 Ám	30 Áin	Gold	55	Cantilever	Press-Fit	Through Hole	Non Specified - Single Edge	Polyester Thermoplastic	1	Single	Copper Alloy	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	2.54 mm	0.1 in	1	55 positions
EDAC Inc. 725-055-545-101	-40 °C	105 ░C	0.76 Ám	30 Áin	Gold	55	Cantilever	Press-Fit Wire Wrap	Through Hole	Non Specified - Single Edge	Polyester Thermoplastic	1	Single	Copper Alloy	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	2.54 mm	0.1 in	1	55 positions
EDAC Inc. 725-055-541-101	-40 °C	105 ░C	0.76 Ám	30 Áin	Gold	55	Cantilever	Press-Fit Wire Wrap	Through Hole	Non Specified - Single Edge	Polyester Thermoplastic	1	Single	Copper Alloy	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	2.54 mm	0.1 in	1	55 positions
EDAC Inc. 725-055-540-101	-40 °C	105 ░C	0.76 Ám	30 Áin	Gold	55	Cantilever	Press-Fit Wire Wrap	Through Hole	Non Specified - Single Edge	Polyester Thermoplastic	1	Single	Copper Alloy	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	2.54 mm	0.1 in	1	55 positions
EDAC Inc. 725-055-520-101	-40 °C	105 ░C	0.76 Ám	30 Áin	Gold	55	Cantilever	Press-Fit	Through Hole	Non Specified - Single Edge	Polyester Thermoplastic	1	Single	Copper Alloy	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	2.54 mm	0.1 in	1	55 positions

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 12.84

Description

General part information

725-055 Series

55 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
