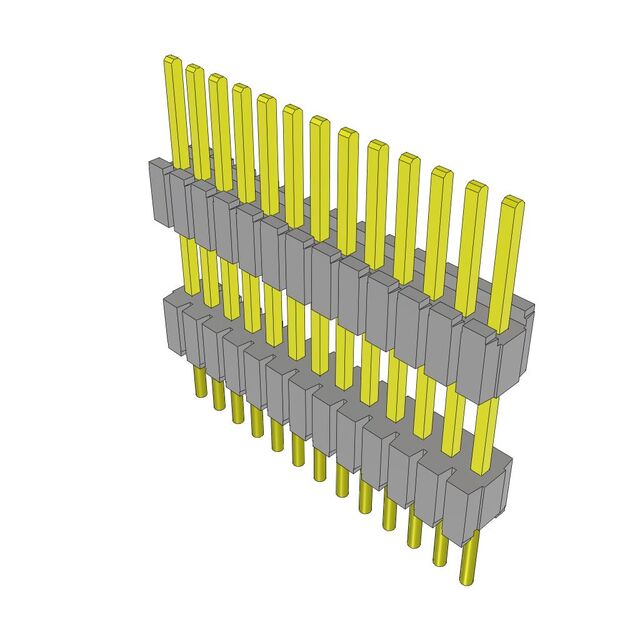

DWM-13-56-G-S-350

Active

Samtec Inc.

CONN BOARD STACKER HDR 13 POS 1.27MM SOLDER ST THRU-HOLE TUBE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DWM-13-56-G-S-350

Active

Samtec Inc.

CONN BOARD STACKER HDR 13 POS 1.27MM SOLDER ST THRU-HOLE TUBE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DWM-13-56-G-S-350

Color	Black
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	0.25 Ám
Contact Finish Thickness - Post (Mating)	10 Áin
Length - Overall Pin [x]	0.625 in
Length - Overall Pin [x]	15.875 mm
Length - Post (Mating) [x]	0.155 in
Length - Post (Mating) [x]	3.937 mm
Length - Stack Height [x]	8.89 mm
Length - Stack Height [x]	0.35 in
Length - Tail [x]	0.12 in
Length - Tail [x]	3.048 mm
Mounting Type	Through Hole
Number of Positions	13
Number of Rows	1
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Termination	Solder

DWM-13 Series

Part	Length - Stack Height [x]	Length - Stack Height [x]	Number of Rows	Termination	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Pitch [x]	Pitch [x]	Length - Tail [x]	Length - Tail [x]	Contact Finish - Post (Mating)	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Mounting Type	Length - Overall Pin [x]	Length - Overall Pin [x]	Number of Positions	Color	Length - Overall Pin	Length - Overall Pin	Row Spacing [x]	Row Spacing
Samtec Inc. DWM-13-54-G-S-319	8.103 mm	0.319 in	1	Solder	0.25 Ám	10 Áin	0.05 in	1.27 mm	0.12 in	3.048 mm	Gold	2.946 mm	0.116 in	Through Hole	0.555 in	14.097 mm	13	Black
Samtec Inc. DWM-13-01-G-S-250	6.35 mm	0.25 in	1	Solder	0.25 Ám	10 Áin	0.05 in	1.27 mm	0.12 in	3.048 mm	Gold			Through Hole			13	Black	0.45 in	11.43 mm
Samtec Inc. DWM-13-56-G-S-350	8.89 mm	0.35 in	1	Solder	0.25 Ám	10 Áin	0.05 in	1.27 mm	0.12 in	3.048 mm	Gold	3.937 mm	0.155 in	Through Hole	0.625 in	15.875 mm	13	Black
Samtec Inc. DWM-13-57-S-S-370			1	Solder	0.76 µm	30 µin	0.05 in	1.27 mm	0.12 in	3.048 mm	Gold	4.064 mm	0.16 in	Through Hole	0.65 in	16.51 mm	13	Black
Samtec Inc. DWM-13-61-L-D-750	19.05 mm	0.75 in	2	Solder	0.25 Ám	10 Áin	0.05 in	1.27 mm	0.12 in	3.048 mm	Gold	4.572 mm	0.18 in	Through Hole	1.05 in	26.67 mm	26	Black			0.1 in	2.54 mm
Samtec Inc. DWM-13-61-S-D-750	19.05 mm	0.75 in	2	Solder	0.76 µm	30 µin	0.05 in	1.27 mm	0.12 in	3.048 mm	Gold	4.572 mm	0.18 in	Through Hole	1.05 in	26.67 mm	26	Black			0.1 in	2.54 mm
Samtec Inc. DWM-13-57-G-S-445	11.303 mm	0.445 in	1	Solder	0.25 Ám	10 Áin	0.05 in	1.27 mm	0.12 in	3.048 mm	Gold	2.159 mm	0.085 in	Through Hole	0.65 in	16.51 mm	13	Black
Samtec Inc. DWM-13-58-S-D-465	11.811 mm	0.465 in	2	Solder	0.76 µm	30 µin	0.05 in	1.27 mm	0.12 in	3.048 mm	Gold	3.048 mm	0.12 in	Through Hole			26	Black	0.705 in	17.907 mm	0.1 in	2.54 mm
Samtec Inc. DWM-13-54-G-S-315	8 mm	0.315 in	1	Solder	0.25 Ám	10 Áin	0.05 in	1.27 mm	0.12 in	3.048 mm	Gold	3.048 mm	0.12 in	Through Hole	0.555 in	14.097 mm	13	Black
Samtec Inc. DWM-13-61-G-S-500	12.7 mm	0.5 in	1	Solder	0.25 Ám	10 Áin	0.05 in	1.27 mm	0.12 in	3.048 mm	Gold	10.922 mm	0.43 in	Through Hole	1.05 in	26.67 mm	13	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 3.99
		50	$ 3.26
		100	$ 2.77
Digikey	Tube	35	$ 3.31

Description

General part information

DWM-13 Series

13 Position Header Spacer Connector 0.050" (1.27mm) Gold Through Hole
