EMPCB.SMAMSTP.NI

Active

TAOGLAS

RF / COAXIAL CONNECTOR, SMA COAXIAL, STRAIGHT PLUG, SOLDER, 50 OHM

Search across all available documentation for this part.

Active

TAOGLAS

RF / COAXIAL CONNECTOR, SMA COAXIAL, STRAIGHT PLUG, SOLDER, 50 OHM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

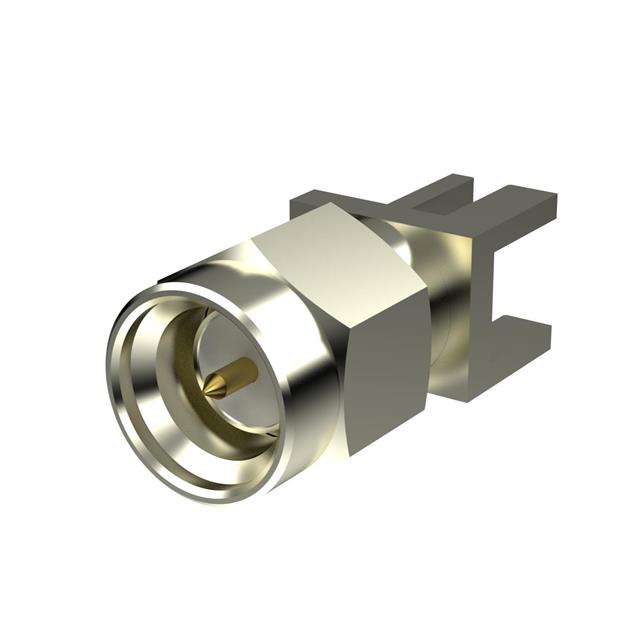

SMA Connector Plug, Male Pin Board Edge, End Launch Solder

Technical documentation and resources

Specification	EMPCB.SMAMSTP.NI	EMPCB Series

Body Finish	Nickel	Nickel, Gold
Center Contact Plating	Gold	Gold
Connector Style	SMA	SMA
Connector Type	Male Pin, Plug	Male Pin, Plug, Female Socket, Jack
Contact Termination	Solder	Solder
Housing Color	Silver	Silver, Gold
Mounting Type	Board Edge, End Launch	Board Edge, End Launch
Number of Ports	1	1
Shield Termination	Solder	Solder

Part	Connector Style	Housing Color	Center Contact Plating	Mounting Type	Number of Ports	Body Finish	Contact Termination	Connector Type	Shield Termination
TAOGLAS EMPCB.SMAMSTP.A.NI	SMA	Silver	Gold	Board Edge, End Launch	1	Nickel	Solder	Male Pin, Plug	Solder
TAOGLAS EMPCB.SMAMSTP.NI	SMA	Silver	Gold	Board Edge, End Launch	1	Nickel	Solder	Male Pin, Plug	Solder
TAOGLAS EMPCB.SMAFSTJ.F.HT	SMA	Gold	Gold	Board Edge, End Launch	1	Gold	Solder	Female Socket, Jack	Solder
TAOGLAS EMPCB.CSMAFSTJ.A	SMA	Gold	Gold	Board Edge, End Launch	1	Gold	Solder	Female Socket, Jack	Solder
TAOGLAS EMPCB.SMAMST.A	SMA	Gold	Gold	Board Edge, End Launch	1	Gold	Solder	Male Pin, Plug	Solder
TAOGLAS EMPCB.CSMAFSTJ.NI	SMA	Silver	Gold	Board Edge, End Launch	1	Nickel	Solder	Female Socket, Jack	Solder
