516-280-300

Active

EDAC Inc.

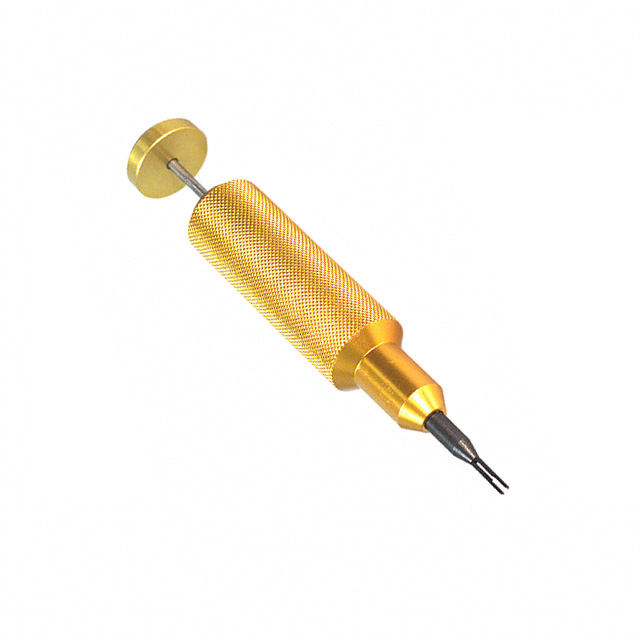

EXTRACTION TOOL RACK & PANEL

Search across all available documentation for this part.

Active

EDAC Inc.

EXTRACTION TOOL RACK & PANEL

Technical Specifications

Parameters and characteristics for this part

Specification	516-280-300

For Use With/Related Products	Rack and Panel Connectors
Tool Type	Extraction Tool

Part	Accessory Type	For Use With/Related Products	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Tool Type	Tool Method
EDAC Inc. 516-280-206	Locator
EDAC Inc. 516-280-750G		Backplane Contacts	18 AWG	28 AWG	Applicator for Bench Press	Automated
EDAC Inc. 516-280-400		Rack and Panel Connectors			Insertion Tool
EDAC Inc. 516-280-750K		Backplane Contacts			Applicator for Bench Press	Automated
EDAC Inc. 516-280-300		Rack and Panel Connectors			Extraction Tool
EDAC Inc. 516-280-700K		Backplane Contacts			Applicator for Bench Press	Automated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Extraction Tool For Rack and Panel Connectors
