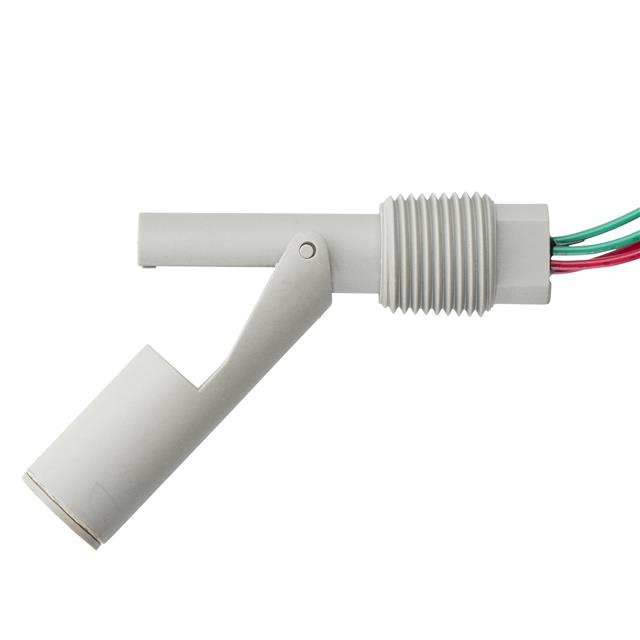

TSF86Y100D

Active

Sensata Technologies

SENSOR LEVEL SWITCH SINGLE FLOAT

Search across all available documentation for this part.

Active

Sensata Technologies

SENSOR LEVEL SWITCH SINGLE FLOAT

Technical Specifications

Parameters and characteristics for this part

Specification	TSF86Y100D

Current	600 mA
Material - Housing & Prism	Polyphenylene Sulphide (PPS)
Minimum Liquid Specific Gravity [Min]	0.85
Mounting Type	Male 1/2" (12.7mm) NPT
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-10 °C
Output Configuration	SPST-NC/NO
Switch Actuation Level	24 mm, 0.354 in, 9 mm, 0.945 "
Type	Liquid, Temperature
Voltage Rating	120 VDC, 240 VAC

SENSOR LEVEL SWITCH SINGLE FLOAT

Part	Current	Voltage Rating	Switch Actuation Level	Mounting Type	Material - Housing & Prism	Minimum Liquid Specific Gravity [Min]	Type	Output Configuration	Operating Temperature [Min]	Operating Temperature [Max]
Sensata Technologies TSF86Y100D	600 mA	120 VDC, 240 VAC	0.354 in, 0.945 ", 9 mm, 24 mm	Male 1/2" (12.7mm) NPT	Polyphenylene Sulphide (PPS)	0.85	Liquid, Temperature	SPST-NC/NO	-10 °C	120 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 37.17

General part information

Liquid, Temperature Level Sensor Switch (Single Float) SPST-NC/NO Output Male 1/2" (12.7mm) NPT

Technical documentation and resources

No documents available
