132203RP
ActiveAmphenol RF

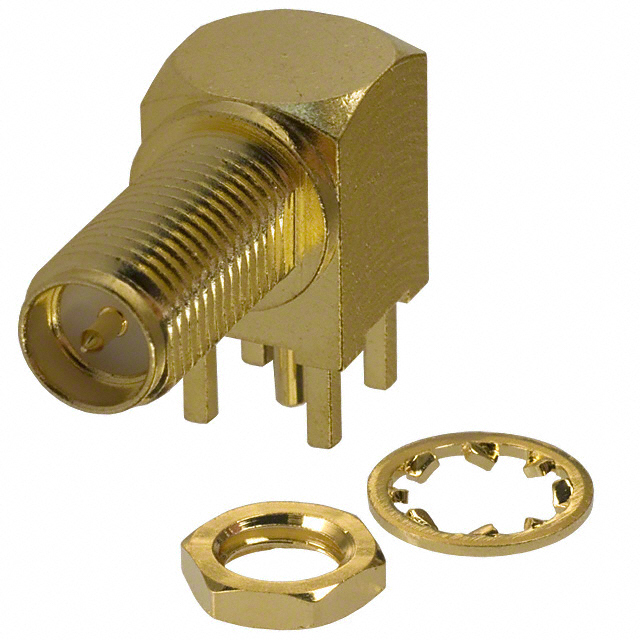

CONN RP-SMA JACK R/A 50 OHM PCB
Deep-Dive with AI
Search across all available documentation for this part.
132203RP
ActiveAmphenol RF
CONN RP-SMA JACK R/A 50 OHM PCB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 132203RP |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | RP-SMA |
| Connector Type | Male Pin, Jack |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 12.4 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Includes | 1 Nut, 1 Connector, 1 Lockwasher |
| Mating Cycles | 500 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Right Angle, Panel Mount |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Solder |
| Voltage Rating | 375 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.41 | |
| 10 | $ 8.47 | |||
| 25 | $ 7.98 | |||
| 50 | $ 7.77 | |||
| 100 | $ 7.57 | |||
| 300 | $ 6.75 | |||
| 500 | $ 6.34 | |||
| 1000 | $ 5.60 | |||
Description
General part information
132203 Series
RP-SMA Connector Jack, Male Pin 50 Ohms Panel Mount, Through Hole, Right Angle Solder
